Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (4) that retains the front side marker lamp to the radiator grille.
  2. Lift the side marker lamp (3) up and out in order to disengage the tab.
  3. Disconnect the bulb socket (1) from the side marker lamp.
  4. Remove the bulb (1) from the socket.

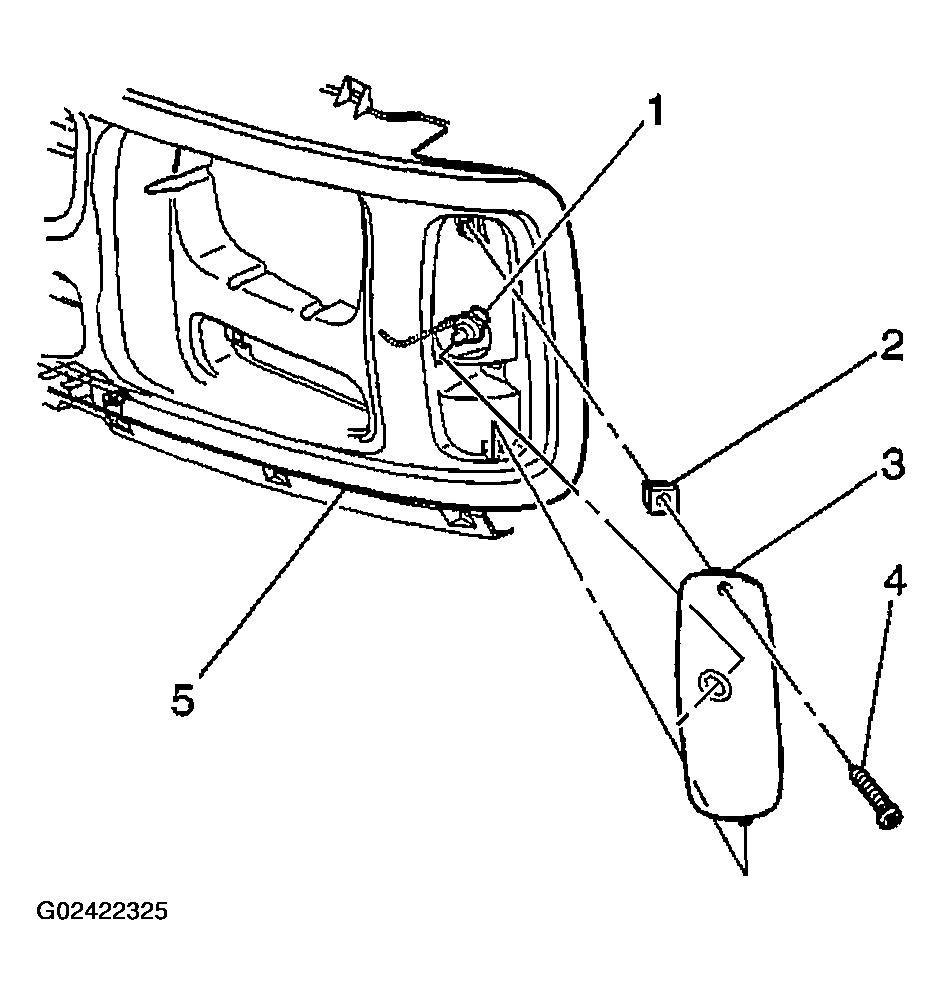

    Fig 1: Removing Front Side Marker Lamp (RPO Code T90, Export)
    G02422325Courtesy of GENERAL MOTORS CORP.
