Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the headlamp switch.
  2. Remove the retaining ring screws from the headlamp.

    Do not move the adjustment screws.

  3. Remove the retaining ring from the headlamp.
  4. Remove the headlamp from the housing.
  5. Disconnect the electrical connector from the headlamp.

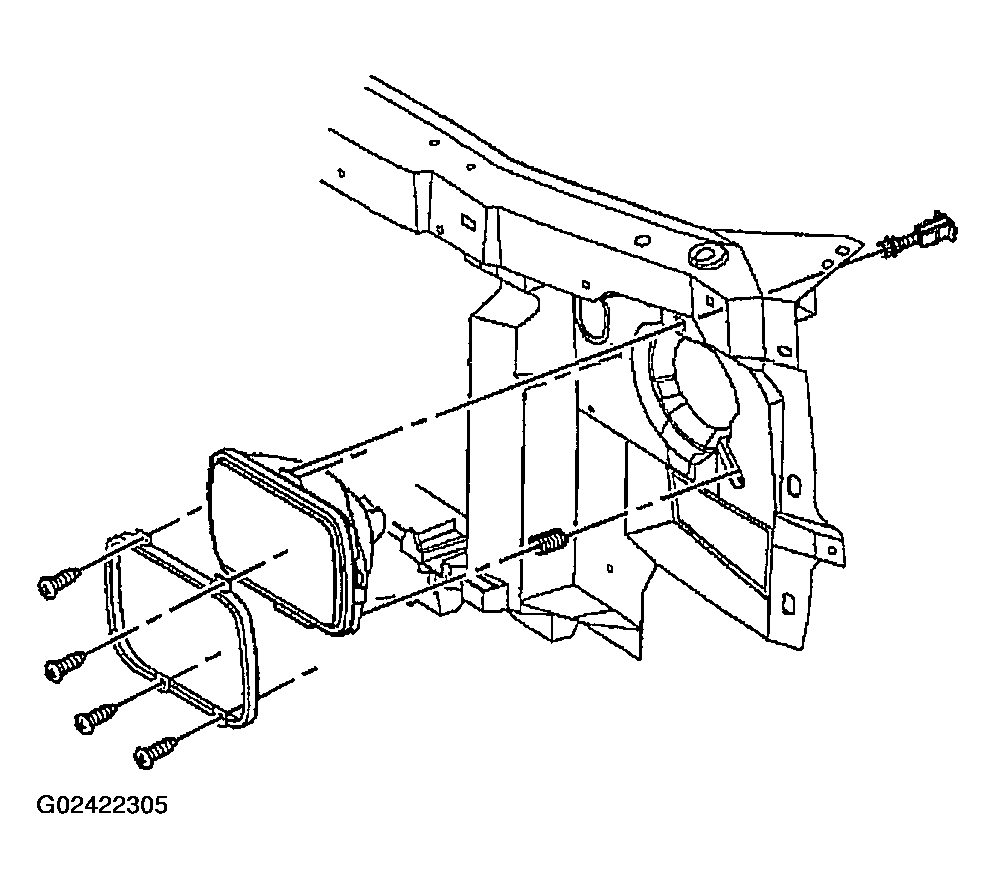

    Fig 1: Removing Headlamp (Sealed Beam)
    G02422305Courtesy of GENERAL MOTORS CORP.
