Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the headlamp.
  2. Install the headlamp to the housing.
  3. Install the retaining ring to the headlamp.
  4. Install the screws to the retaining ring.

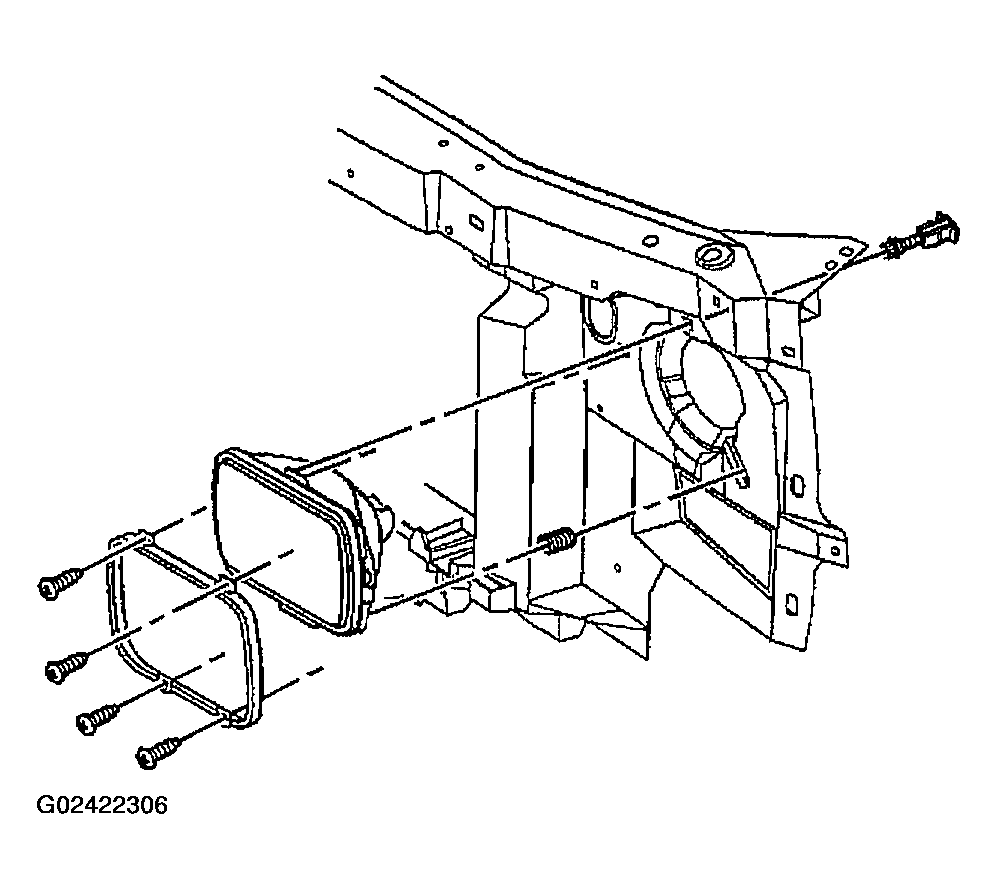

    Fig 1: Installing Headlamp (Sealed Beam)
    G02422306Courtesy of GENERAL MOTORS CORP.
