Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the turn / hazard Flasher (2).
  2. Install the turn / hazard flasher (2) to the Instrument Panel (I/P) Support.
  3. Install the left knee bolster bracket. Refer to KNEE BOLSTER BRACKET REPLACEMENT - LEFT .

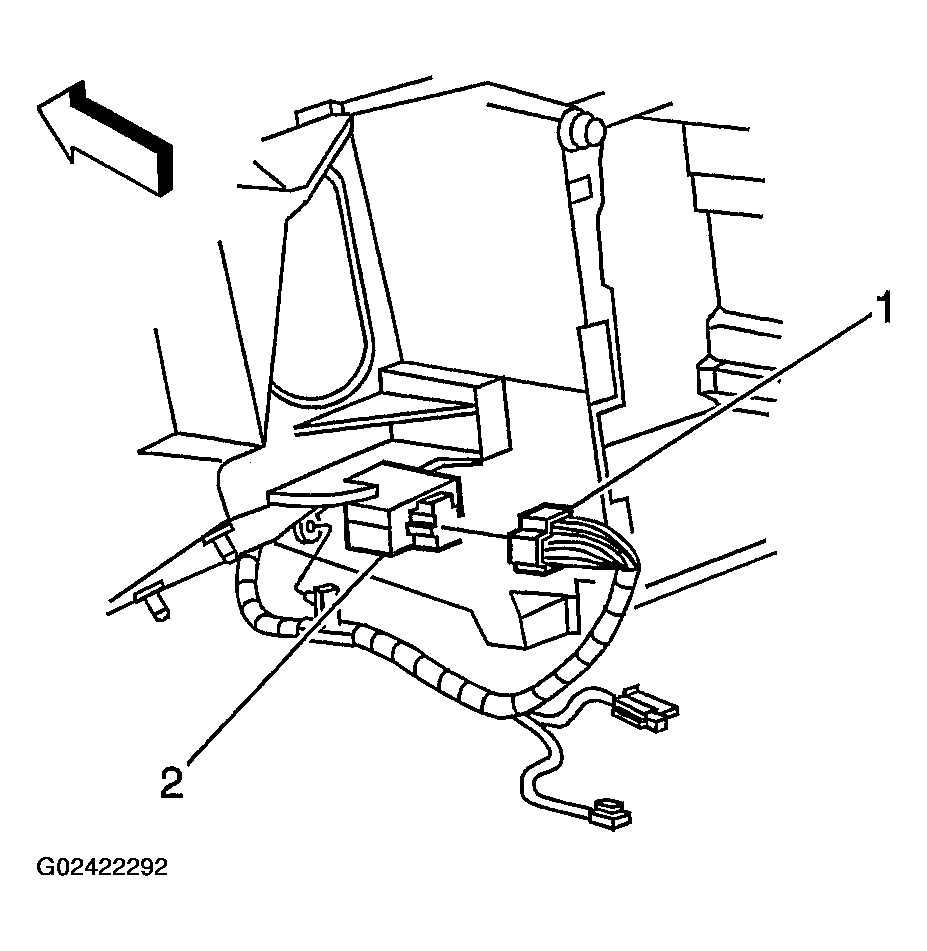

    Fig 1: Installing Hazard & Turn Signal Flasher
    G02422292Courtesy of GENERAL MOTORS CORP.
