Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: Avoid excessive force when prying the bezel from the instrument panel extension.

Pry the bezel from the instrument panel extension using a flat-bladed tool.
Remove the electrical connector from the rear fog lamp switch.

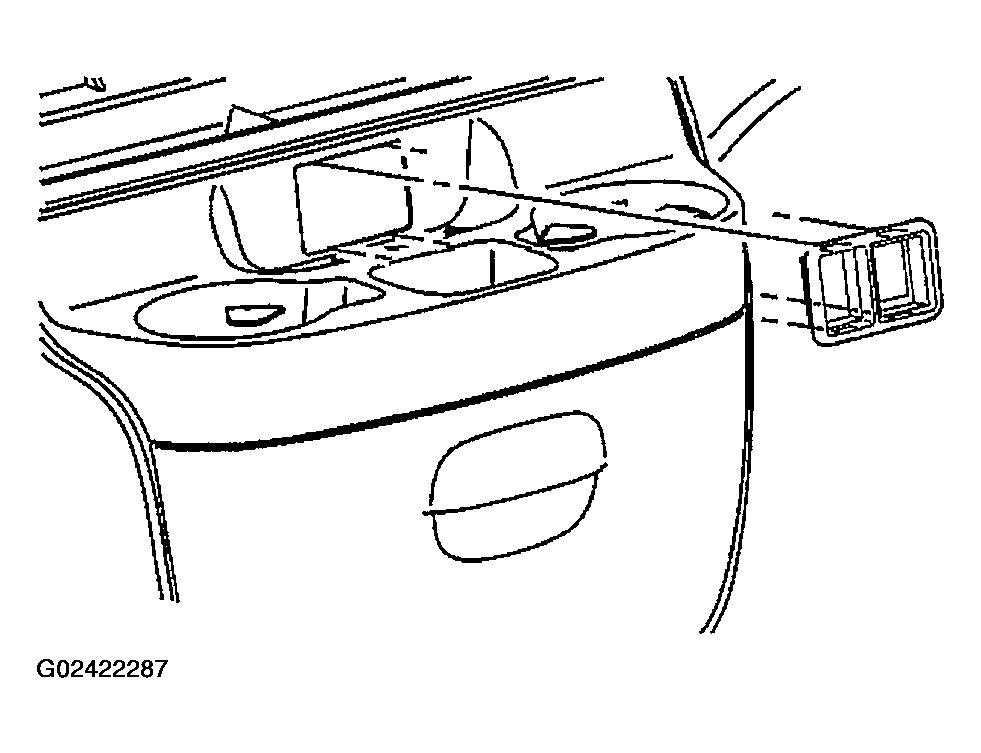

Fig 1: Removing Bezel From Instrument Panel Extension
Courtesy of GENERAL MOTORS CORP.
Press the tabs on the rear fog lamp switch in order to disengage the tabs from the bezel.
Remove the rear fog lamp switch from the vehicle.

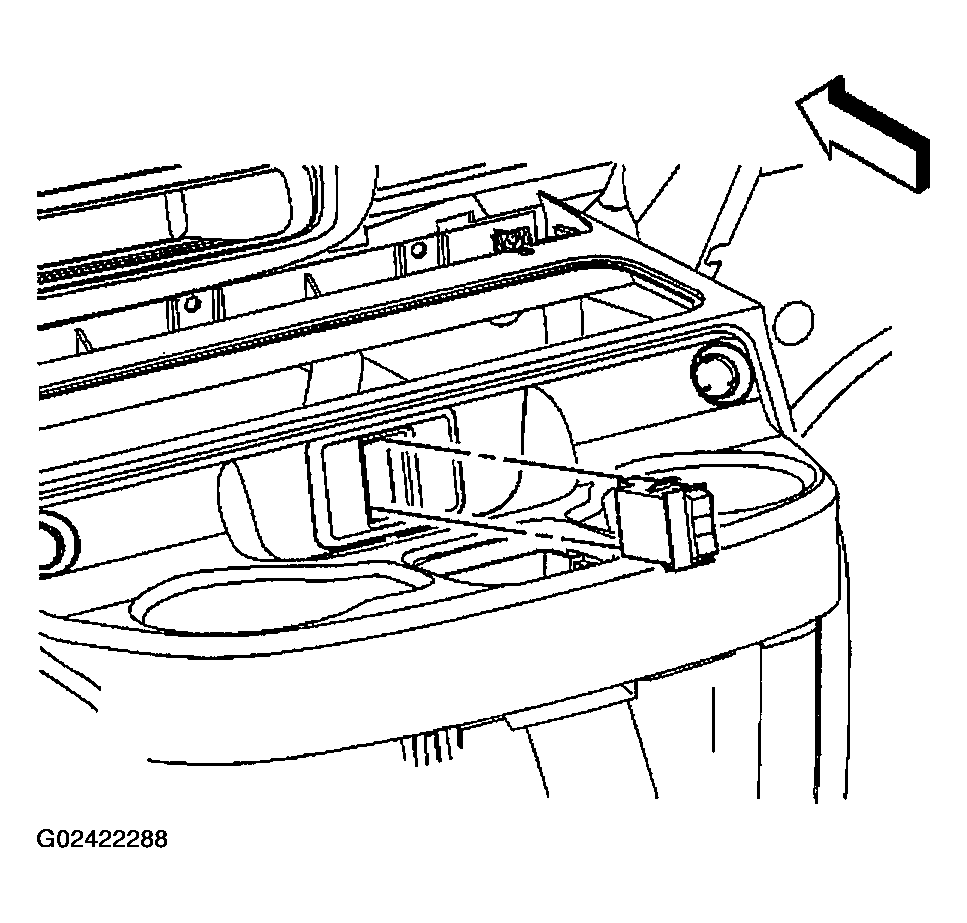

Fig 2: Removing Rear Fog Lamp Switch
Courtesy of GENERAL MOTORS CORP.
