Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lamp assembly to the bumper.

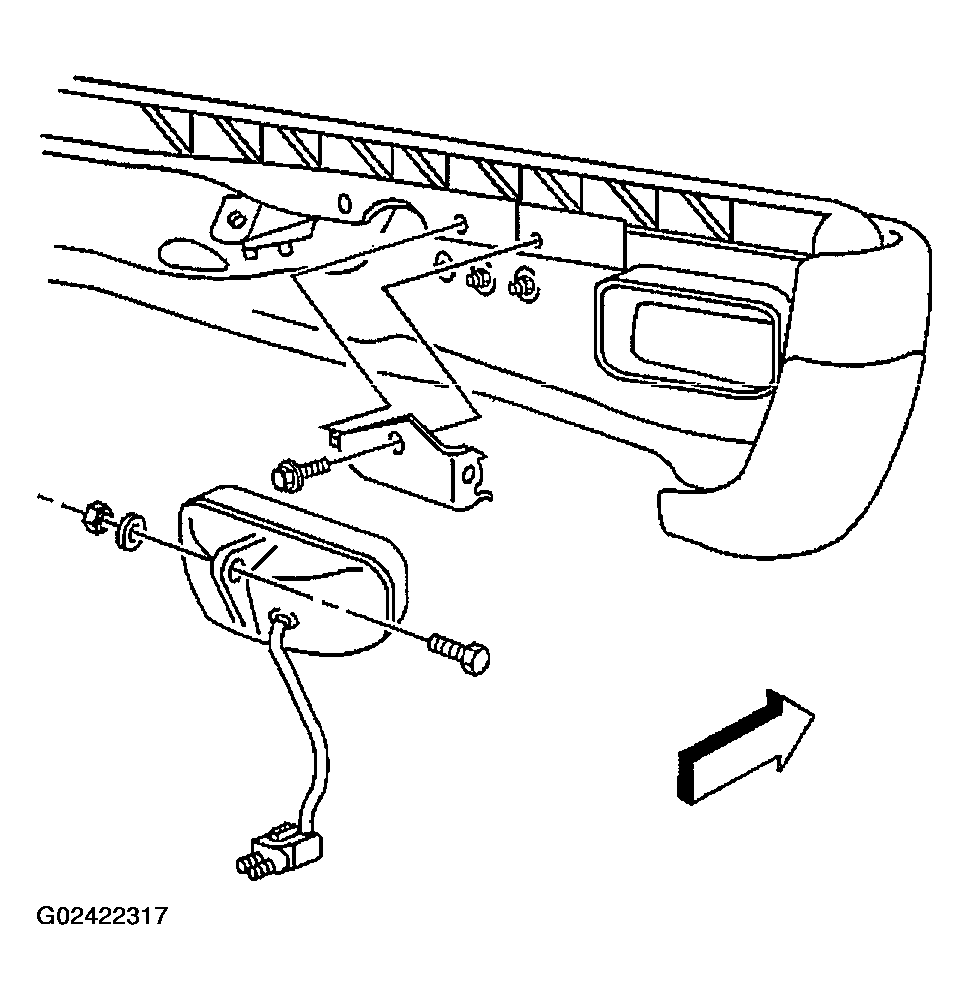

    Fig 1: Installing Fog Lamp Assembly
    G02422317Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nut to retain the lamp assembly to the bracket.

    Tighten

    Tighten the nut to 2 N.m (18 in lb).

  3. Install the electrical connector to the lamp assembly.
    Fig 2: Installing Fog Lamp Assembly Nut & Connector
    G02422318Courtesy of GENERAL MOTORS CORP.
