Interior Backlighting Inoperative

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

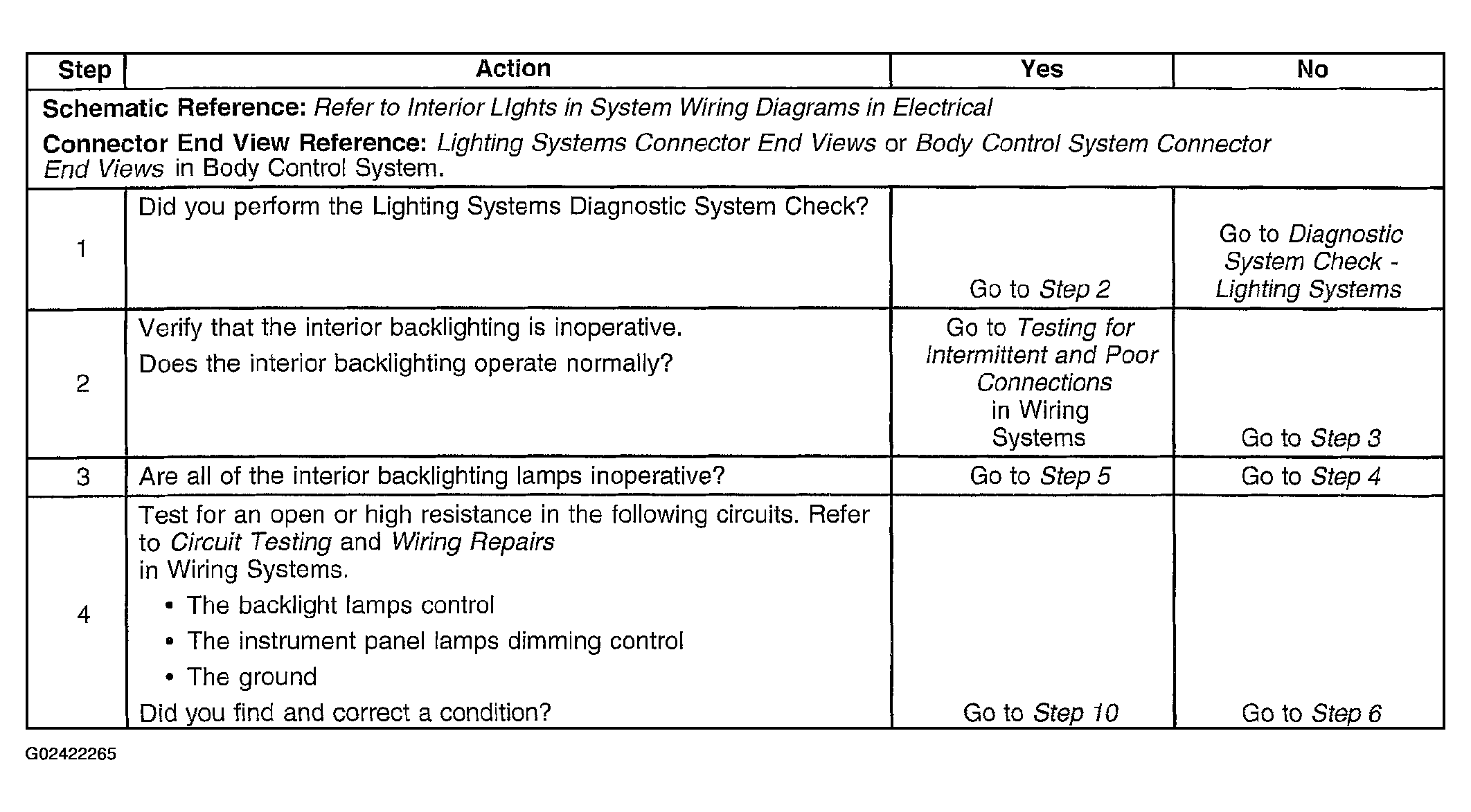

Fig 1: Interior Backlighting Inoperative (1 Of 2)
G02422265Courtesy of GENERAL MOTORS CORP.

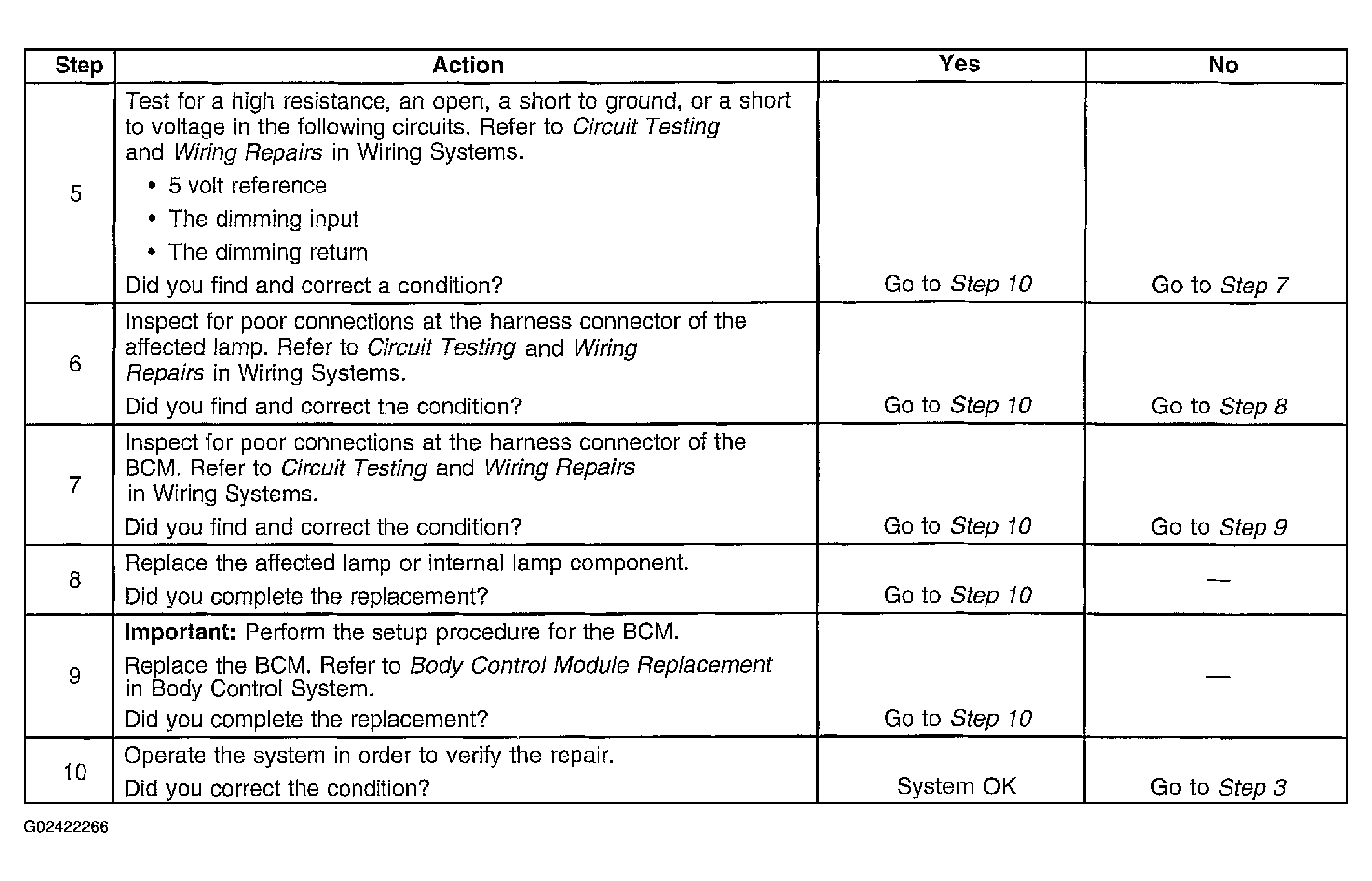

Fig 2: Interior Backlighting Inoperative (2 Of 2)
G02422266Courtesy of GENERAL MOTORS CORP.
