Special Tools and Equipment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

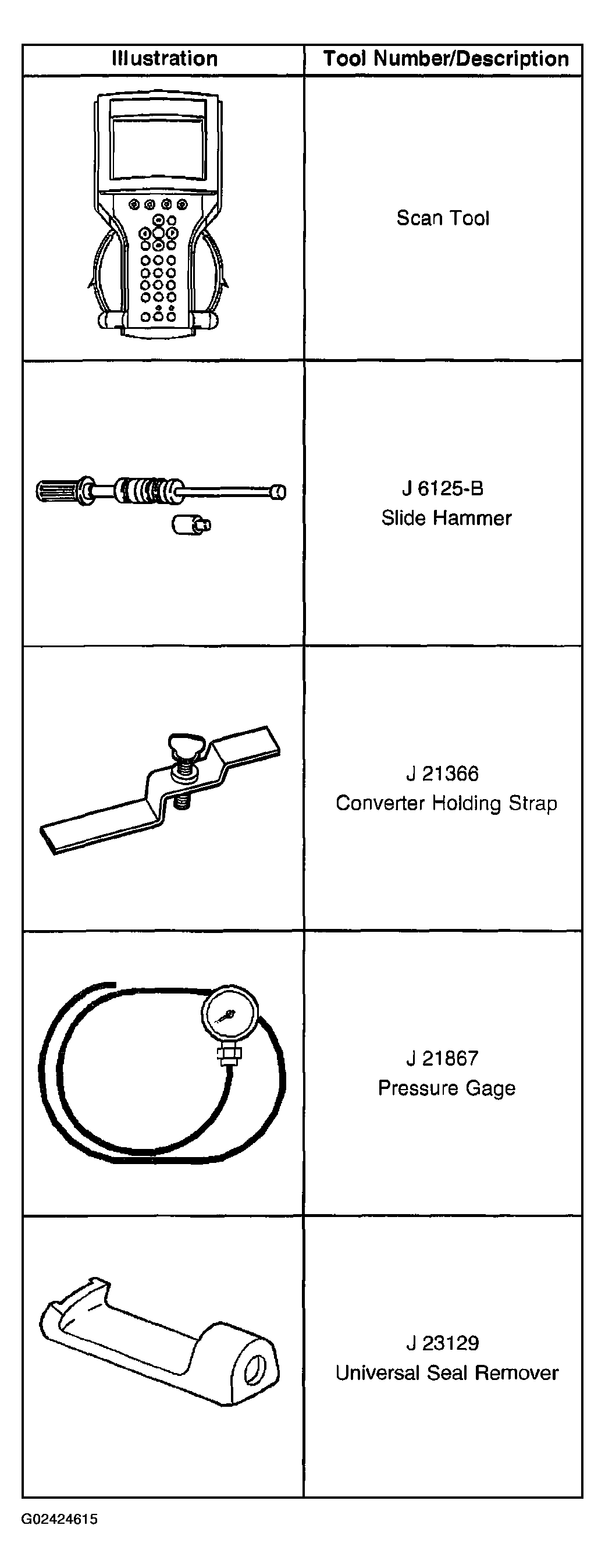

Fig 1: Scan Tool & Special Tools J 6125-B To J 23129

Courtesy of GENERAL MOTORS CORP.

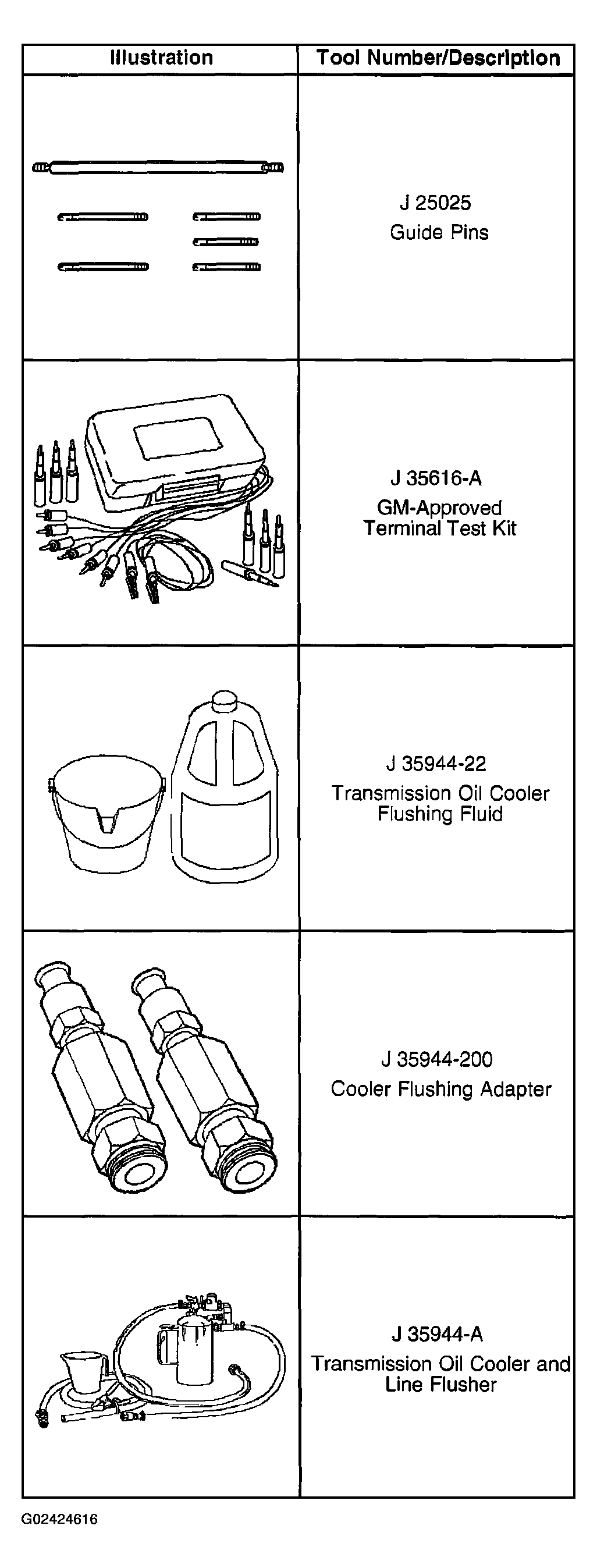

Fig 2: Special Tools J 25025 To J 35944-A

Courtesy of GENERAL MOTORS CORP.

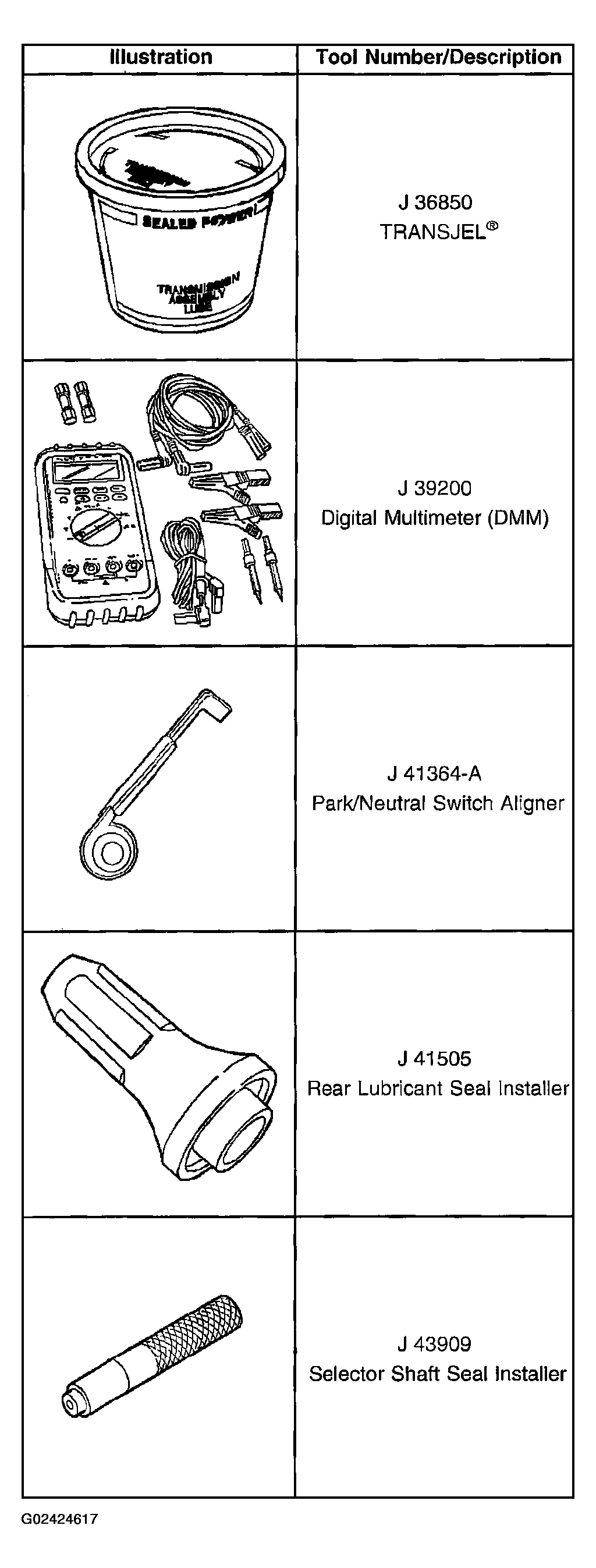

Fig 3: Special Tools J 36850 To J 43909

Courtesy of GENERAL MOTORS CORP.

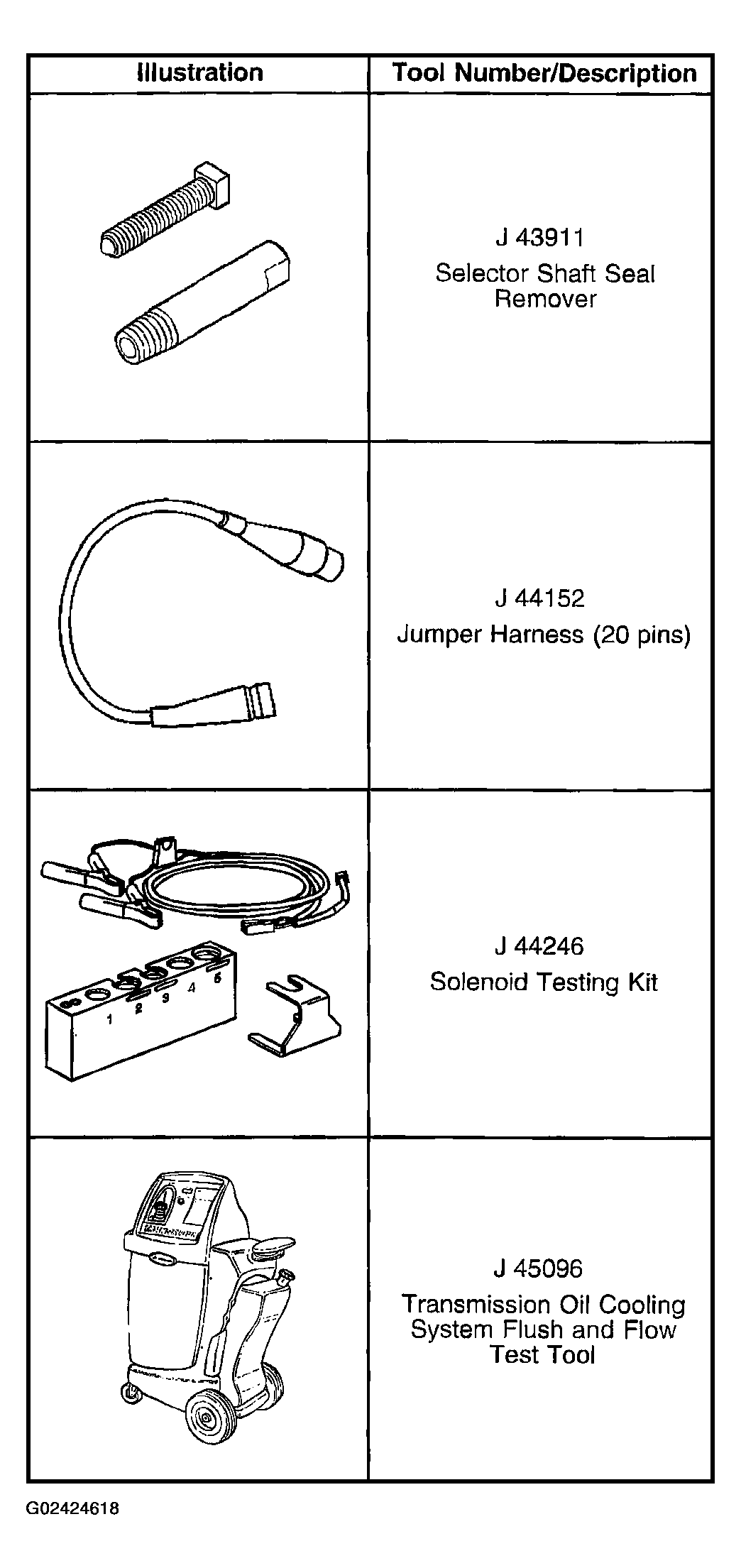

Fig 4: Special Tools J 43911 To J 45096

Courtesy of GENERAL MOTORS CORP.
