Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.

    Important:  This procedure is for 2WD vehicles. If the vehicle is equipped with 4WD, the output speed sensor is located on the transfer case.

  2. Disconnect the output speed sensor (2) electrical connector.
  3. Remove the output speed sensor bolt.
  4. Remove the output speed sensor (2) and the bracket assembly from the case.
  5. Inspect the output speed sensor assembly (2) for any evidence of damage.

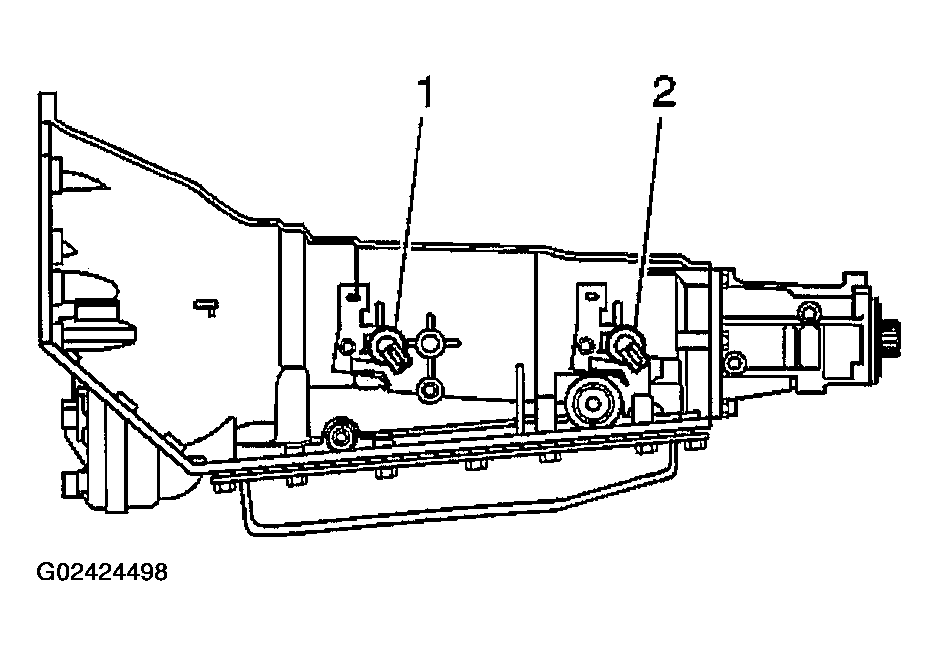

    Fig 1: Removing Output Speed Sensor
    G02424498Courtesy of GENERAL MOTORS CORP.
