Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the output speed sensor seal with automatic transmission fluid.
  2. Install the output speed sensor (2) and the bracket assembly.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

  4. Connect the output speed sensor electrical connector.
  5. Lower the vehicle.

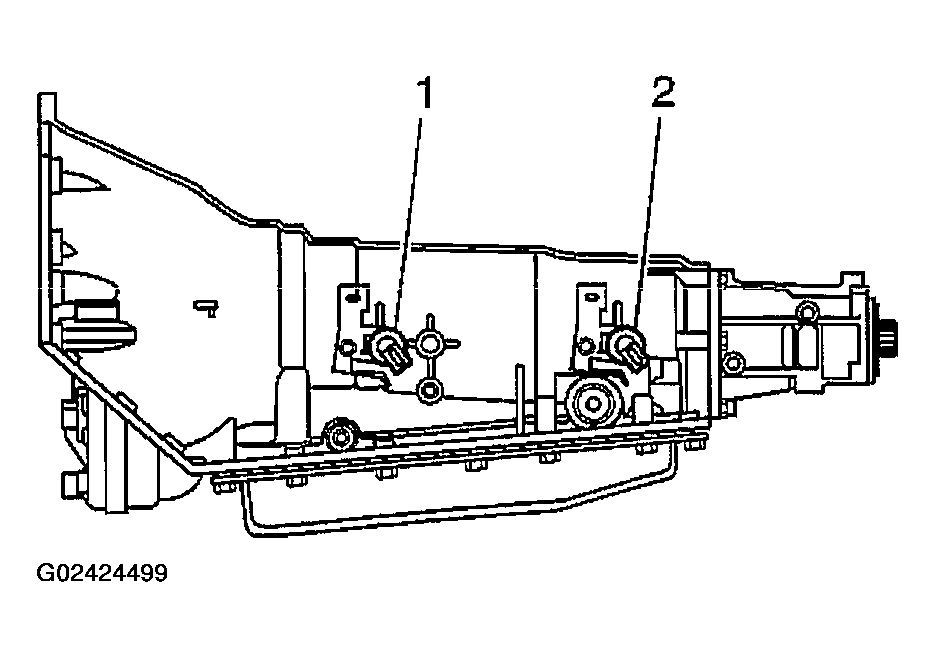

    Fig 1: Installing Output Speed Sensor
    G02424499Courtesy of GENERAL MOTORS CORP.
