Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Disconnect the input speed sensor (1) electrical connector.
  3. Remove the input speed sensor bolt.
  4. Remove the input speed sensor (1) and the bracket assembly from the case.
  5. Inspect the vehicle speed sensor assembly (1) for any evidence of damage.

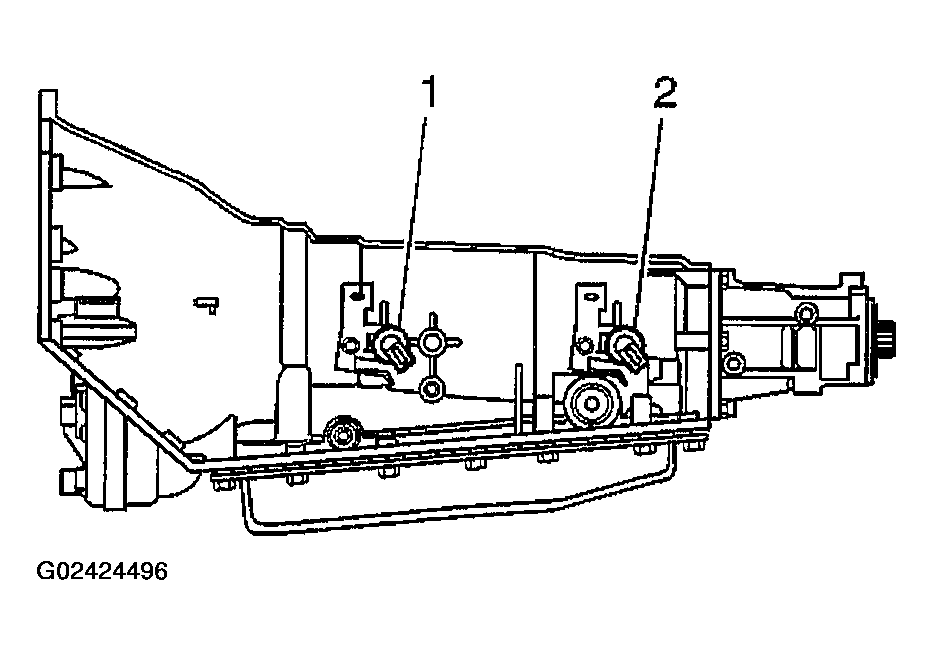

    Fig 1: Removing Input Speed Sensor
    G02424496Courtesy of GENERAL MOTORS CORP.
