Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the input speed sensor seal with automatic transmission fluid.
  2. Install the input speed sensor (1) and the bracket assembly.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

  4. Connect the input speed sensor electrical connector.
  5. Lower the vehicle.

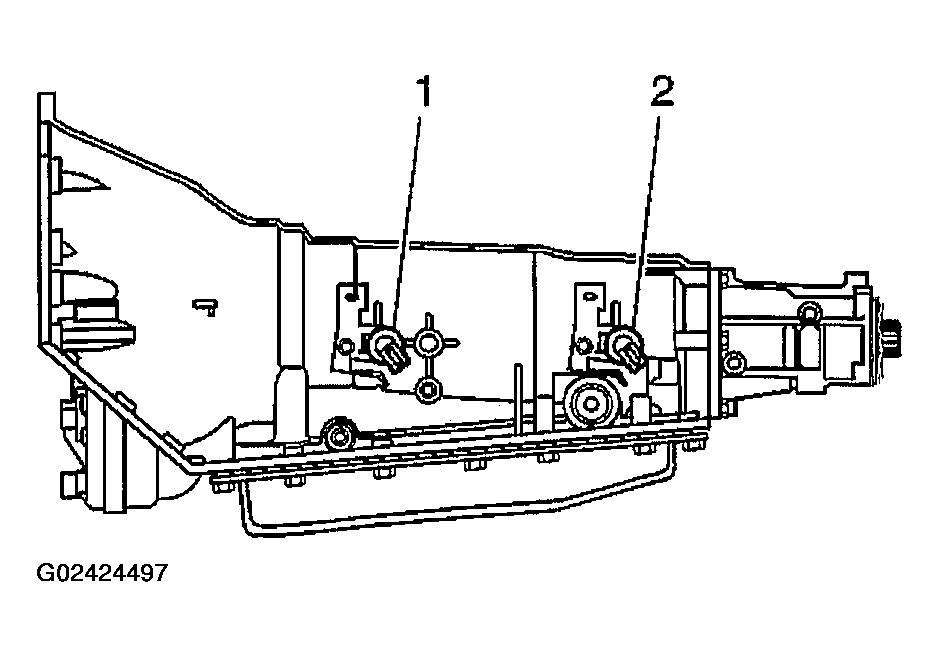

    Fig 1: Installing Input Speed Sensor
    G02424497Courtesy of GENERAL MOTORS CORP.
