Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the transmission with a transmission jack.
  2. Raise the transmission into place.
  3. Slide the transmission straight onto the locating pins while lining up the marks on the flywheel and the torque converter.

    Important:

    • The torque converter must rotate freely by hand.
    • Do not install the transmission fluid fill tube.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the bolts that secure the transmission to the engine.

    Tighten

    Tighten the studs and the bolts to 47 N.m (34 lb ft).

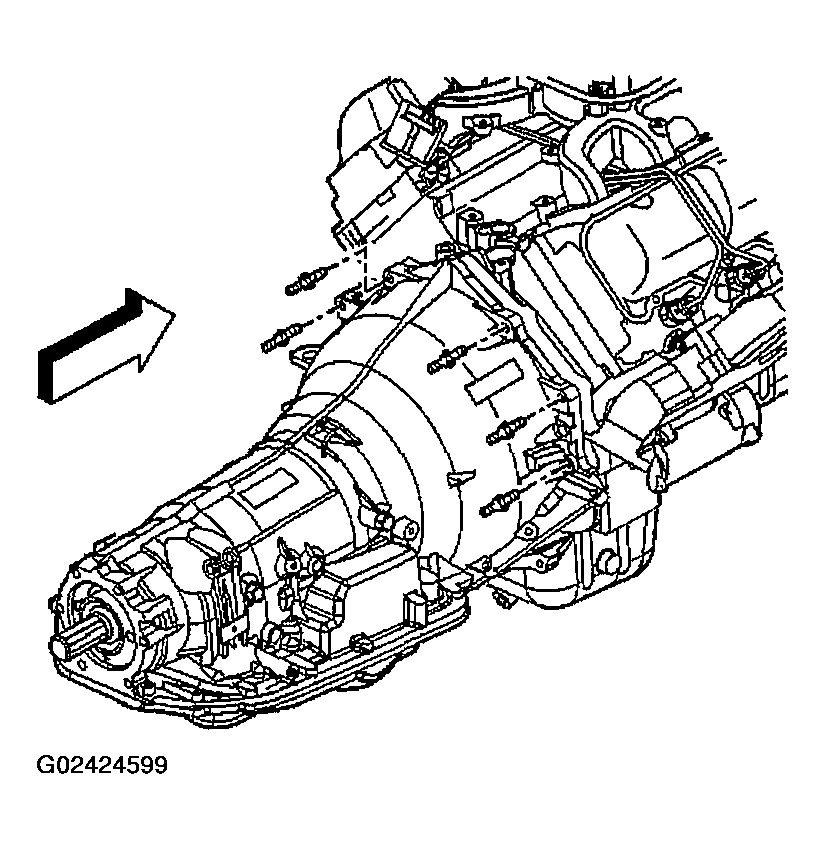

    Fig 1: Installing Transmission Studs & Bolts
    G02424599Courtesy of GENERAL MOTORS CORP.
  5. Install the bolts securing the torque converter to the engine flywheel.

    Tighten

    1. First tighten all the bolts finger tight in order to insure proper converter seating.
    2. Tighten the bolts to 63 N.m (46 lb ft).
  6. If equipped with All Wheel Drive (AWD), install the transfer case. Refer to TRANSFER CASE .

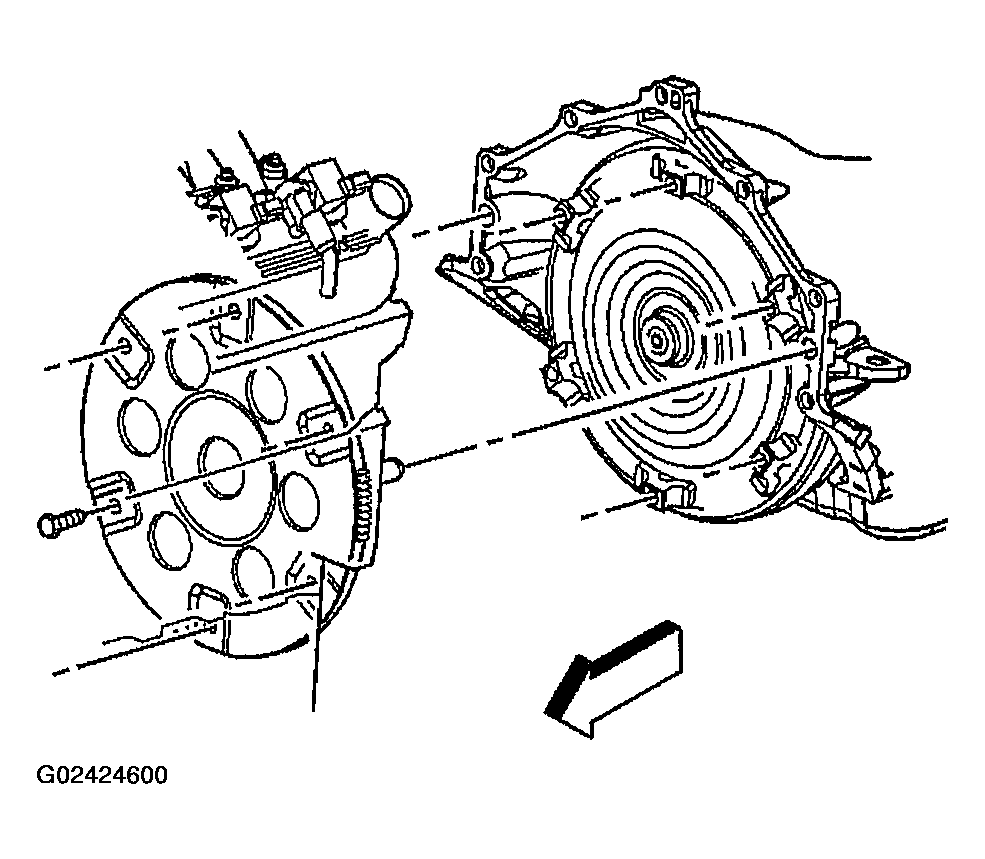

    Fig 2: Installing Torque Converter To Engine Flywheel Bolts
    G02424600Courtesy of GENERAL MOTORS CORP.
  7. Install the wiring harness connectors to the vehicle speed sensor and the park neutral position switch.
  8. Position and install all vehicle harness wires, harness clips, tubes, brackets, and lines that were removed or moved prior to the transmission removal.
  9. Remove the two plugs from the transmission case cooling line connectors.
  10. Install the transmission oil cooler pipes. Refer to Transmission Fluid Cooler Hose/Pipe Replacement .
  11. Install the transmission fluid fill tube and the fill tube seal. Refer to Filler Tube and Seal Replacement .
  12. Install the transmission vent hose and the wiring harness to the transmission.

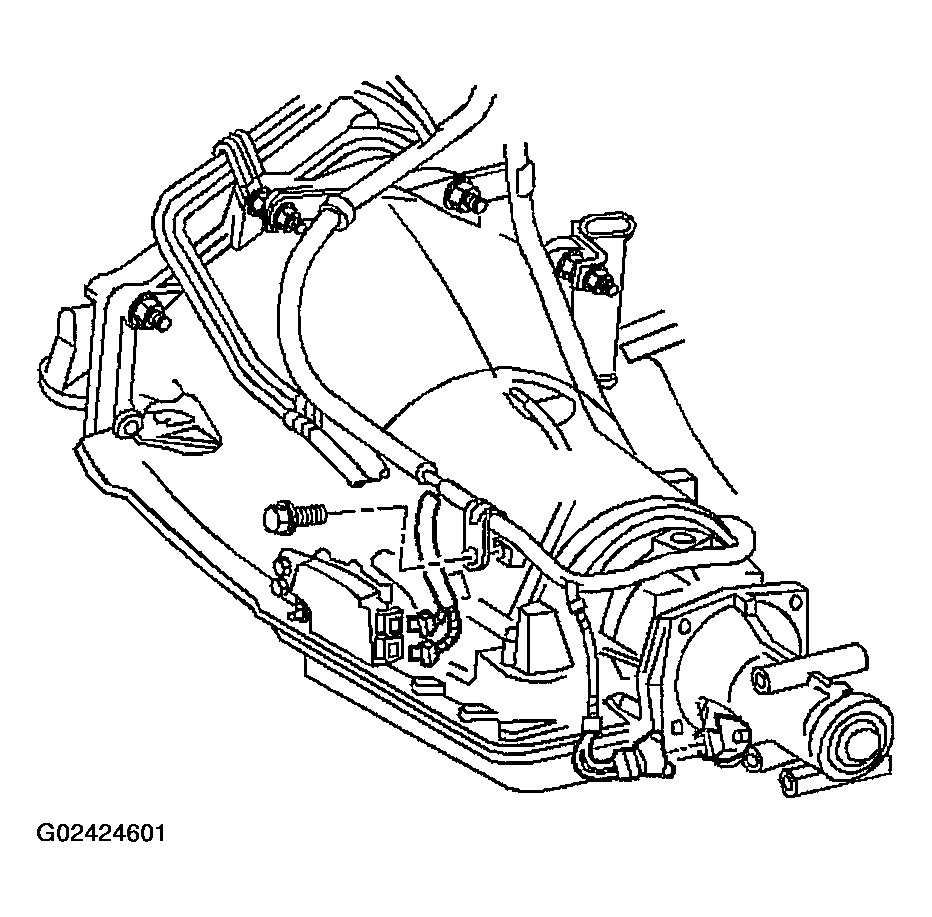

    Fig 3: Installing Wiring Harness Connectors
    G02424601Courtesy of GENERAL MOTORS CORP.
  13. Install the starter motor. Refer to STARTER MOTOR REPLACEMENT (4.8L, 5.3L & 6.0L) or STARTER MOTOR REPLACEMENT (4.3L) .
  14. Install the exhaust pipe to the exhaust manifolds and the muffler assembly to the exhaust pipe. Refer to CATALYTIC CONVERTER REPLACEMENT (4.3L) or CATALYTIC CONVERTER REPLACEMENT (DUAL EXHAUST - RIGHT) or CATALYTIC CONVERTER REPLACEMENT (DUAL EXHAUST - LEFT) .

    Install the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT .

  15. Remove the transmission jack and the engine support stands.
  16. Install the rear propeller shaft.
  17. Install the transmission range select cable to the transmission range select lever and the bracket.

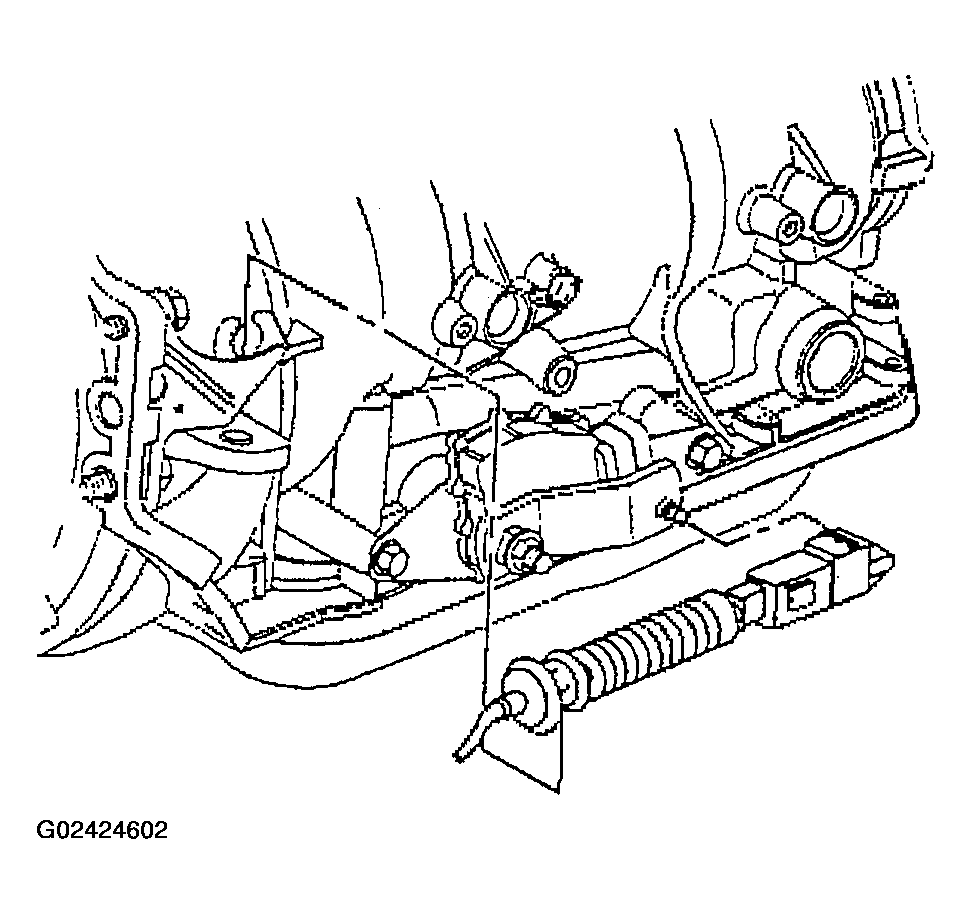

    Fig 4: Installing Transmission Range Select Cable
    G02424602Courtesy of GENERAL MOTORS CORP.
  18. Flush the transmission oil cooler and the pipes whenever you remove the transmission for overhaul, or replacement of the torque converter, the pump, or the transmission case. Refer to Automatic Transmission Oil Cooler Flushing and Flow Test (J 35944-A)  or Automatic Transmission Oil Cooler Flushing and Flow Test (J 45096)  .
  19. Remove the safety stands.
  20. Lower the vehicle. -
  21. Fill the transmission to the proper level with approved fluid.
  22. Connect the battery negative cable assembly to the battery negative terminal.

    Tighten

    Tighten the terminal bolt to 15 N.m (11 lb ft).
