Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille assembly. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  2. Disconnect the 2 lines from the auxiliary cooler.
  3. Remove the lines from the push clips on the auxiliary cooler mounting bracket.
  4. Raise the vehicle.

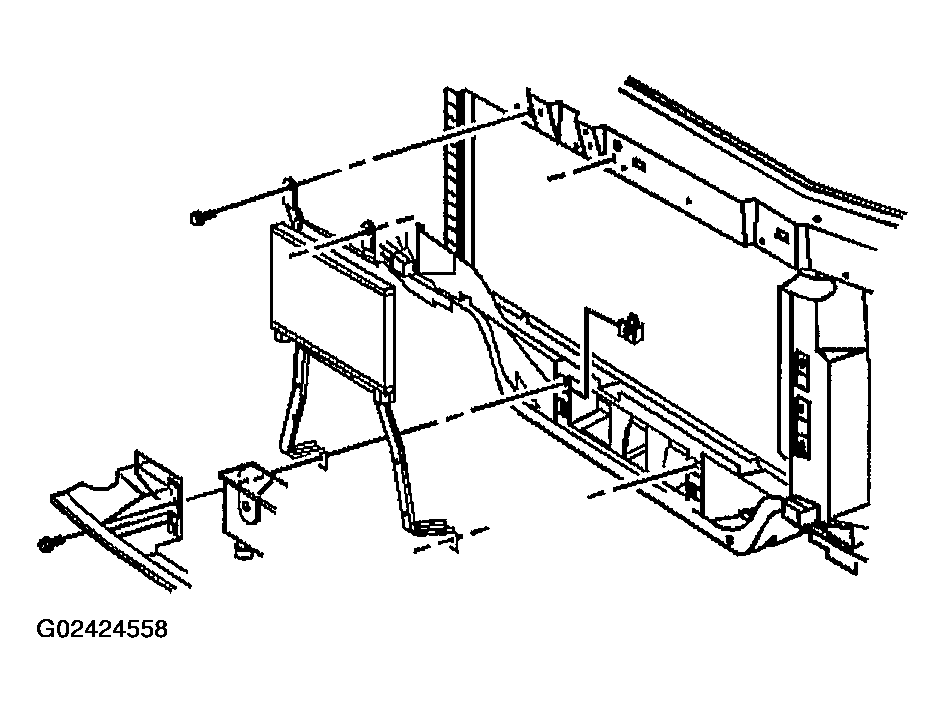

    Fig 1: Removing Lines From Push Clips
    G02424558Courtesy of GENERAL MOTORS CORP.
  5. Remove the lower bolts from the auxiliary cooler mounting bracket.
  6. Lower the vehicle.
  7. Remove the upper bolts.
  8. Remove the auxiliary oil cooler from the vehicle.
    Fig 2: Removing Auxiliary Oil Cooler
    G02424559Courtesy of GENERAL MOTORS CORP.
