Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transmission oil pan and the filter. Refer to Automatic Transmission Fluid/Filter Replacement .
    WARNING: Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
  3. Remove the reverse boost valve bushing retainer ring (2).
    Fig 1: Removing Reverse Boost Valve Bushing Retainer Ring
    G02424504Courtesy of GENERAL MOTORS CORP.
  4. Remove the following from the reverse boost valve cylinder:
    • The reverse boost valve bushing
    • The reverse boost valve
    • The pressure regulator spring retainer
    • The pressure regulator spring
    • The pressure regulator valve
    • The reverse boost valve bushing

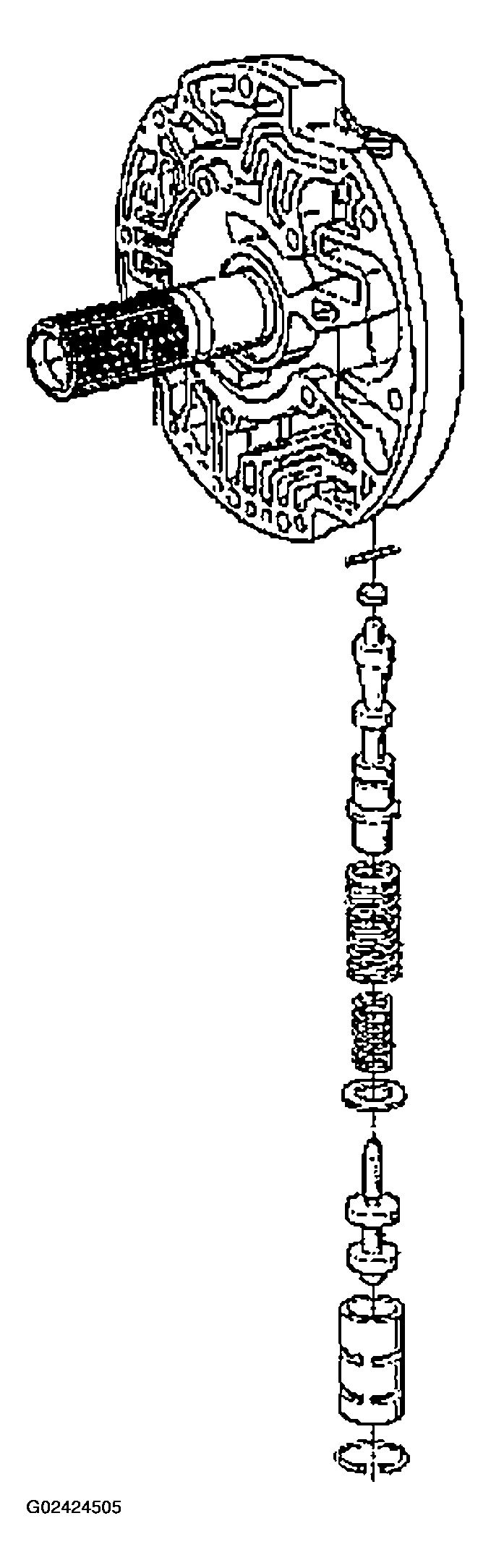

    Fig 2: Removing Reverse Boost Valve Cylinder Components
    G02424505Courtesy of GENERAL MOTORS CORP.
