Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Raise the vehicle.
- Remove the oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
- Remove the six forward servo cover bolts, cover, and gasket.

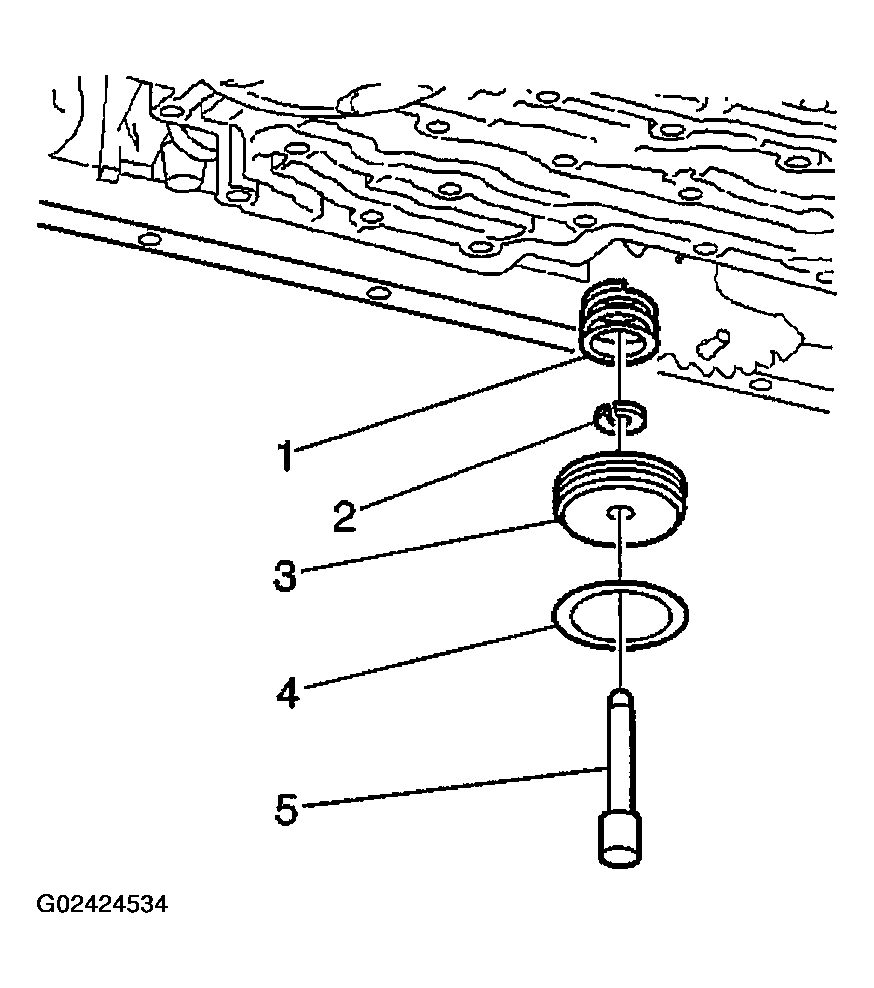

- Remove the following parts:
- Forward servo piston pin (5)
- O-ring seal (4)
- Servo piston (3)
- Retainer (2)
- Piston spring (1)
