Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new oil level indicator tube seal into the transmission case.
  2. Install the bottom of oil level indicator tube into the seal.
  3. Remove the safety stands.
  4. Lower the vehicle.
  5. Install the upper fill tube to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  6. Install the bolt and the nut securing the oil level indicator tube brackets to the engine.

    Tighten

    • Tighten the bolt to 47 N.m (35 lb ft).
    • Tighten the nut to 25 N.m (18 lb ft).
  7. Install the nut securing the oil level indicator tube to the transmission stud.

    Tighten

    Tighten the nut to 25 N.m (18 lb ft).

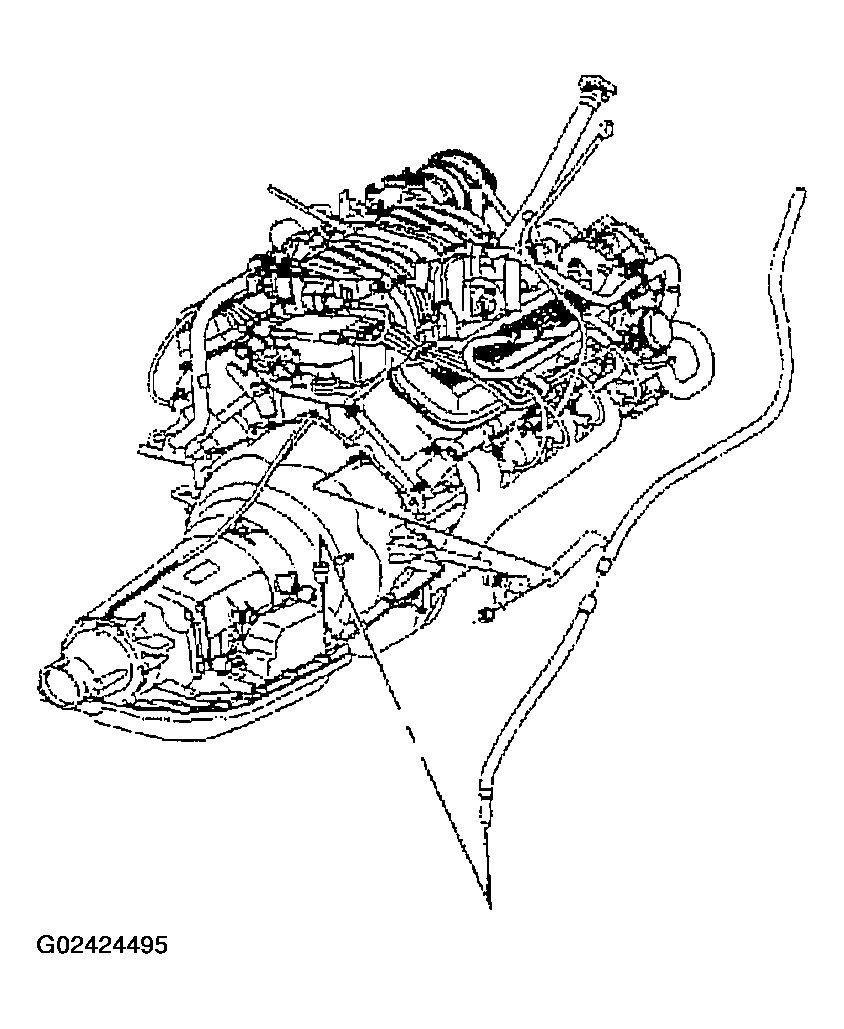

    Fig 1: Installing Oil Level Indicator Tube & Upper Fill Tube
    G02424495Courtesy of GENERAL MOTORS CORP.
  8. Install the air cleaner.
  9. Install the engine cover. Refer to ENGINE COVER REPLACEMENT .
  10. Fill the transmission fluid to the proper level. Refer to Transmission Fluid Checking Procedure .
