Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Position the steering column shift lever to park.
  3. Remove the knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
  4. Remove the knee bolster bracket. Refer to KNEE BOLSTER BRACKET REPLACEMENT - LEFT .
  5. Remove the clip securing the shift cable to the steering column bracket.
  6. Remove the shift cable from the steering column shift control.
  7. Remove the rubber grommet from the floor panel.

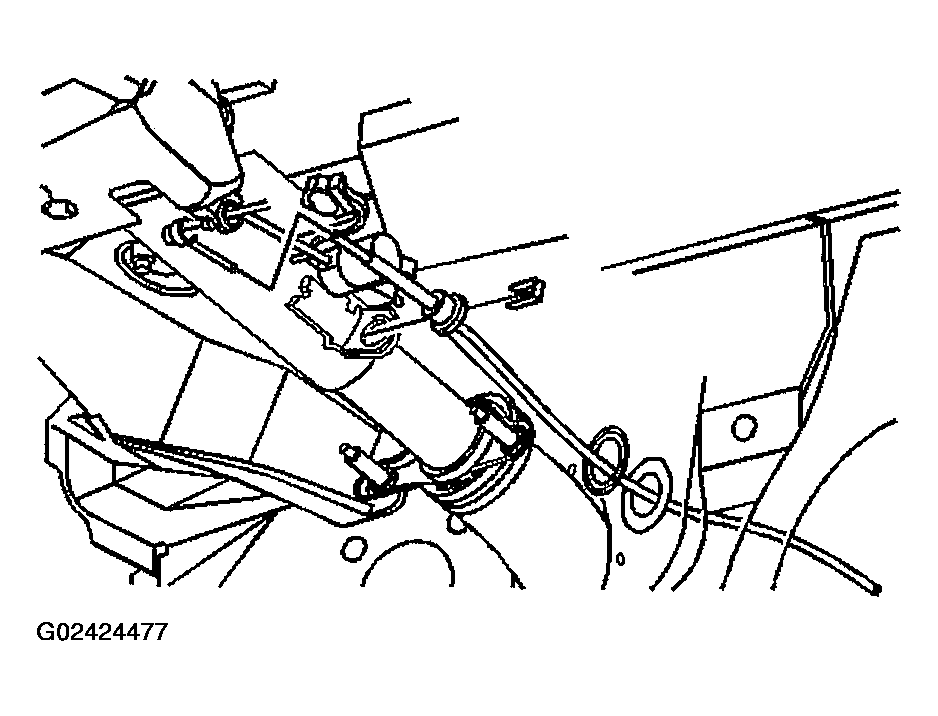

    Fig 1: Removing Shift Cable From Steering Column Shift Control
    G02424477Courtesy of GENERAL MOTORS CORP.
  8. Remove the air cleaner assembly.
  9. Remove the shift cable clips from the left front of the engine compartment.
  10. Raise the vehicle.
  11. Remove the shift cable clips from the left rear engine bracket.

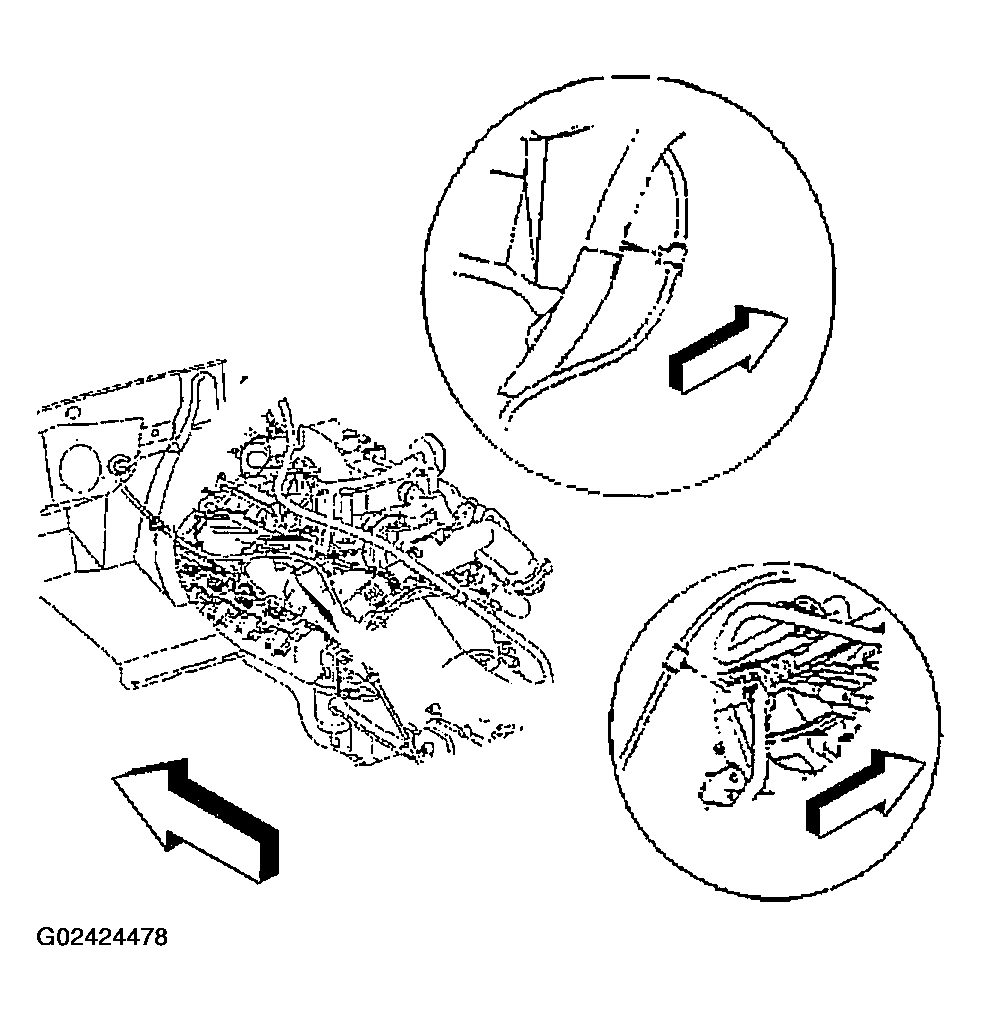

    Fig 2: Removing Shift Cable Clips
    G02424478Courtesy of GENERAL MOTORS CORP.
  12. Remove the shift cable from the stud ball.
  13. Remove the locking clip from the cable at the bracket.
  14. Lower the vehicle.
  15. Remove the shift cable from the vehicle.

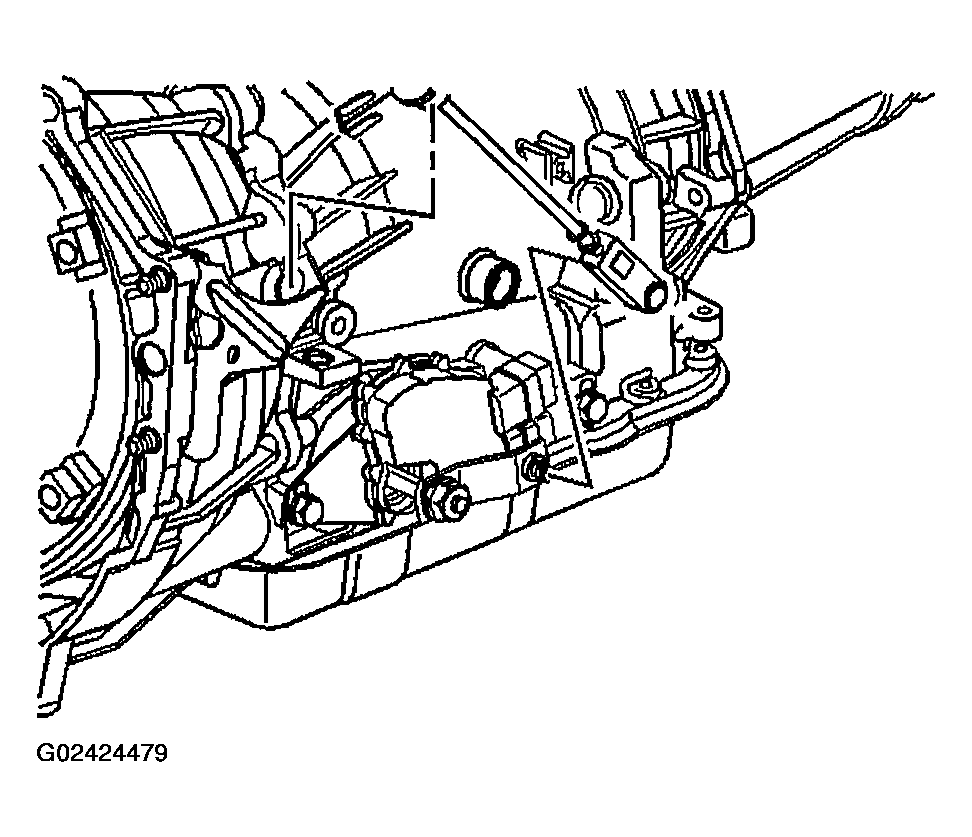

    Fig 3: Removing Shift Cable From Stud Ball
    G02424479Courtesy of GENERAL MOTORS CORP.
