Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: Prior to installing the shift cable to the vehicle, ensure that the column shift lever and the transmission control lever are in the mechanical park position. The transmission control lever can be positioned to mechanical park by rotating the control lever clockwise until it reaches its full clockwise position.

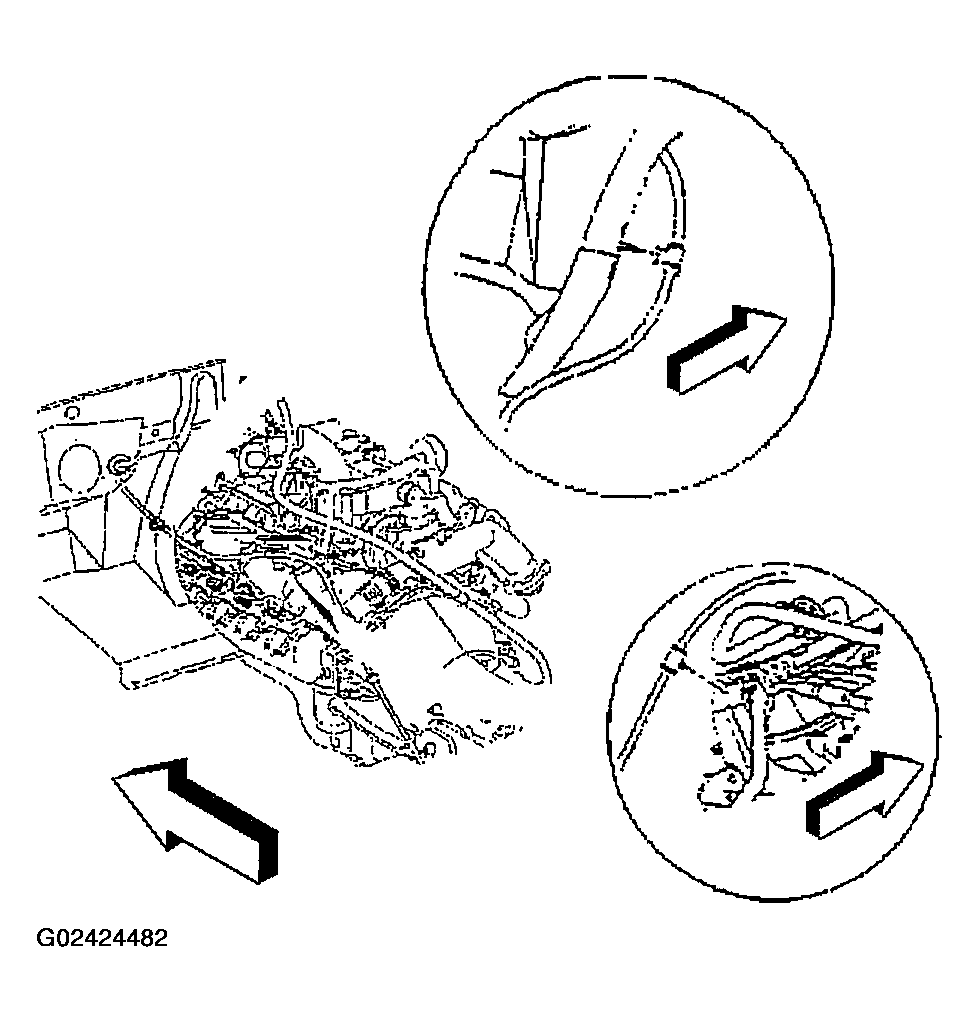

- Install the shift cable to the vehicle.
- Raise the vehicle.

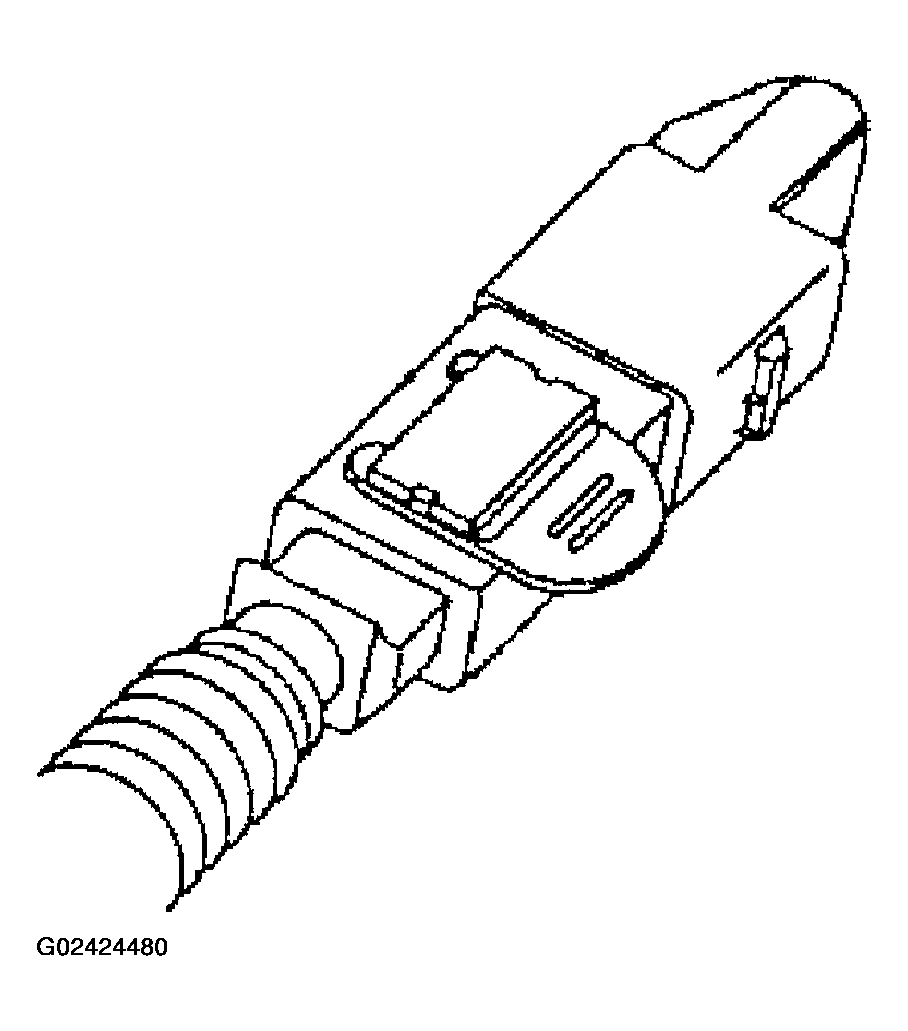

- Remove the black shipping tab from the transmission end of the shift cable and discard the tab.

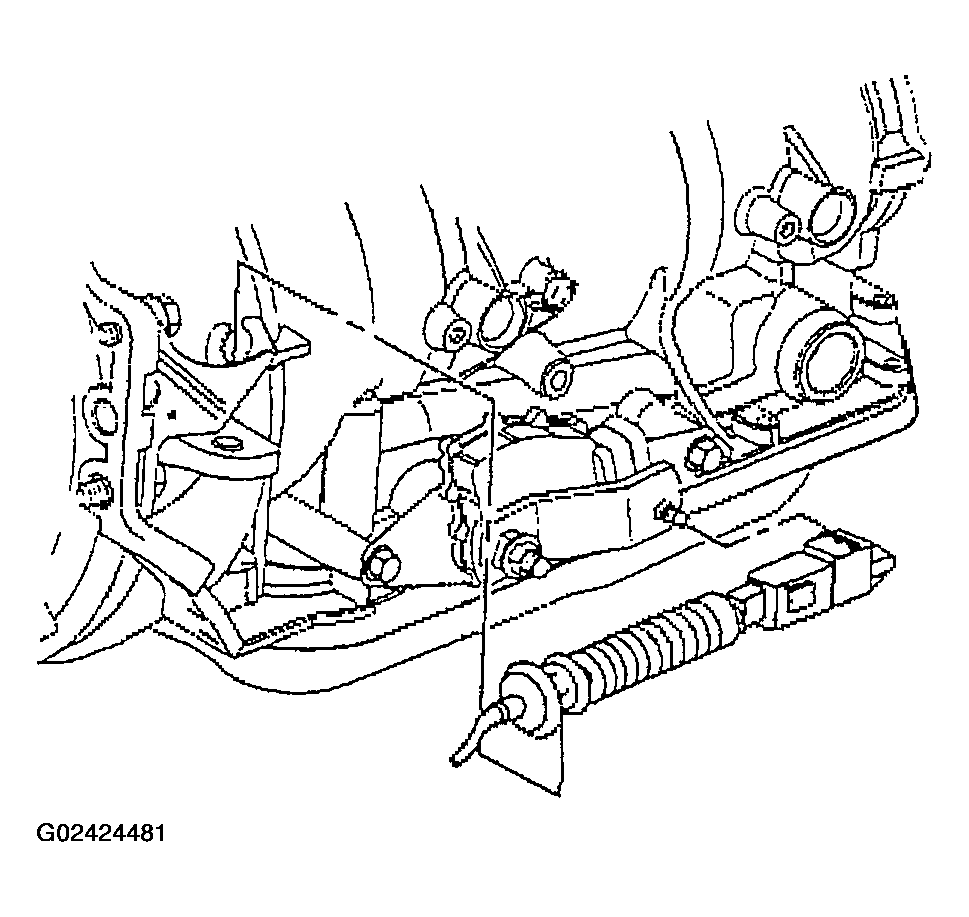

- Install the ball stud on the transmission.
- Install the shift cable to the transmission bracket.
- Install the cable clip.
- Install the shift cable end to the transmission shift control lever by pushing the cable end onto the transmission shift control lever stud ball.
- Lock the primary lock.
- Lock the secondary lock.
- Install the shift cable clips to the engine brackets.
- Lower the vehicle.
- Install the rubber grommet to the floor panel.
Important: Ensure the shift lever is in the Park position.

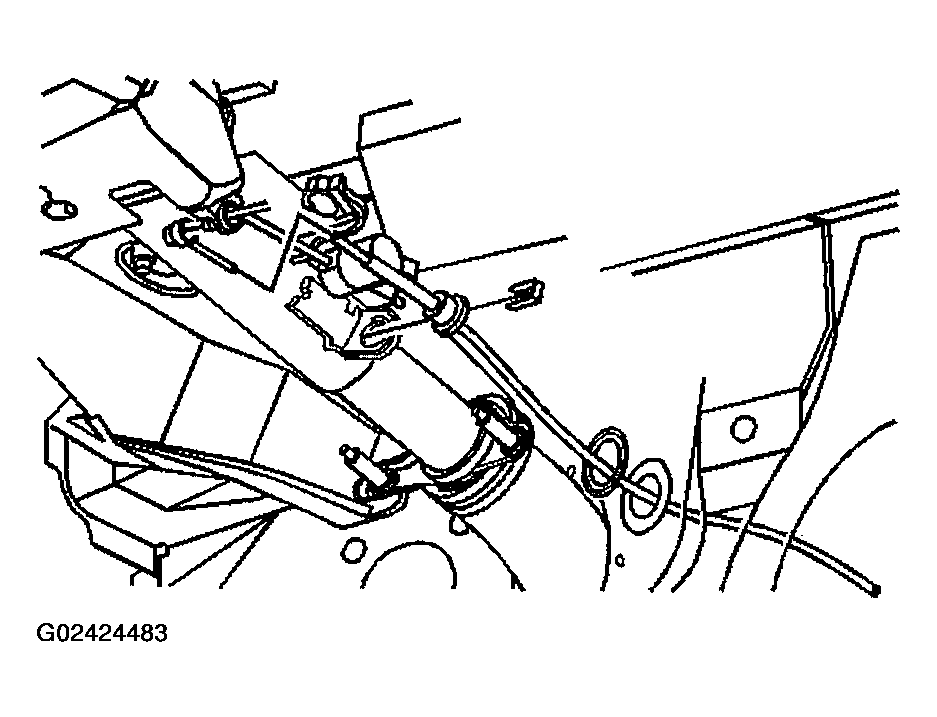

- Install the shift cable to the steering column shift control.
- Install the clip securing the shift cable to the steering column bracket.
- Install the cable to the shift lever ball stud.
- Adjust the shift cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
- Install the knee bolster bracket. Refer to KNEE BOLSTER BRACKET REPLACEMENT - LEFT .
- Install the knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
