Third and Fourth Clutch Accumulator Disassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Apply low pressure compressed air to the hole at the top of the accumulator housing to assist with the piston removal.

  1. Remove the 3rd clutch accumulator piston (2).
  2. Remove the 3rd clutch accumulator piston seals (1, 3).

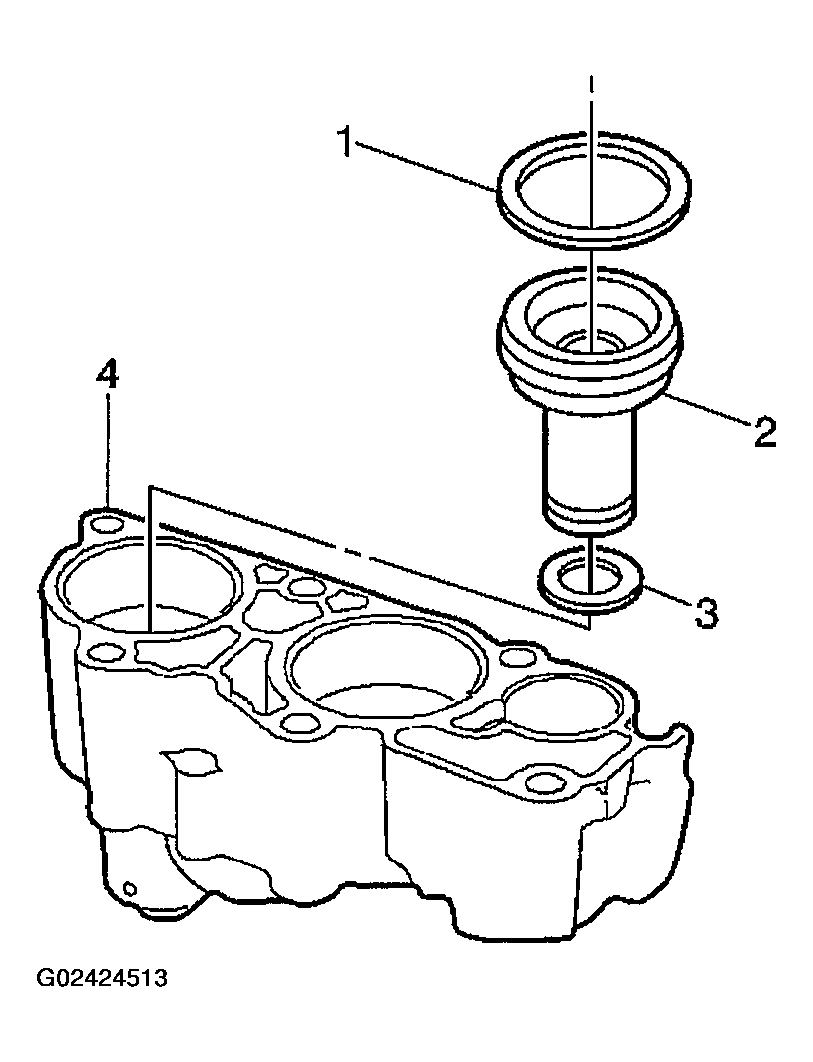

    Fig 1: Removing 3rd Clutch Accumulator Piston & Seals
    G02424513Courtesy of GENERAL MOTORS CORP.
  3. Remove the 4th clutch accumulator piston pin retainer ring (5).
  4. Remove the 4th clutch accumulator piston (4) and pin (2) from the accumulator housing (1).
  5. Remove the 4th clutch accumulator piston pin (2) from the accumulator housing (1).
  6. Remove the 4th clutch accumulator piston seal (3) from the accumulator housing (1).

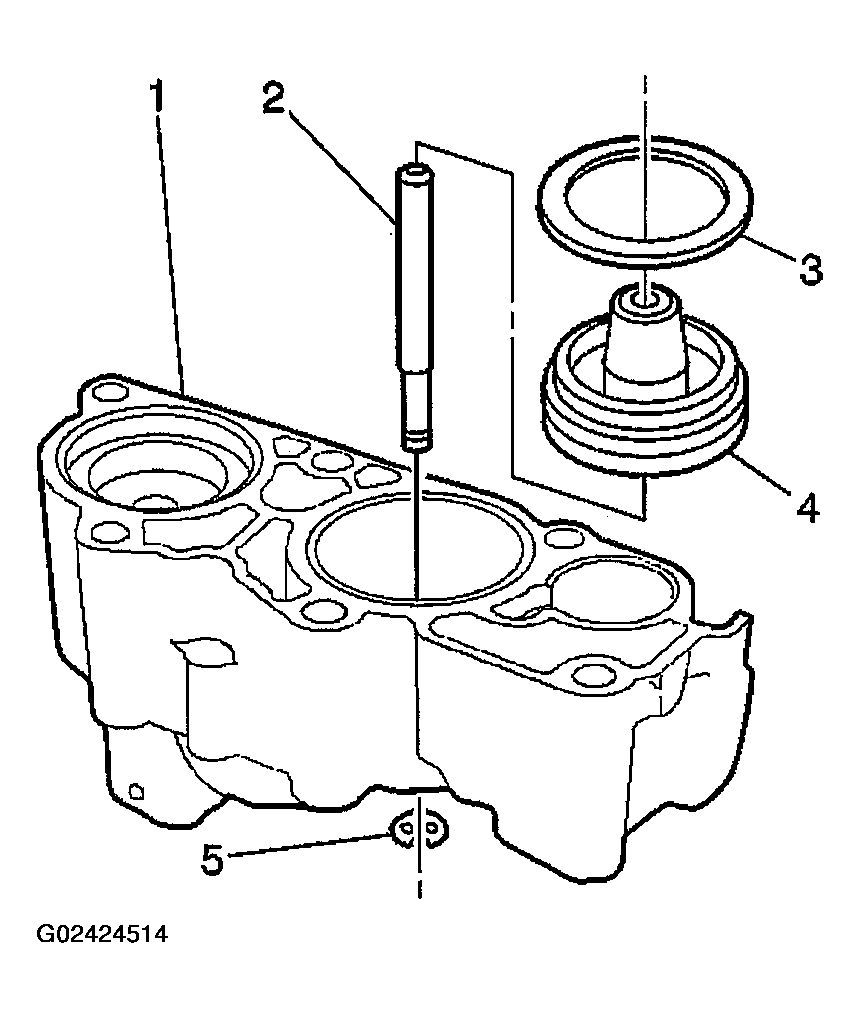

    Fig 2: Removing 4th Clutch Accumulator Piston & Components
    G02424514Courtesy of GENERAL MOTORS CORP.
