Third and Fourth Clutch Accumulator Assembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 3rd clutch accumulator piston inner (3) and outer (1) seals. Lubricate the 3rd clutch accumulator piston seals (1, 3) with Dexron® III automatic transmission fluid.
  2. Install the 3rd clutch accumulator piston (2).

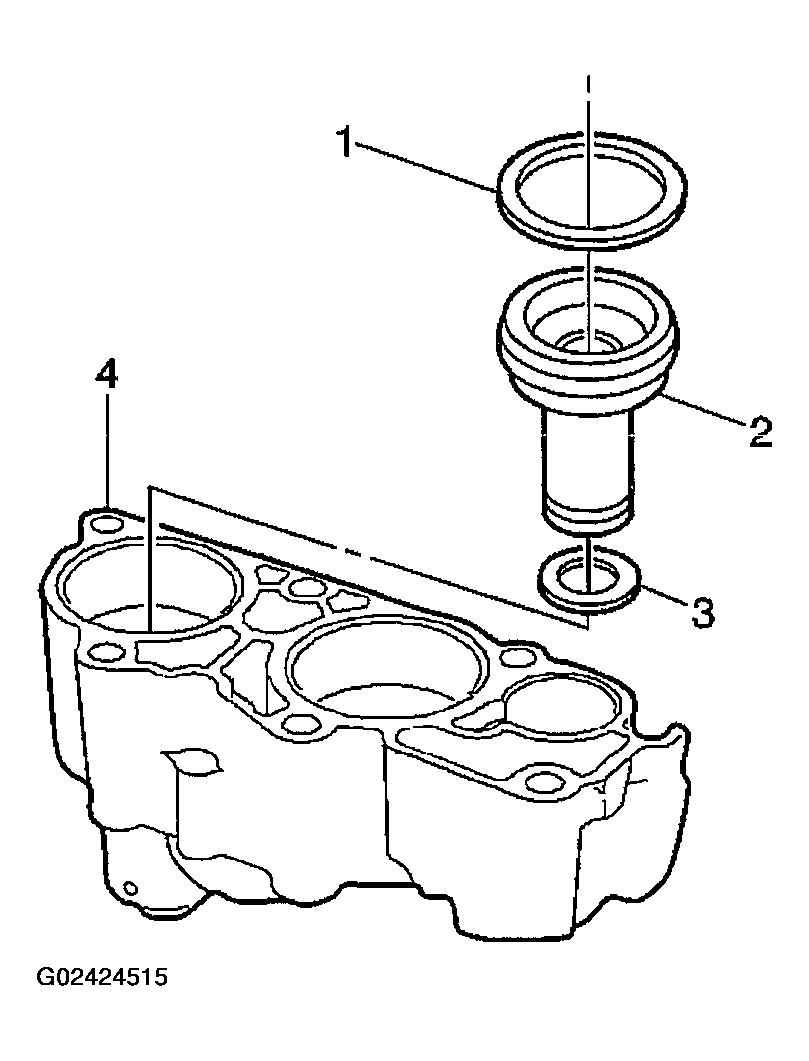

    Fig 1: Installing 3rd Clutch Accumulator Piston Seals & Piston
    G02424515Courtesy of GENERAL MOTORS CORP.
  3. Install the 4th clutch accumulator piston seal (3). Lubricate the 4th clutch accumulator piston seal (3) with Dexron® III automatic transmission fluid.
  4. Assemble the 4th clutch accumulator piston pin (2) with the 4th clutch accumulator piston (4).
  5. Install the 4th clutch accumulator piston assembly into the accumulator housing (1).
  6. Install the 4th clutch accumulator piston pin retainer ring (5) onto the 4th clutch accumulator piston pin (2).

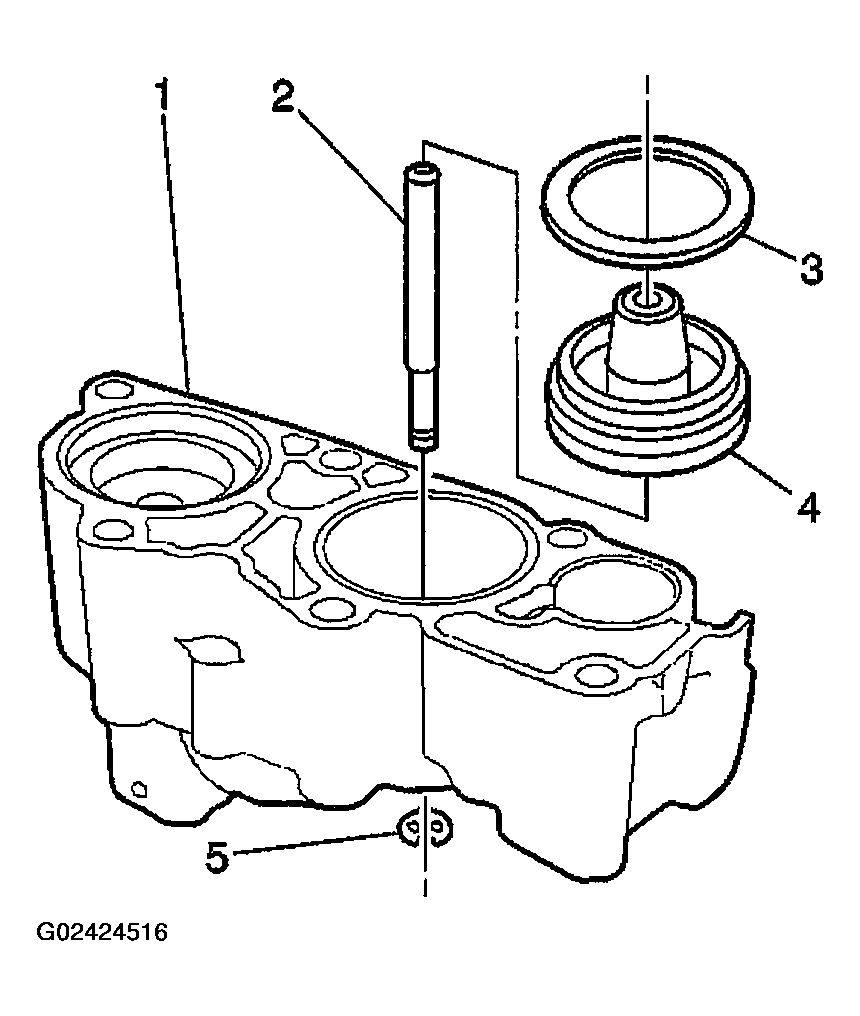

    Fig 2: Installing 4th Clutch Accumulator Piston & Components
    G02424516Courtesy of GENERAL MOTORS CORP.
