Scan Tool Output Controls

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

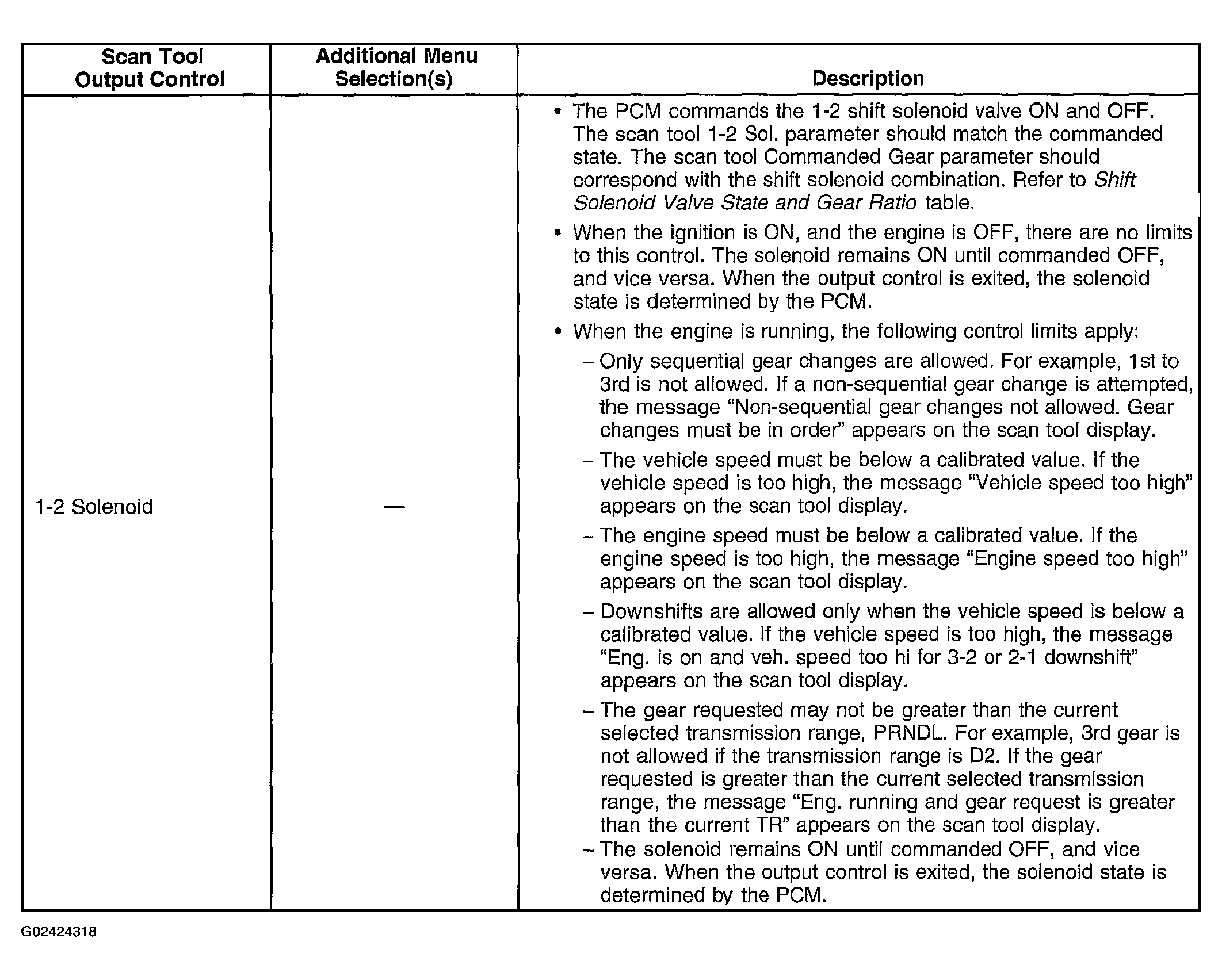

Fig 1: Scan Tool Output Controls (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

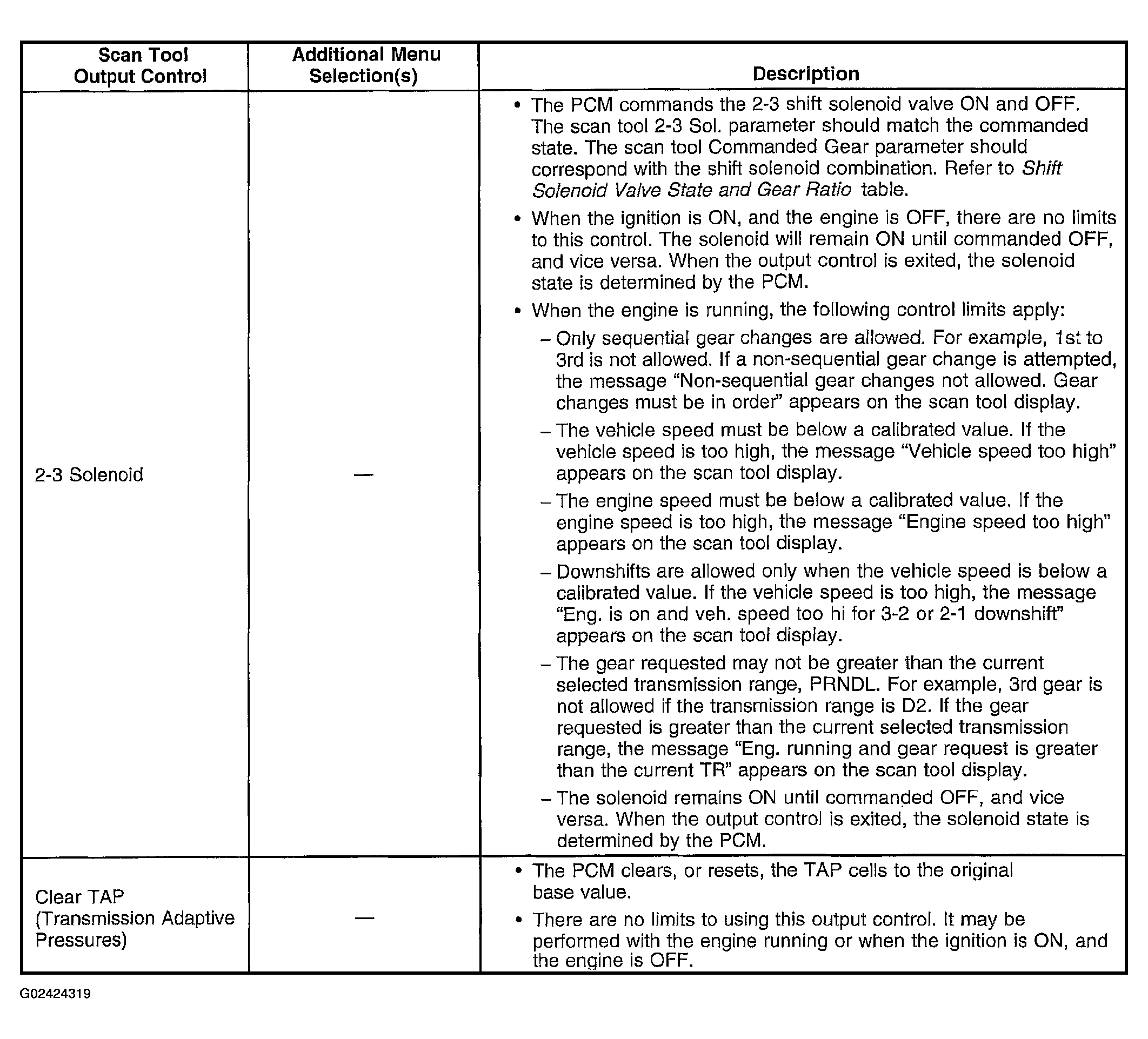

Fig 2: Scan Tool Output Controls (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

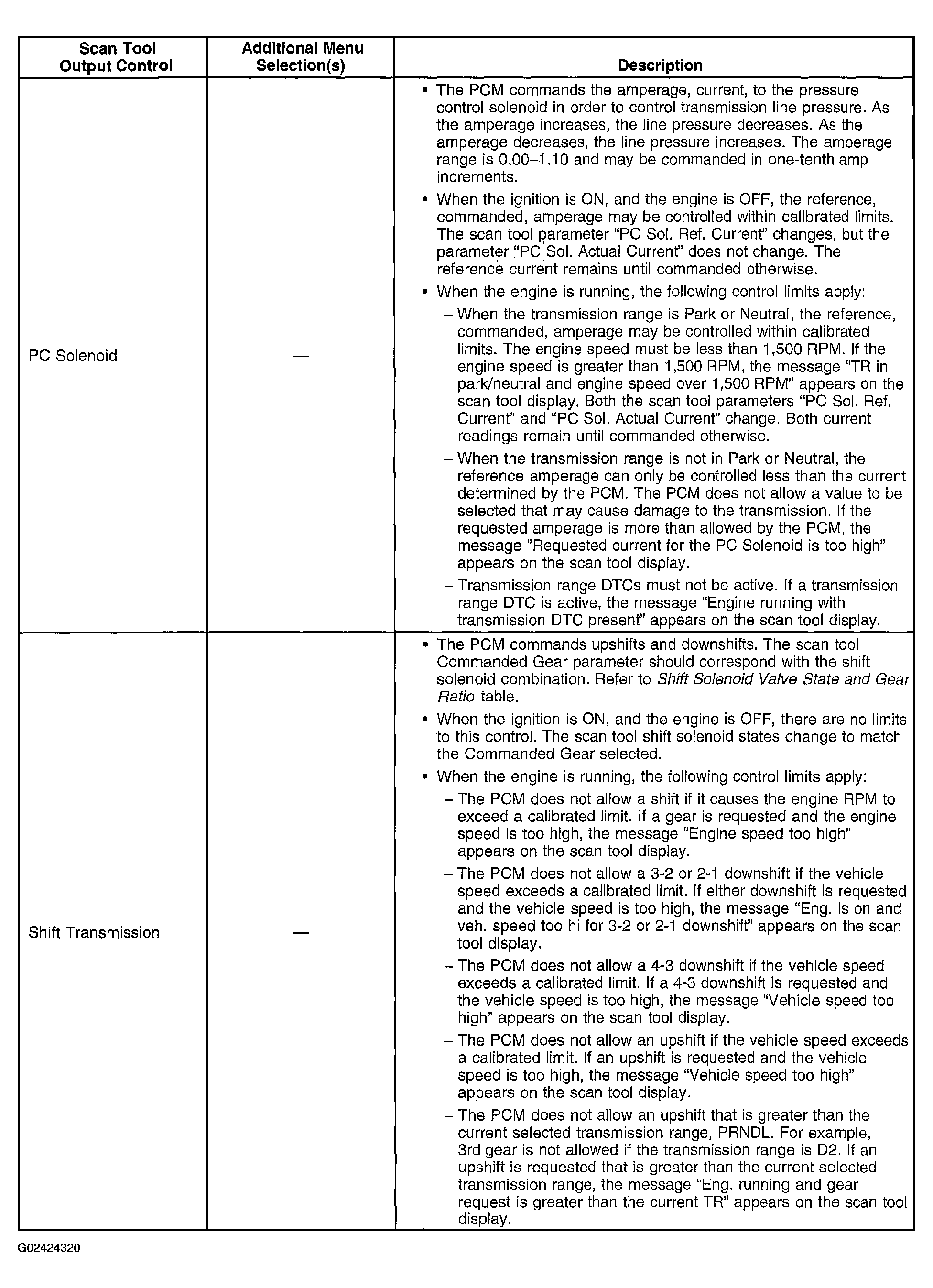

Fig 3: Scan Tool Output Controls (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

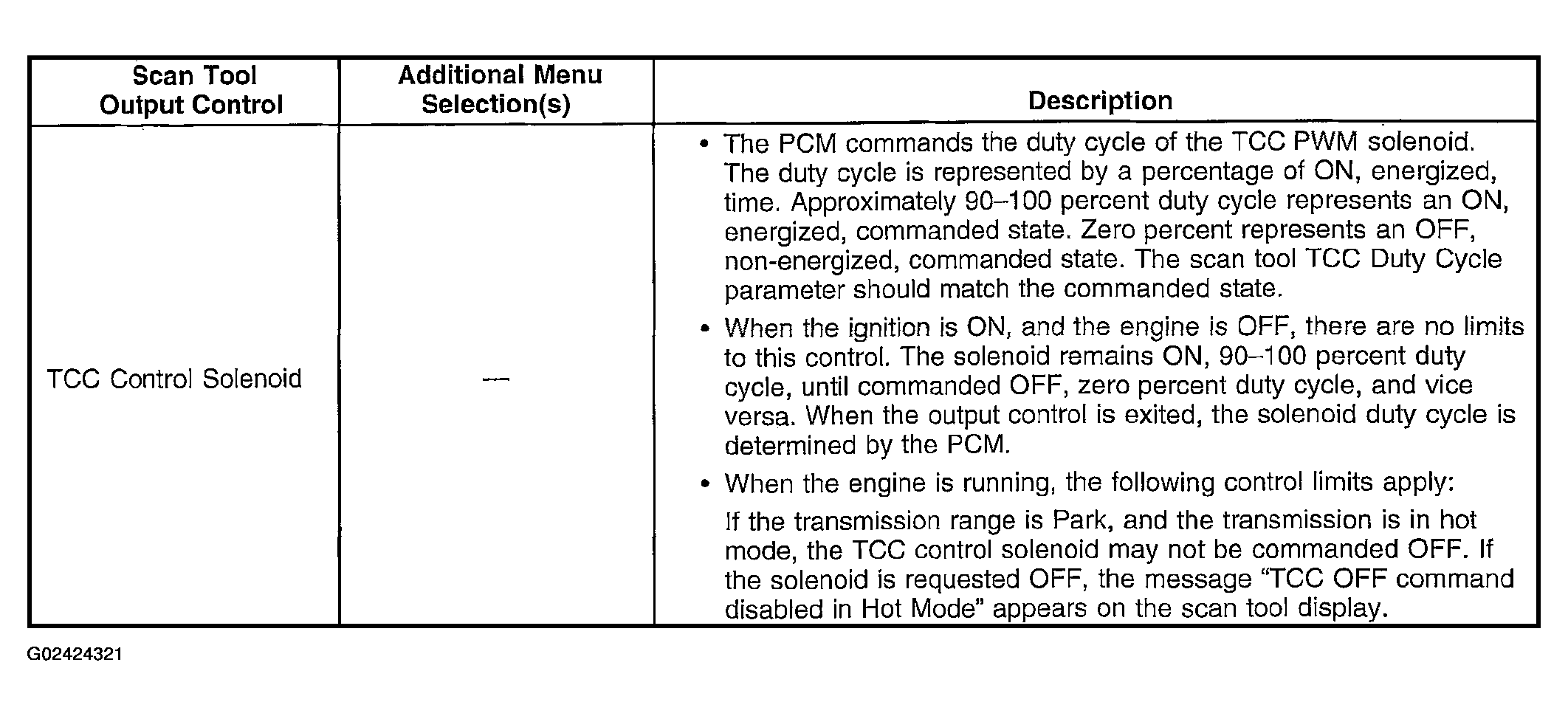

Fig 4: Scan Tool Output Controls (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
