Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests the indicated range signal to the manual valve that is actually selected.
  2. 5. This step tests the voltage from the PCM to the transmission AT inline 20-way connector.

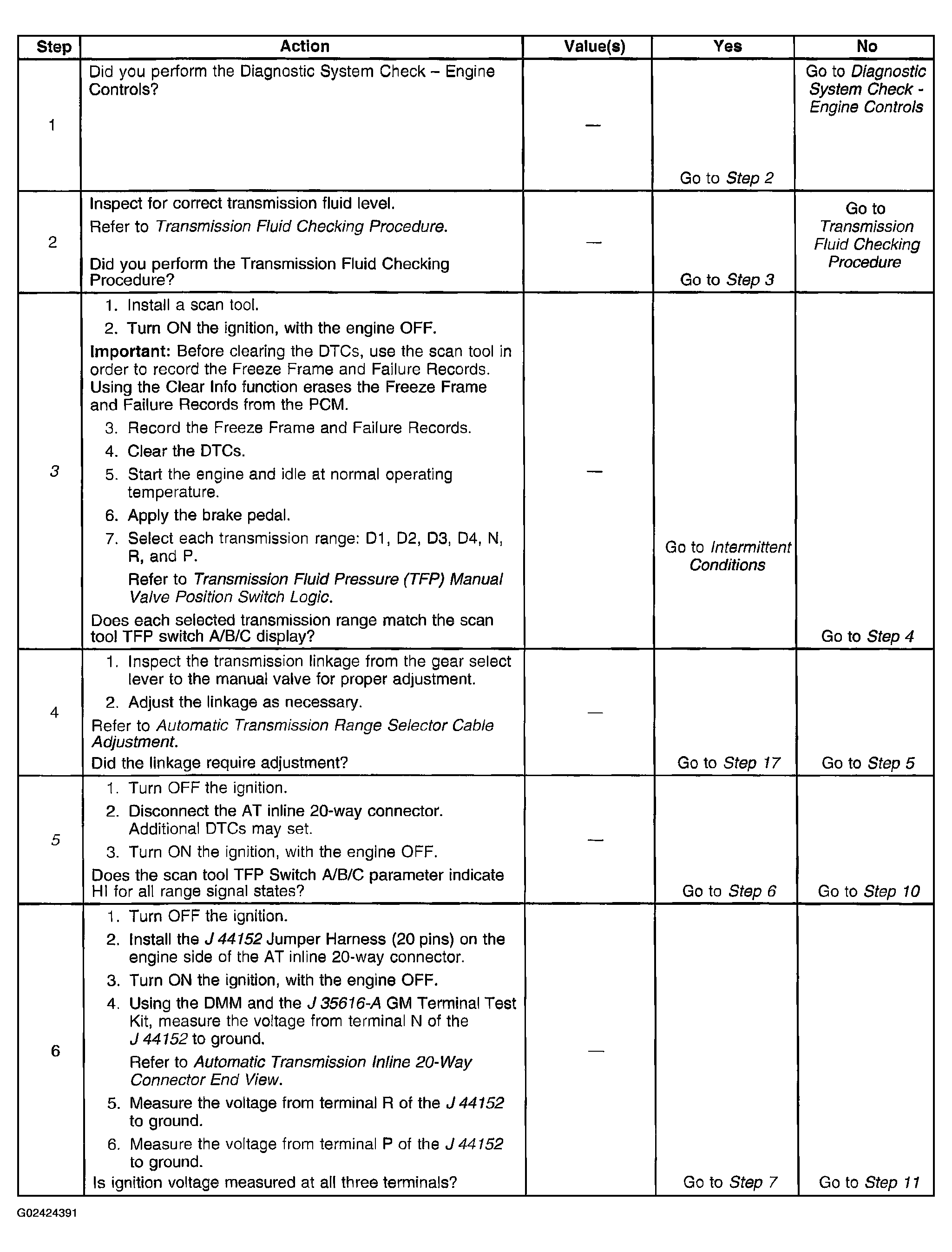

Fig 1: DTC P1810 (1 Of 3)
G02424391Courtesy of GENERAL MOTORS CORP.

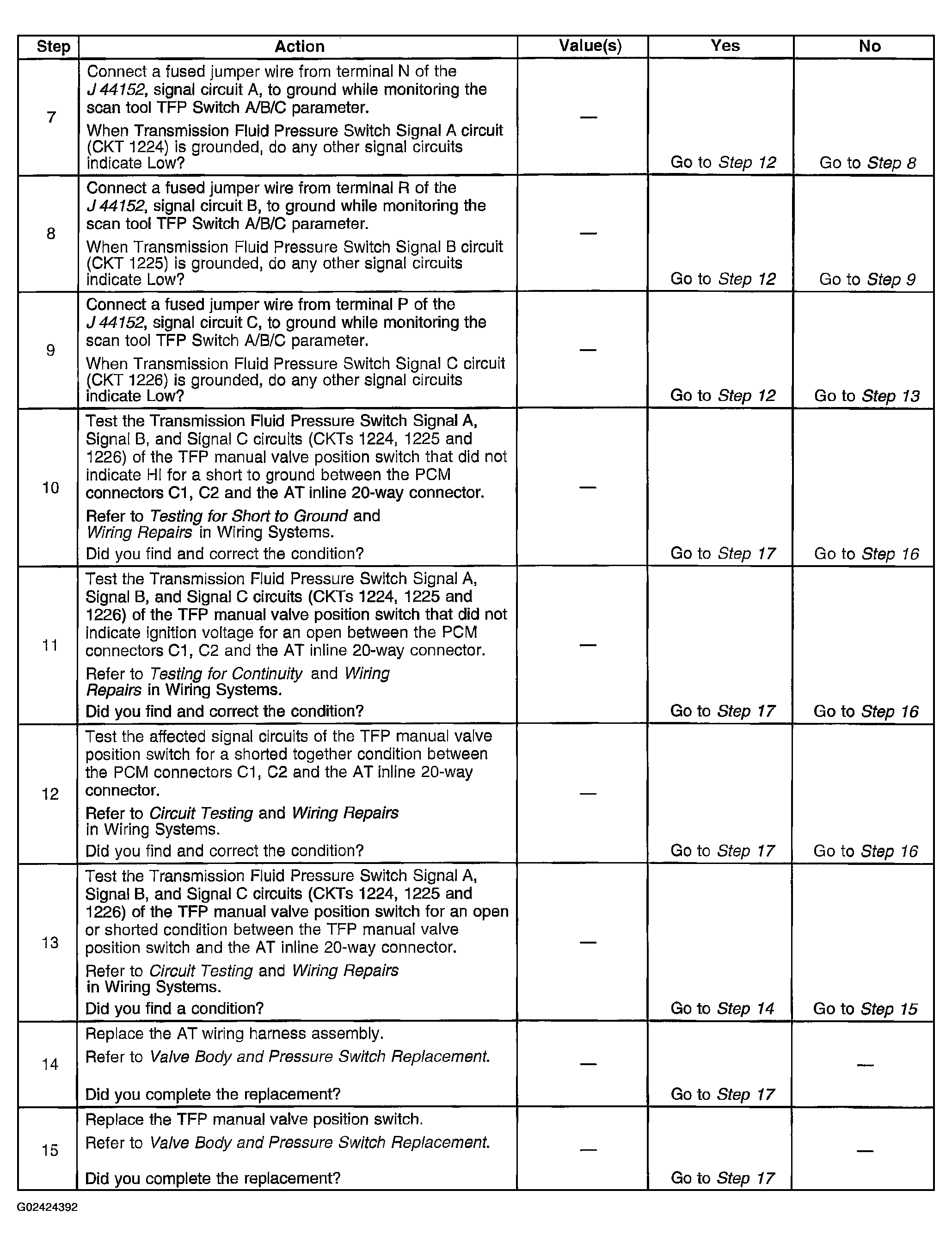

Fig 2: DTC P1810 (2 Of 3)
G02424392Courtesy of GENERAL MOTORS CORP.

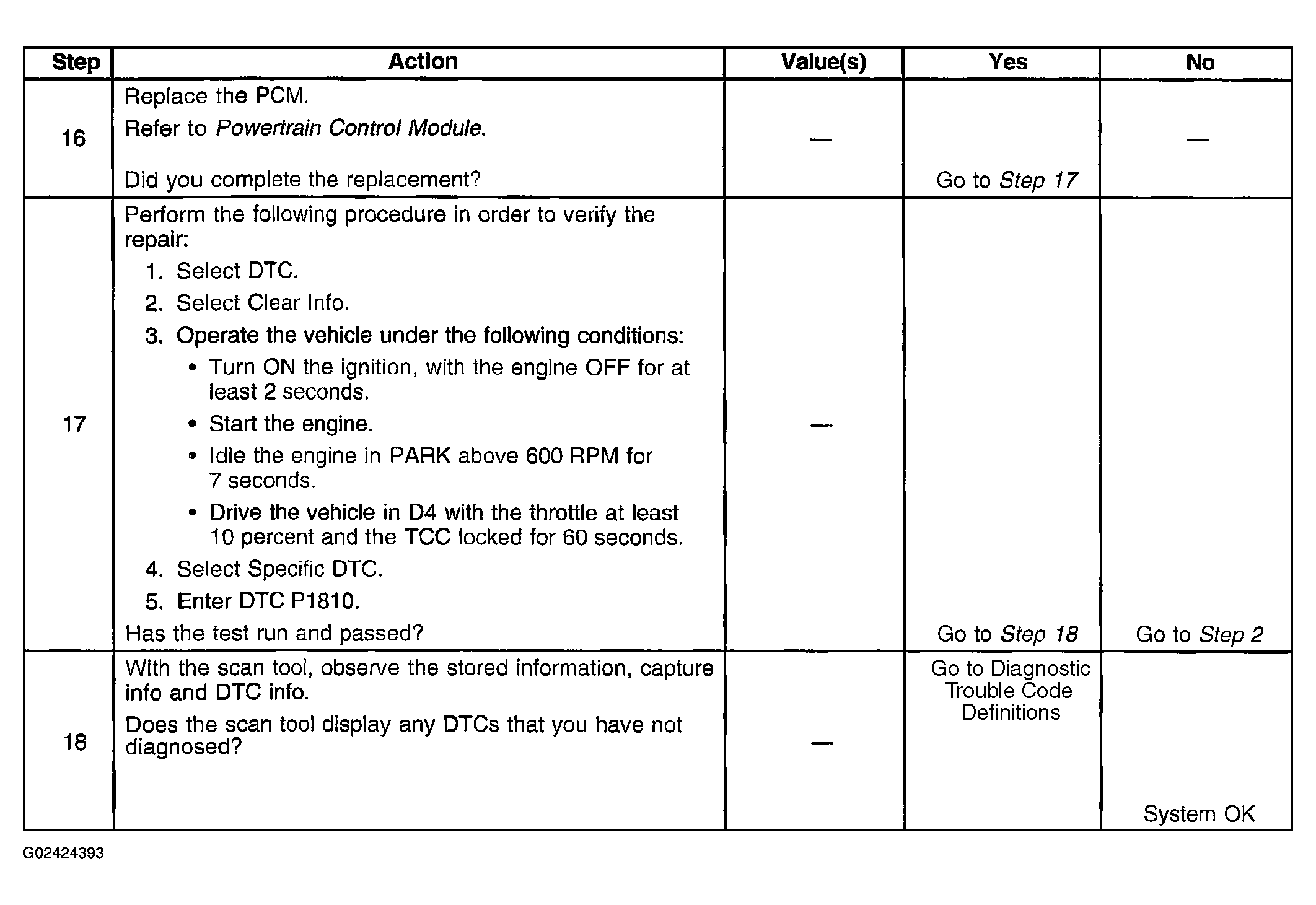

Fig 3: DTC P1810 (3 Of 3)
G02424393Courtesy of GENERAL MOTORS CORP.
