DTC P1810: Invalid State Of The TFP Manual Valve Position Switch Circuit: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

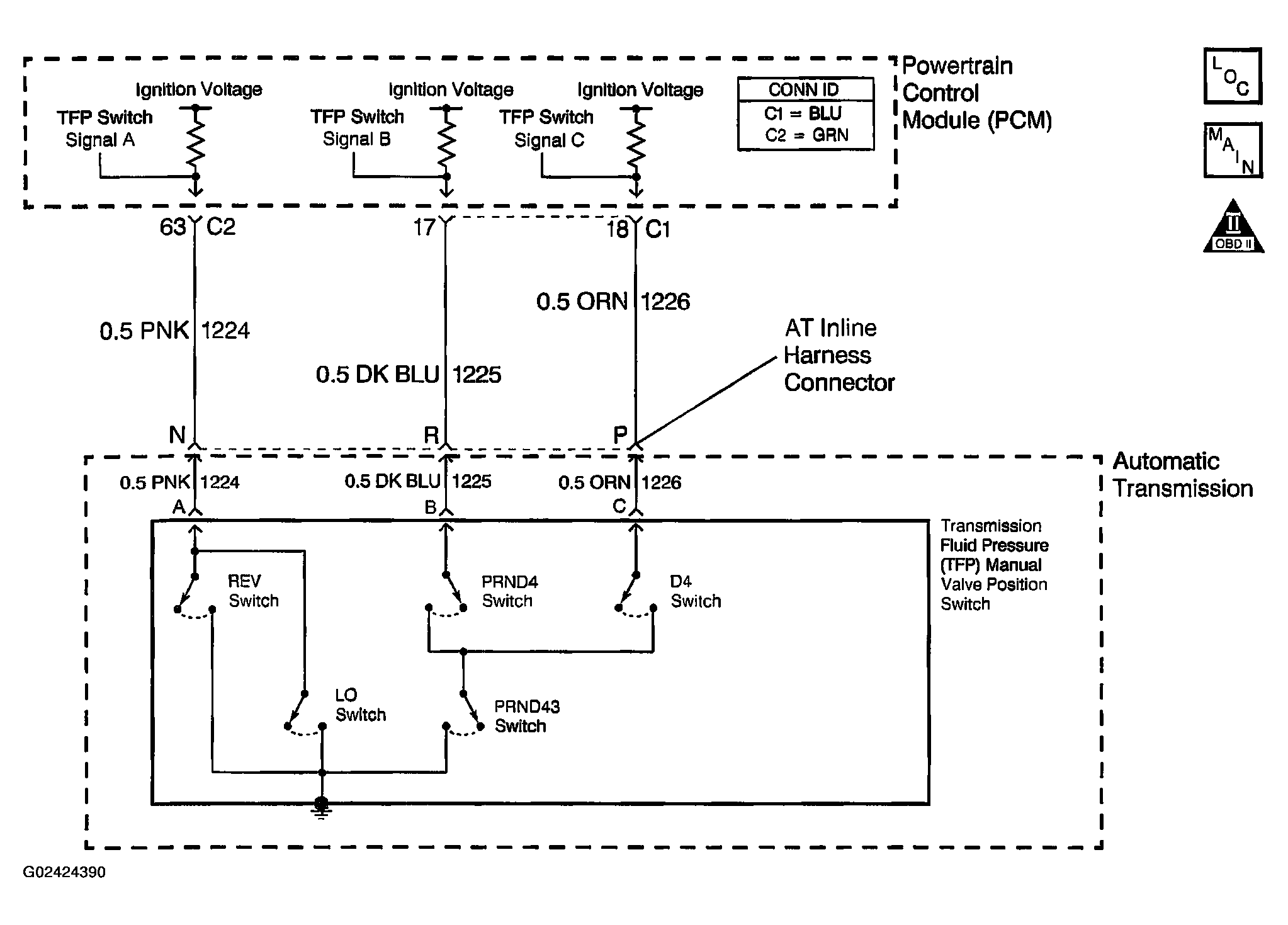

Fig 1: DTC P1810 Schematic
G02424390Courtesy of GENERAL MOTORS CORP.
