Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for excessive TCC slip when TCC is commanded on.
  2. 3. This step inspects for possible causes of no TCC apply.

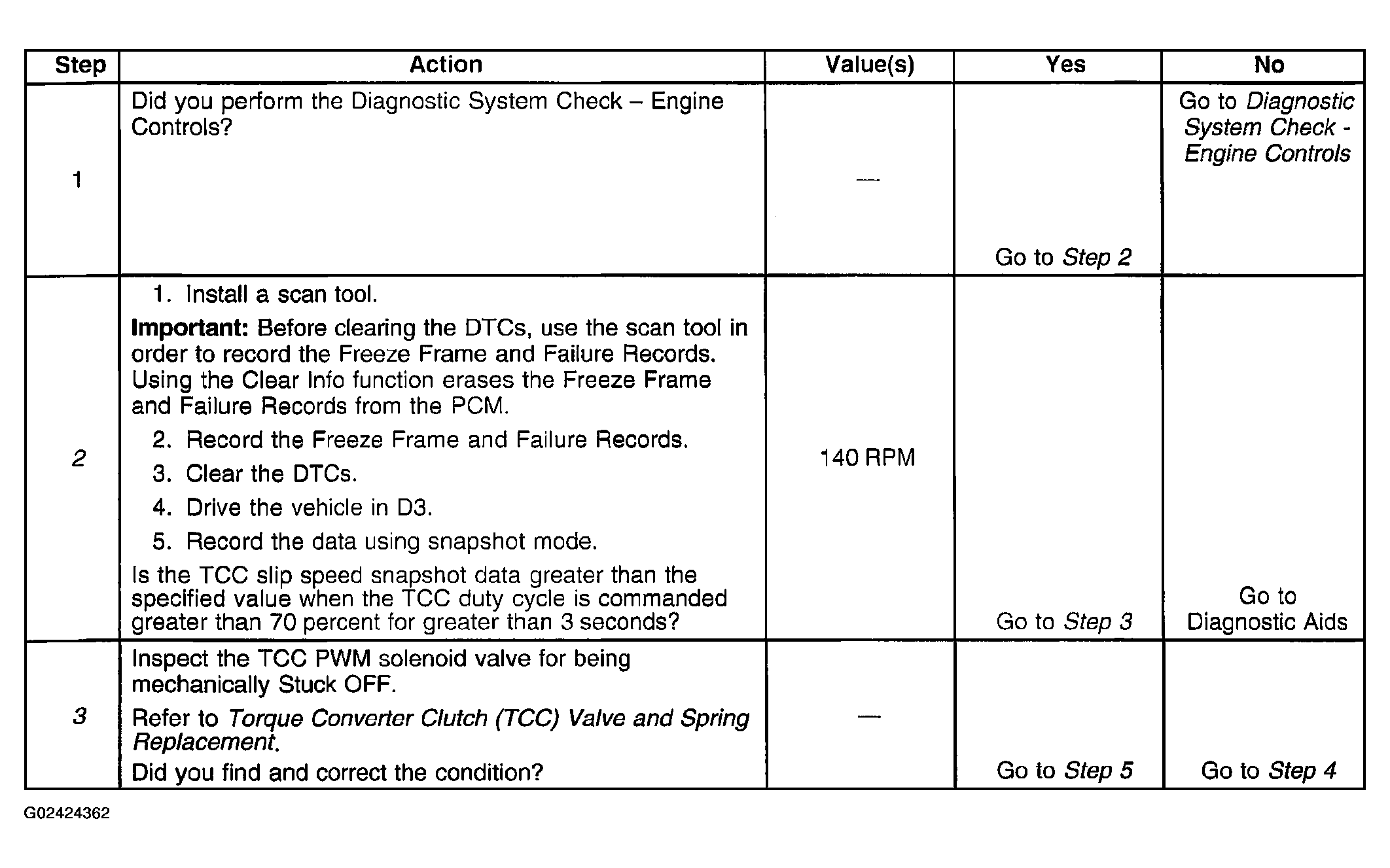

Fig 1: DTC P0741 (1 Of 2)
G02424362Courtesy of GENERAL MOTORS CORP.

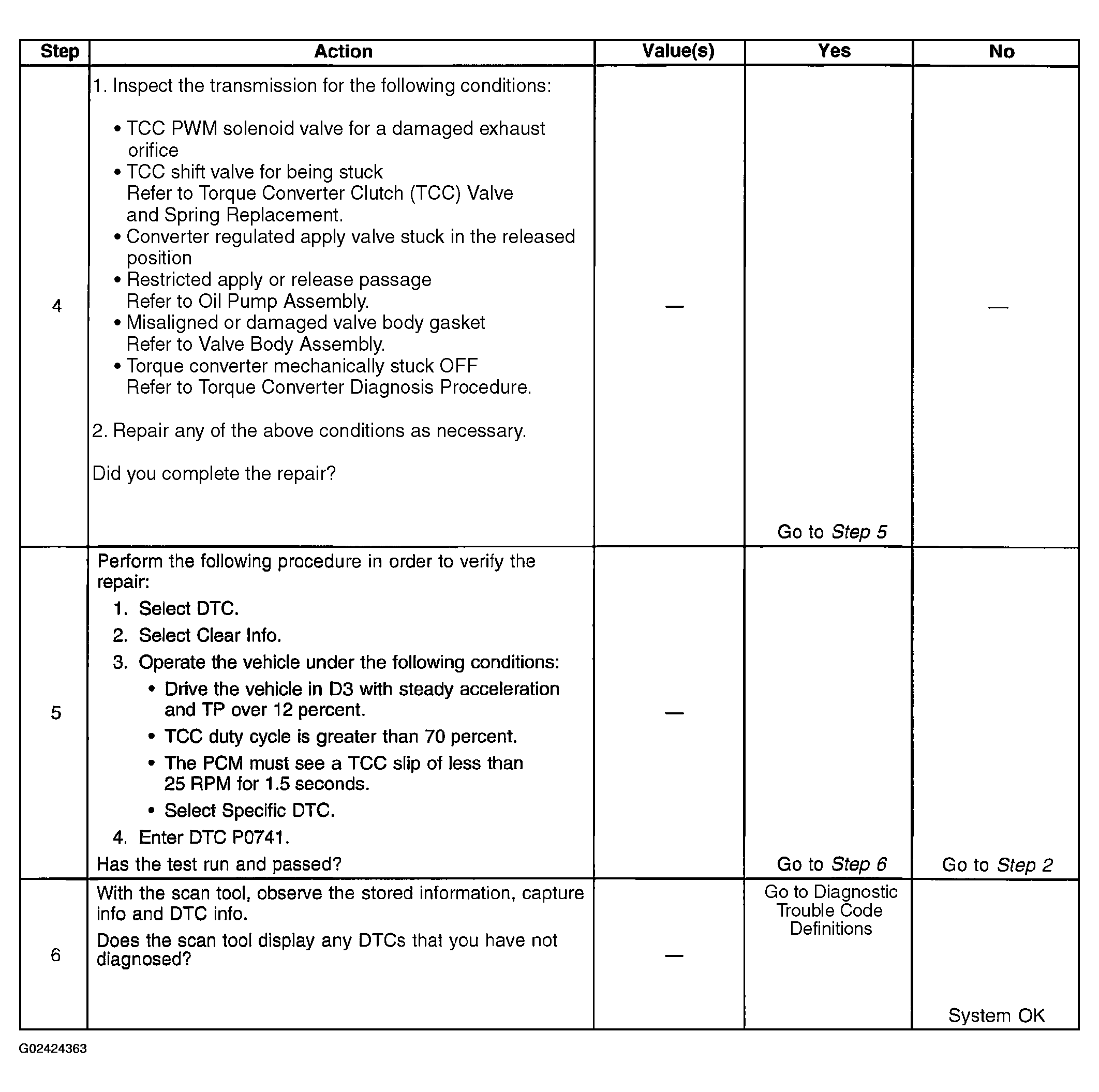

Fig 2: DTC P0741 (2 Of 2)
G02424363Courtesy of GENERAL MOTORS CORP.
