Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a short to ground or a skewed sensor by verifying the fault still exists.
  2. 4. This step tests for an internal fault within the transmission by creating an open.

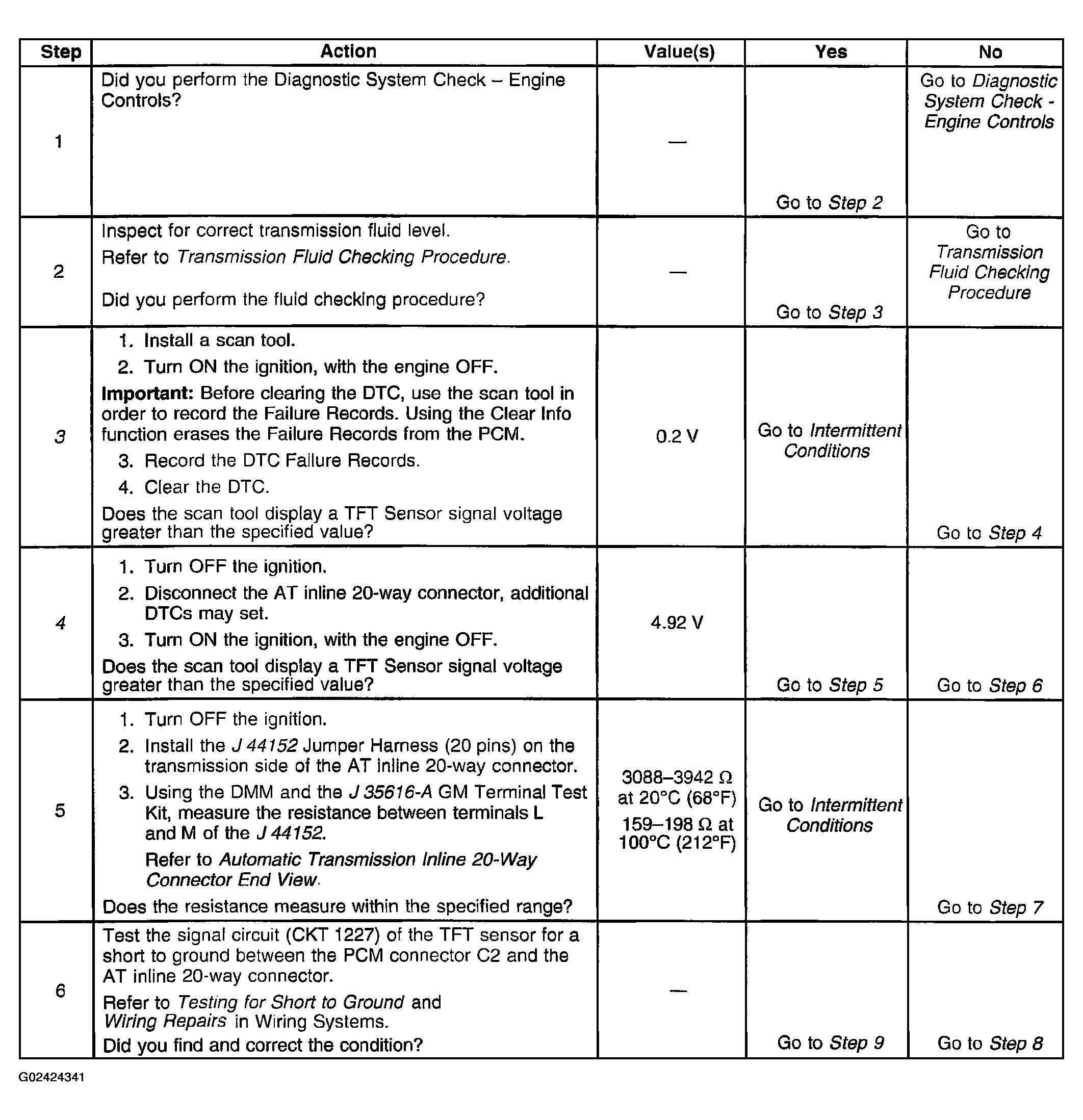

Fig 1: DTC P0712 (1 Of 2)
G02424341Courtesy of GENERAL MOTORS CORP.

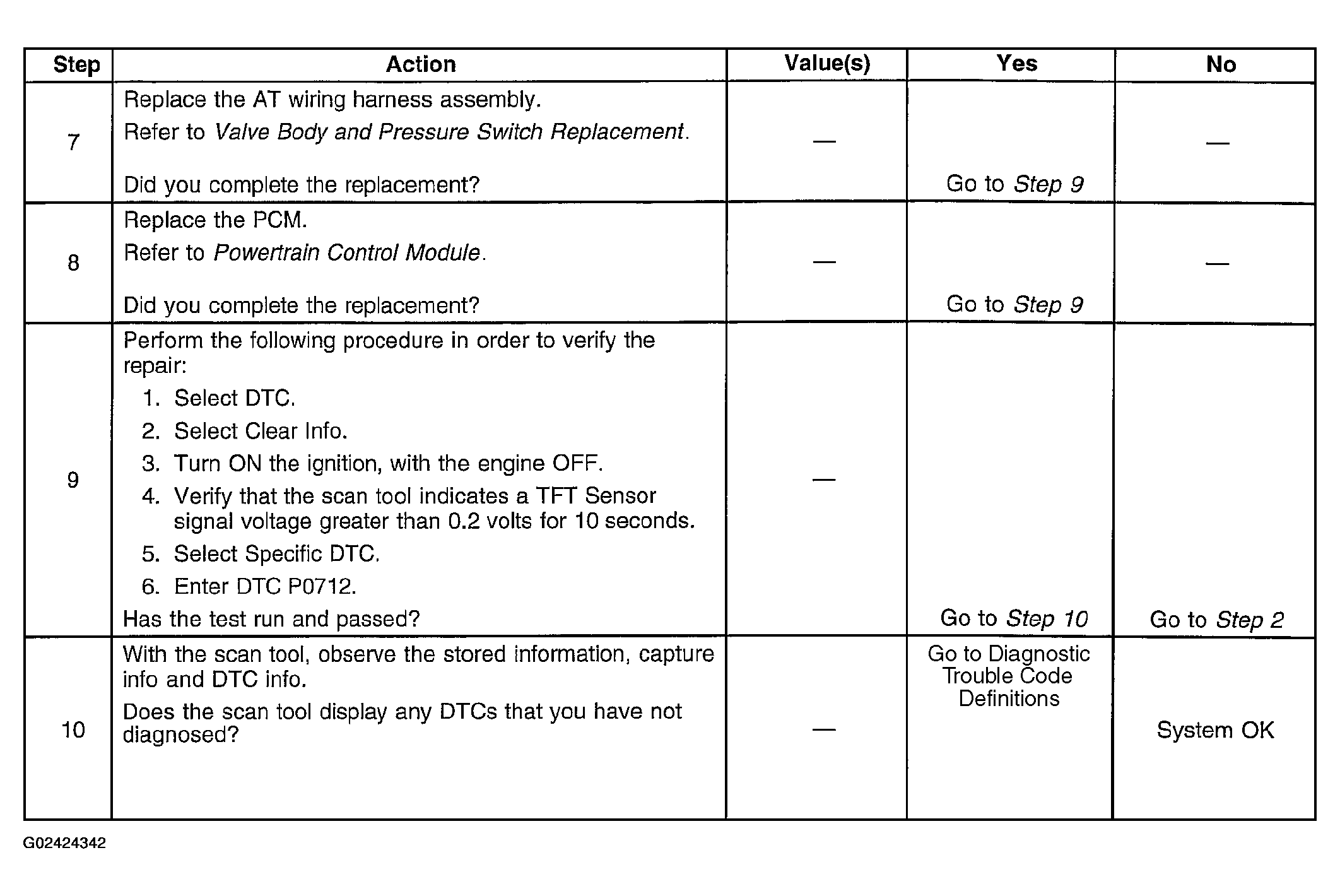

Fig 2: DTC P0712 (2 Of 2)
G02424342Courtesy of GENERAL MOTORS CORP.
