Forward Flush

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the supply and waste hoses from the vehicle cooler lines. Reverse the supply and waste hoses to provide a normal flow direction.

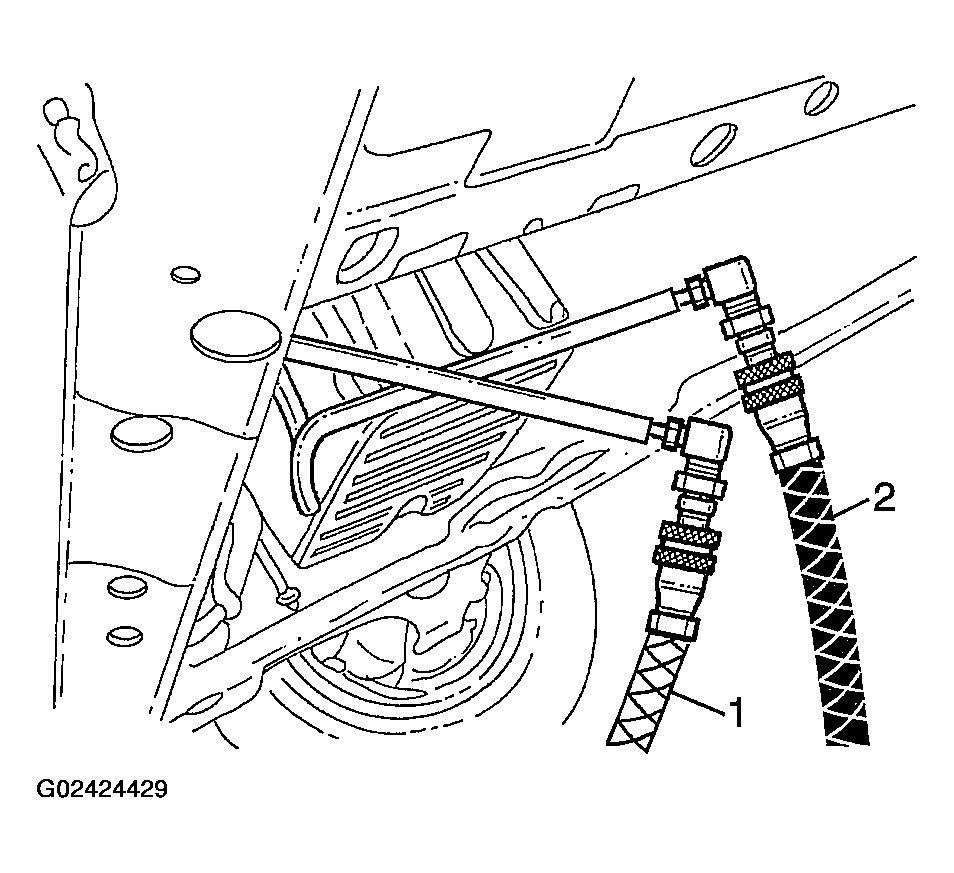

    Fig 1: Disconnecting Supply & Waste Hoses
    G02424429Courtesy of GENERAL MOTORS CORP.
  2. Turn the main function switch to the FLUSH position and allow machine to operate for 30 seconds.

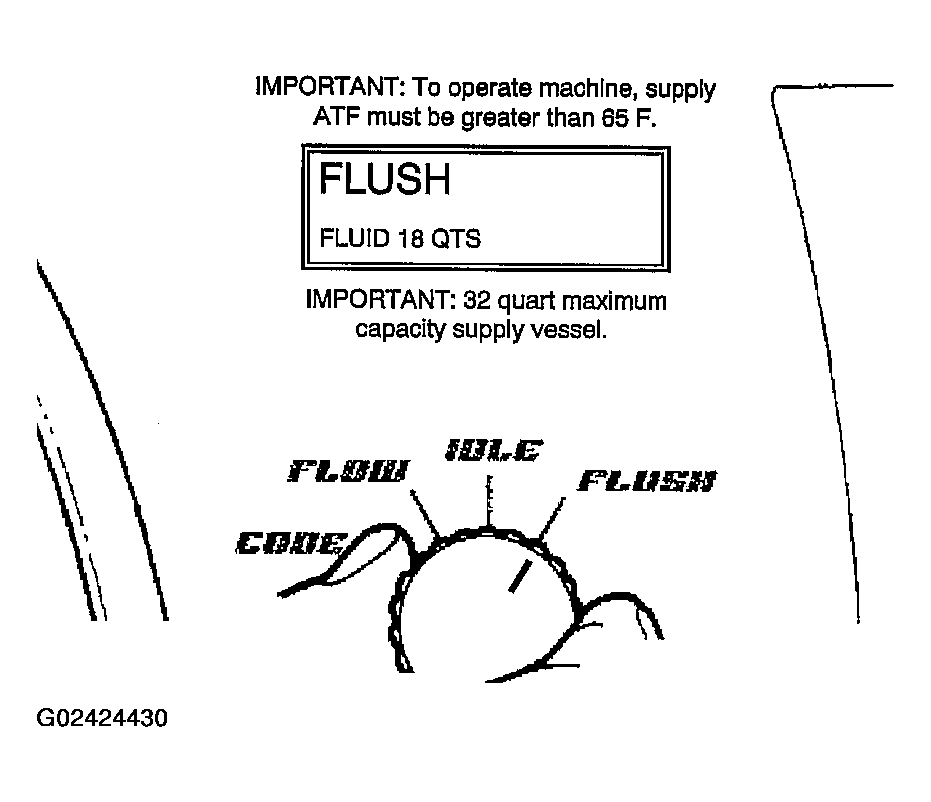

    3. Fig 2: Turning Main Function Switch To FLUSH Position
    G02424430Courtesy of GENERAL MOTORS CORP.
