Code Recording Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the main function switch to the CODE position.

    Important:

    • If power is interrupted prior to the recording of the seven-character code, the code will be lost and the flow rate test will need to be repeated.
    • The flow test must run for a minimum of 8-10 seconds and be above 0.5 gpm for a code to be generated.
  2. Record TESTED flow rate, temperature, cycle and seven-character flow code information on repair order.

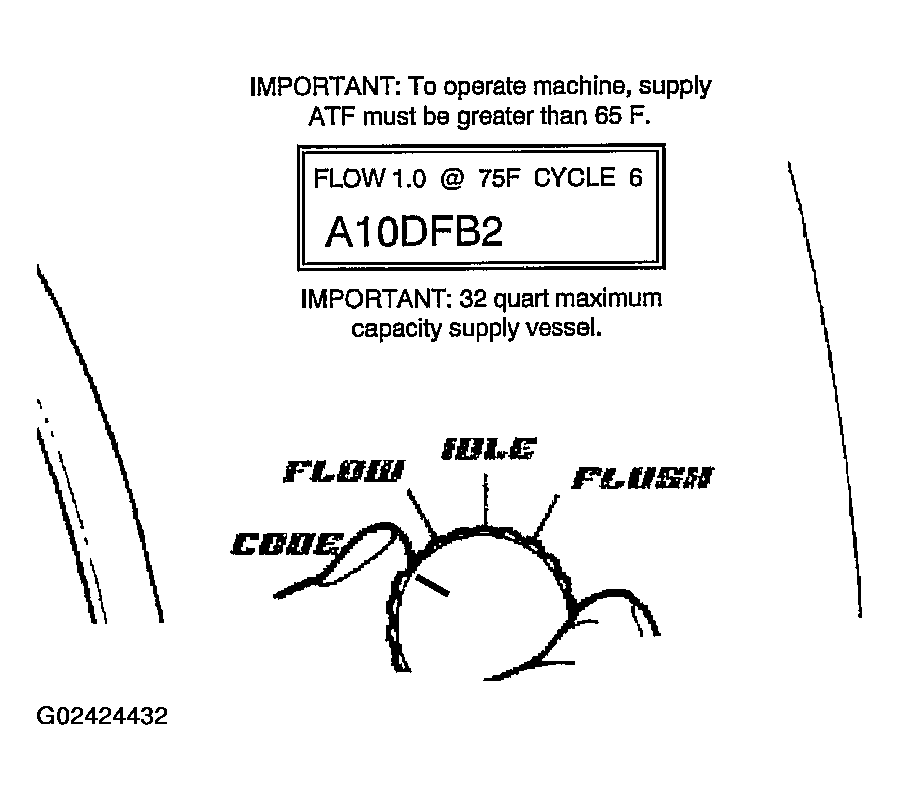

    3. Fig 1: Turning Main Function Switch To CODE Position
    G02424432Courtesy of GENERAL MOTORS CORP.
