Disassembled Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

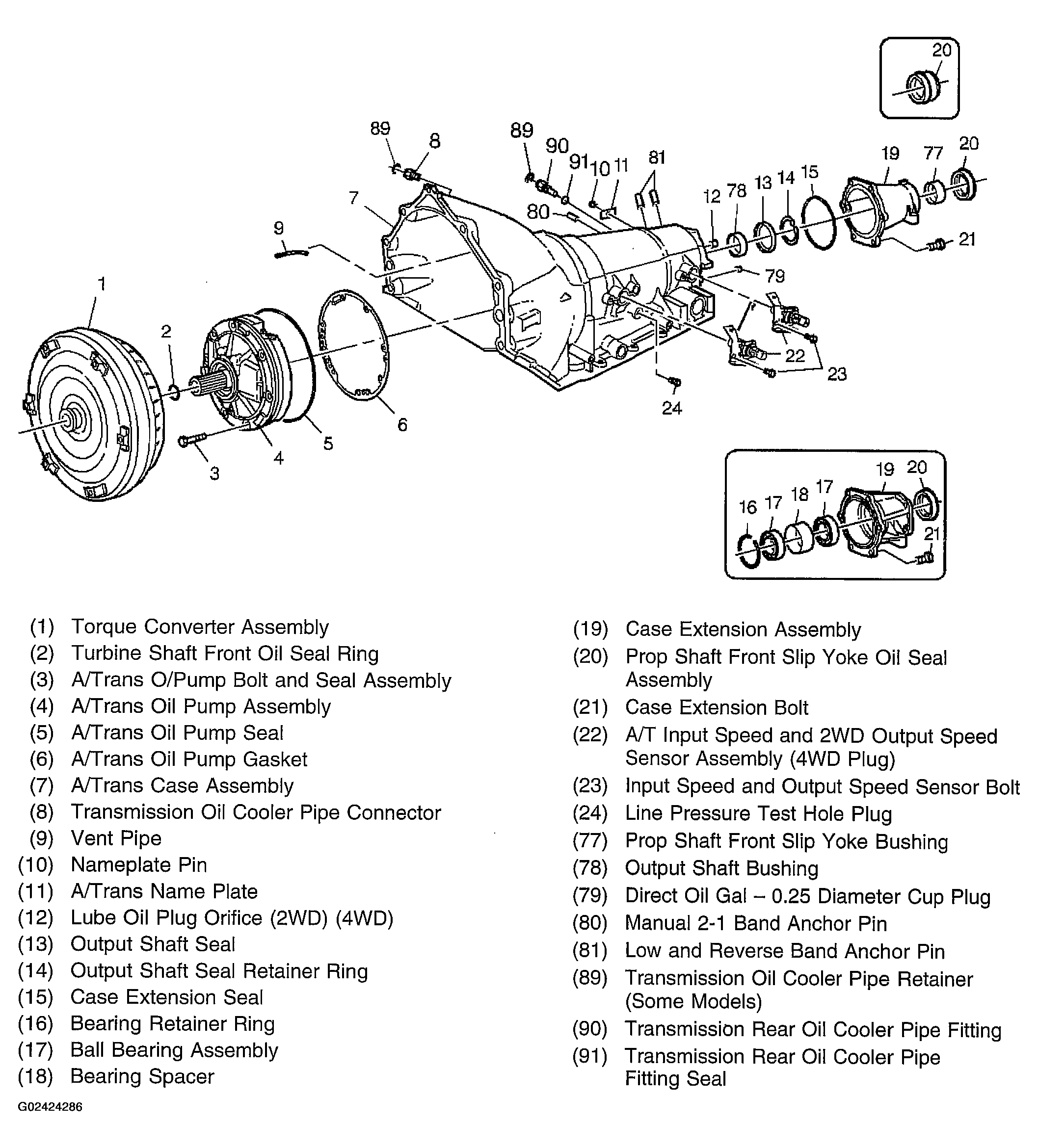

Fig 1: Case & Associated Parts (1 Of 3)

G02424286

Courtesy of GENERAL MOTORS CORP.

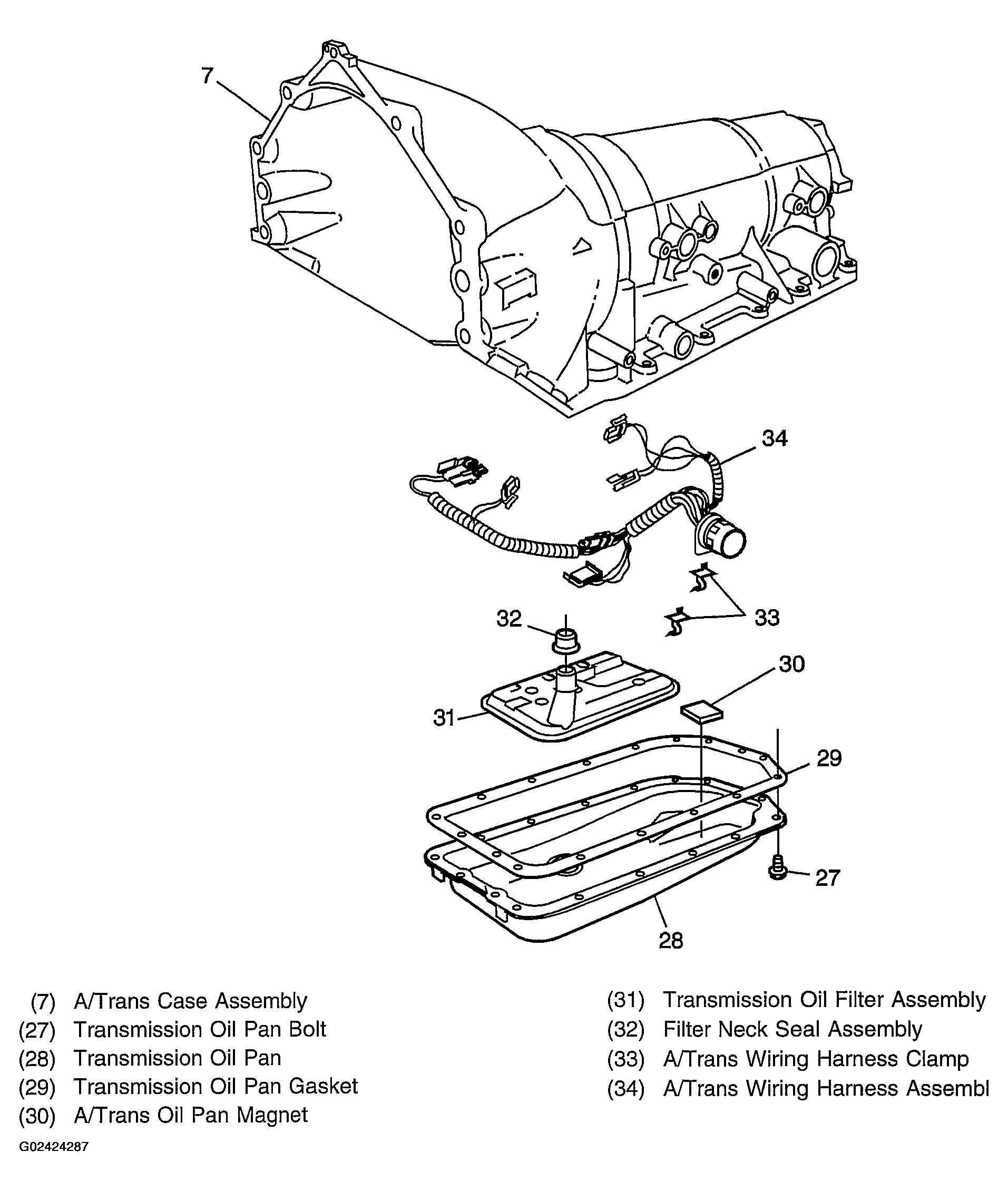

Fig 2: Case & Associated Parts (2 Of 3)

G02424287

Courtesy of GENERAL MOTORS CORP.

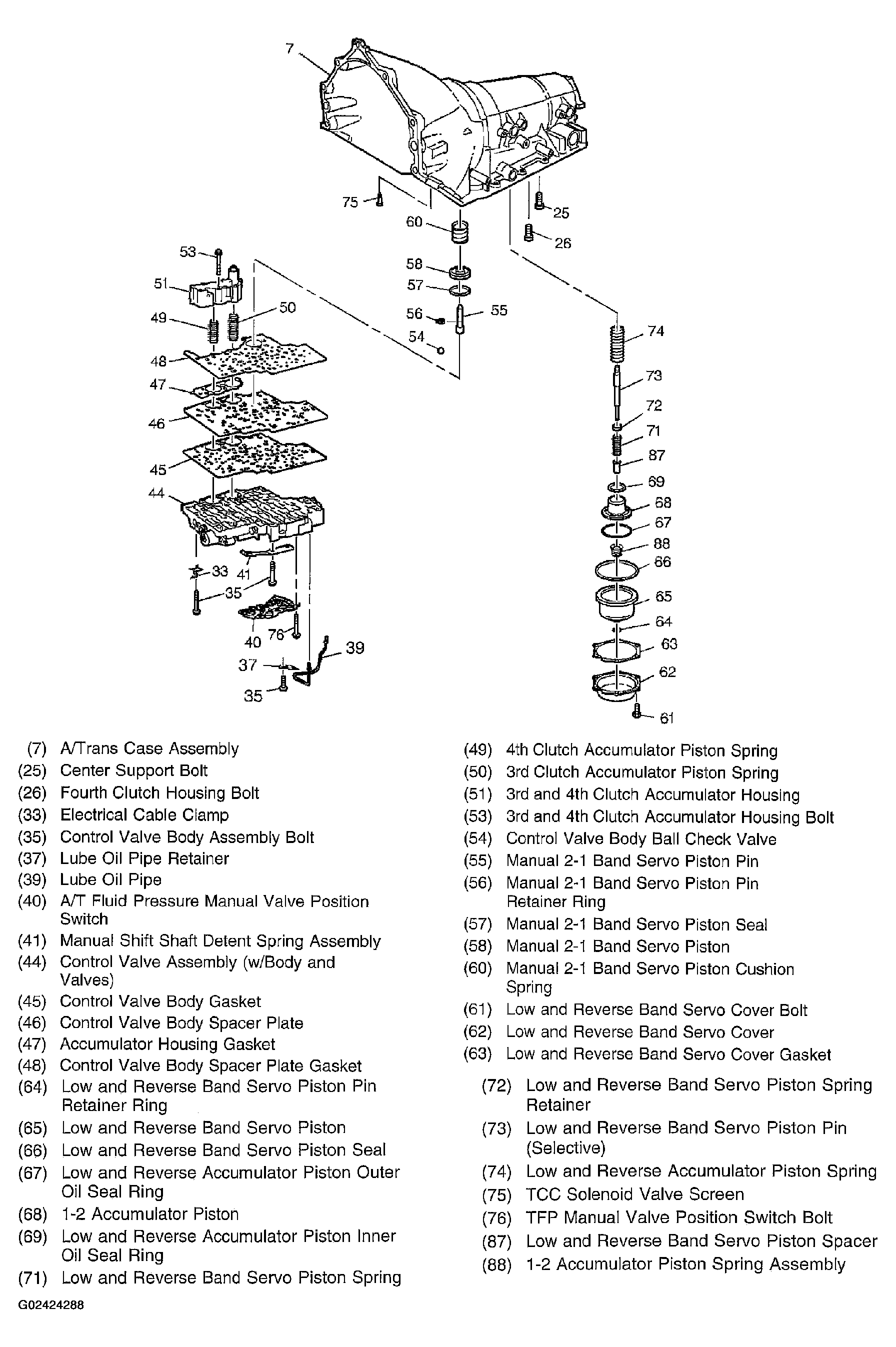

Fig 3: Case & Associated Parts (3 Of 3)

G02424288

Courtesy of GENERAL MOTORS CORP.

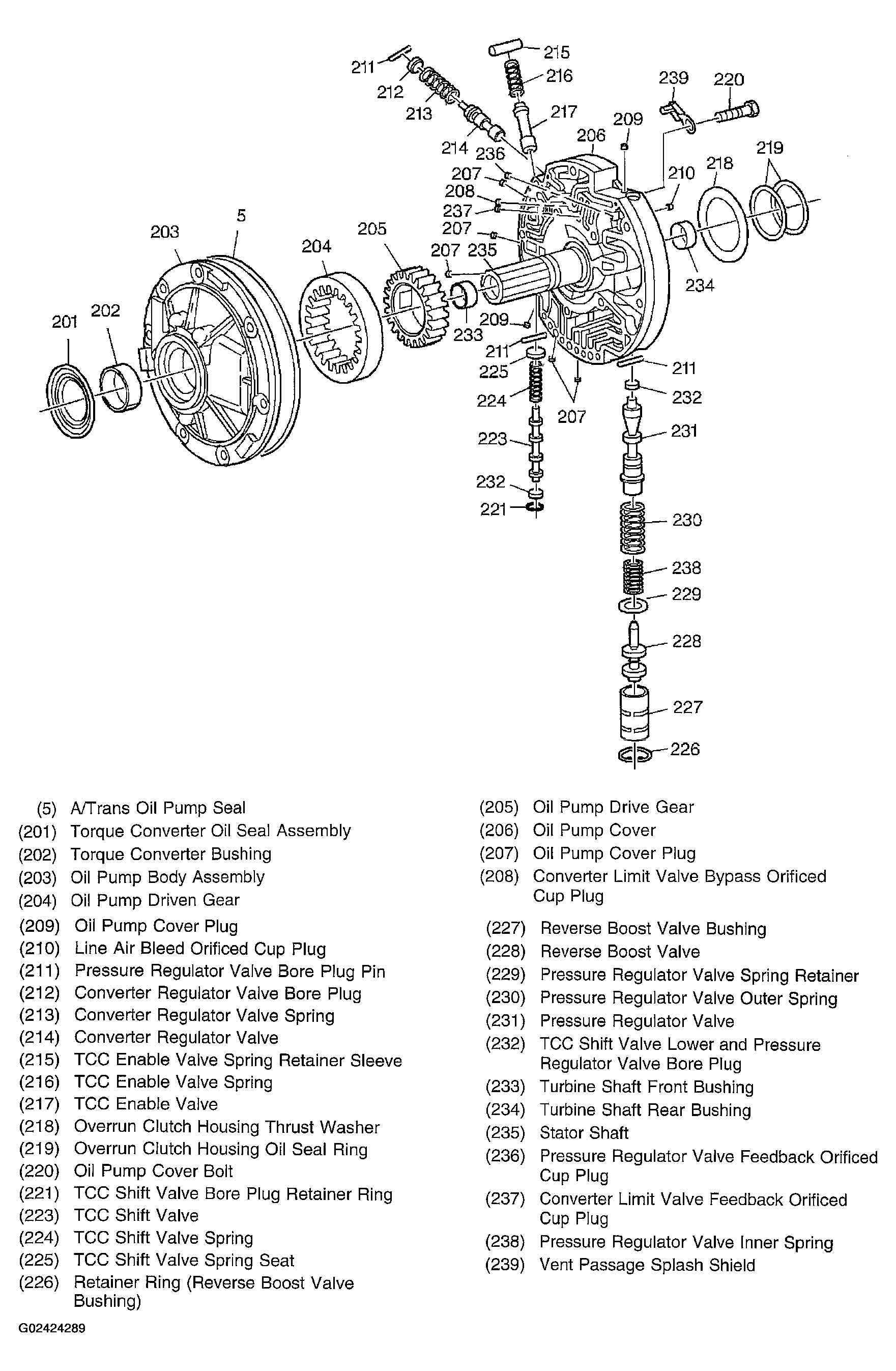

Fig 4: Oil Pump Assembly

G02424289

Courtesy of GENERAL MOTORS CORP.

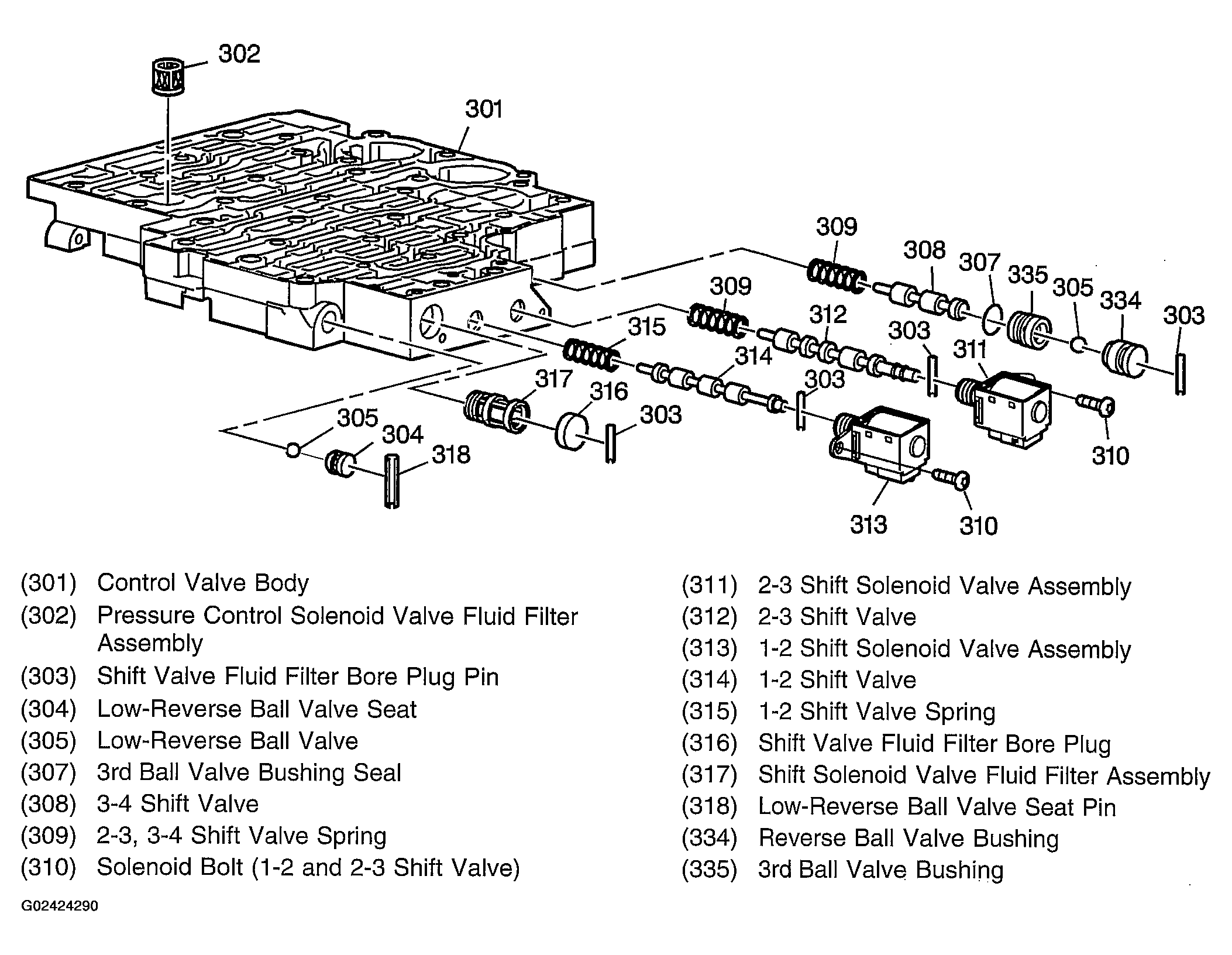

Fig 5: Control Valve Body Assembly (1 Of 2)

G02424290

Courtesy of GENERAL MOTORS CORP.

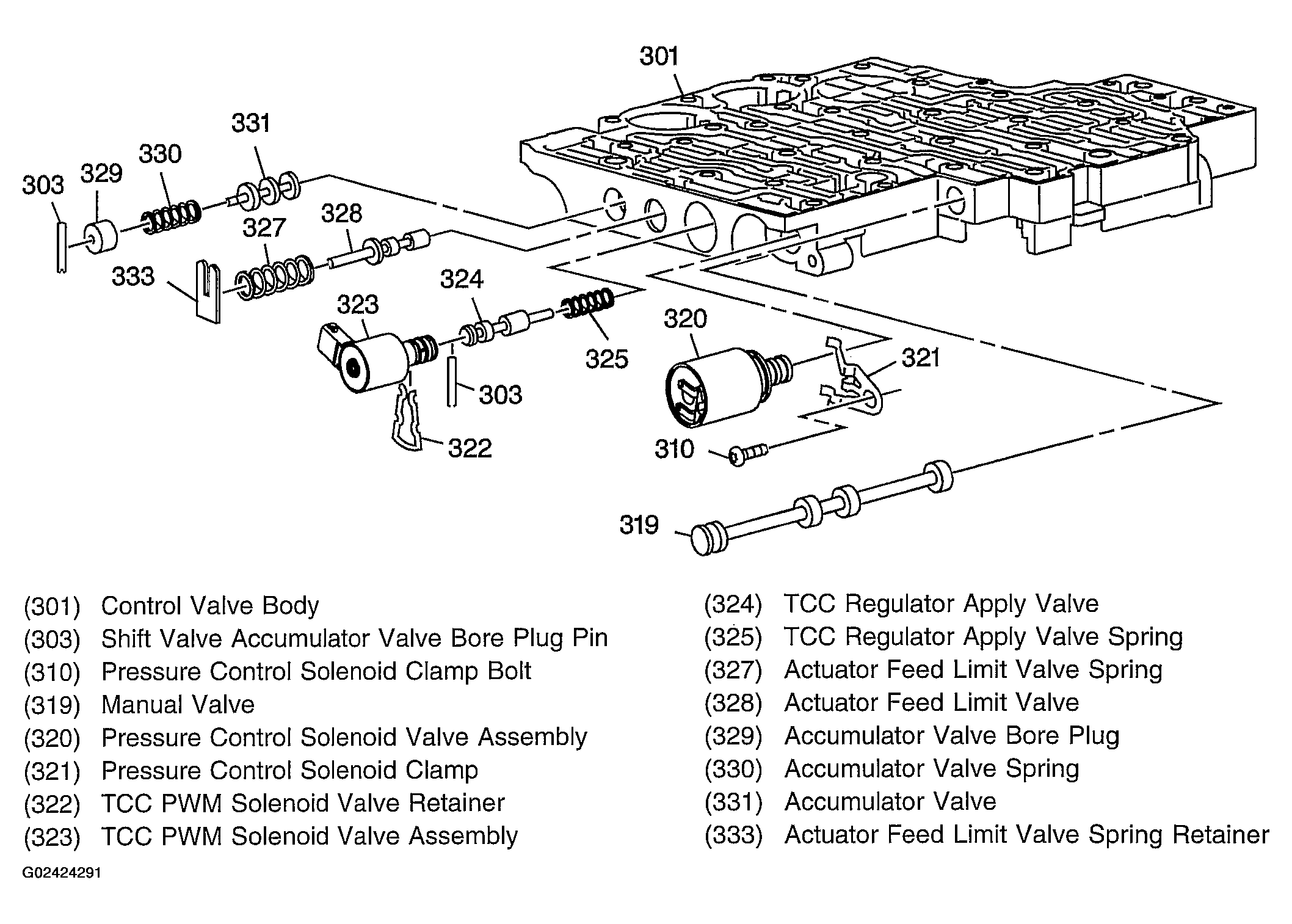

Fig 6: Control Valve Body Assembly (2 Of 2)

G02424291

Courtesy of GENERAL MOTORS CORP.

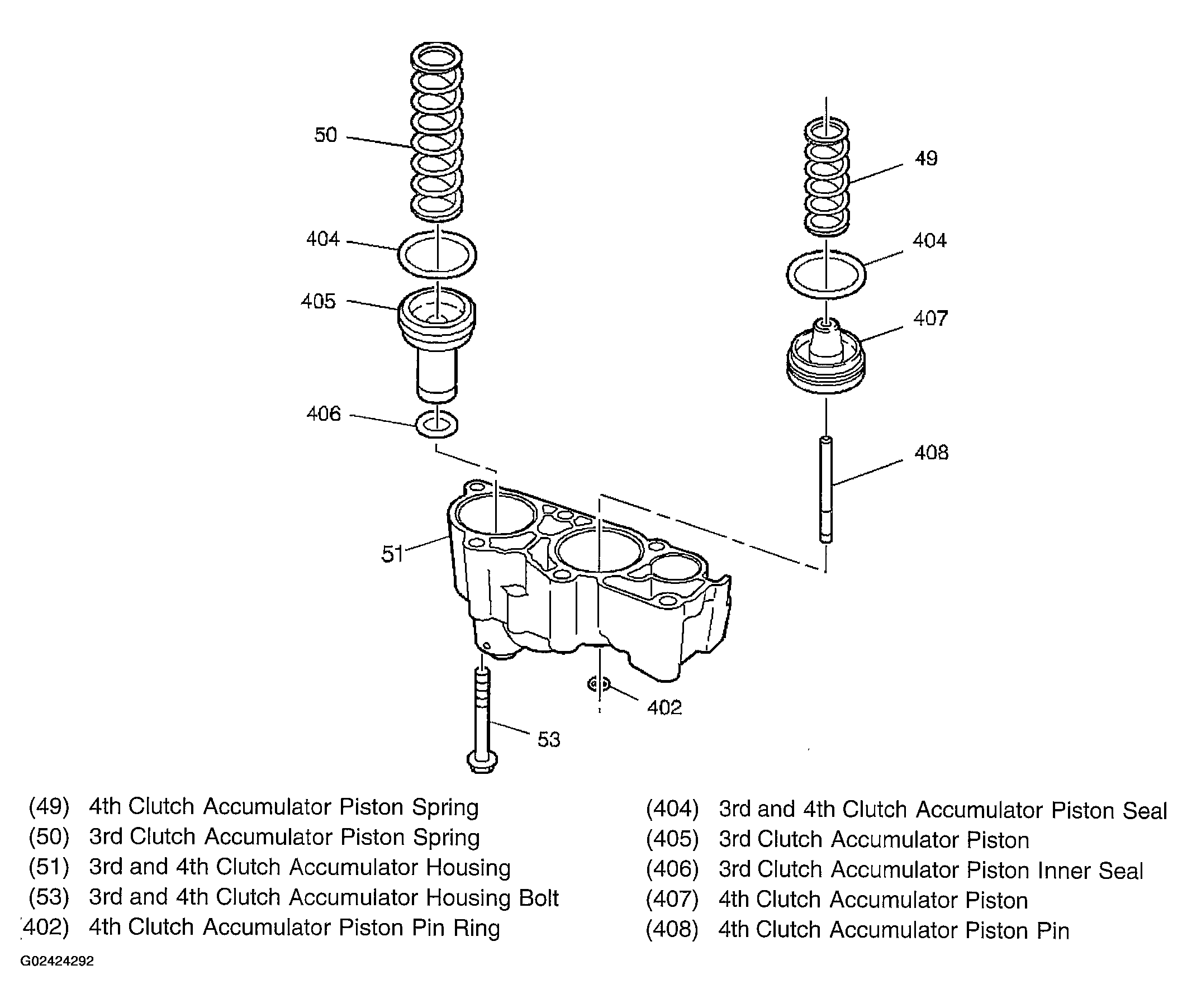

Fig 7: Accumulator Assembly

G02424292

Courtesy of GENERAL MOTORS CORP.

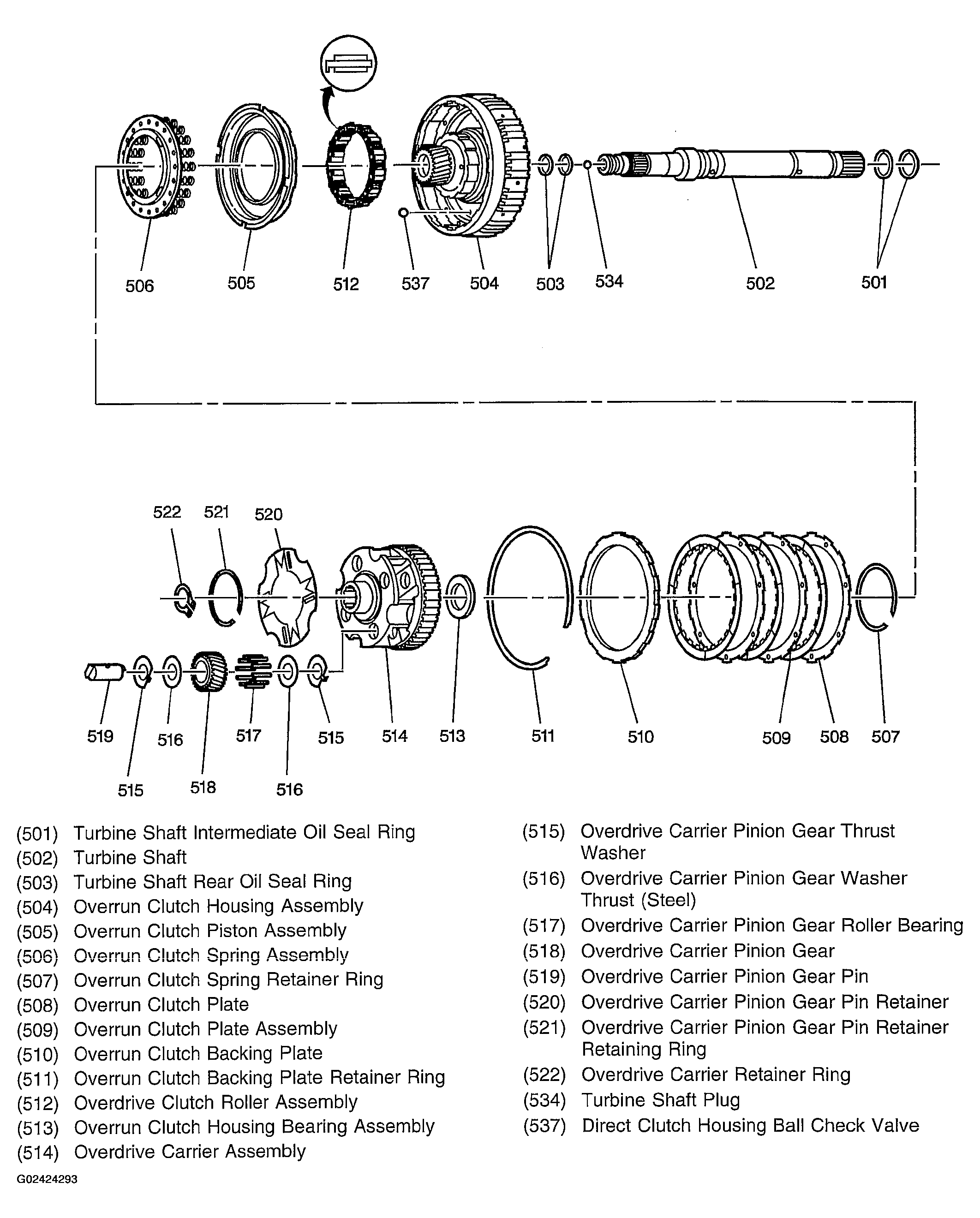

Fig 8: Overrun Clutch Assembly

G02424293

Courtesy of GENERAL MOTORS CORP.

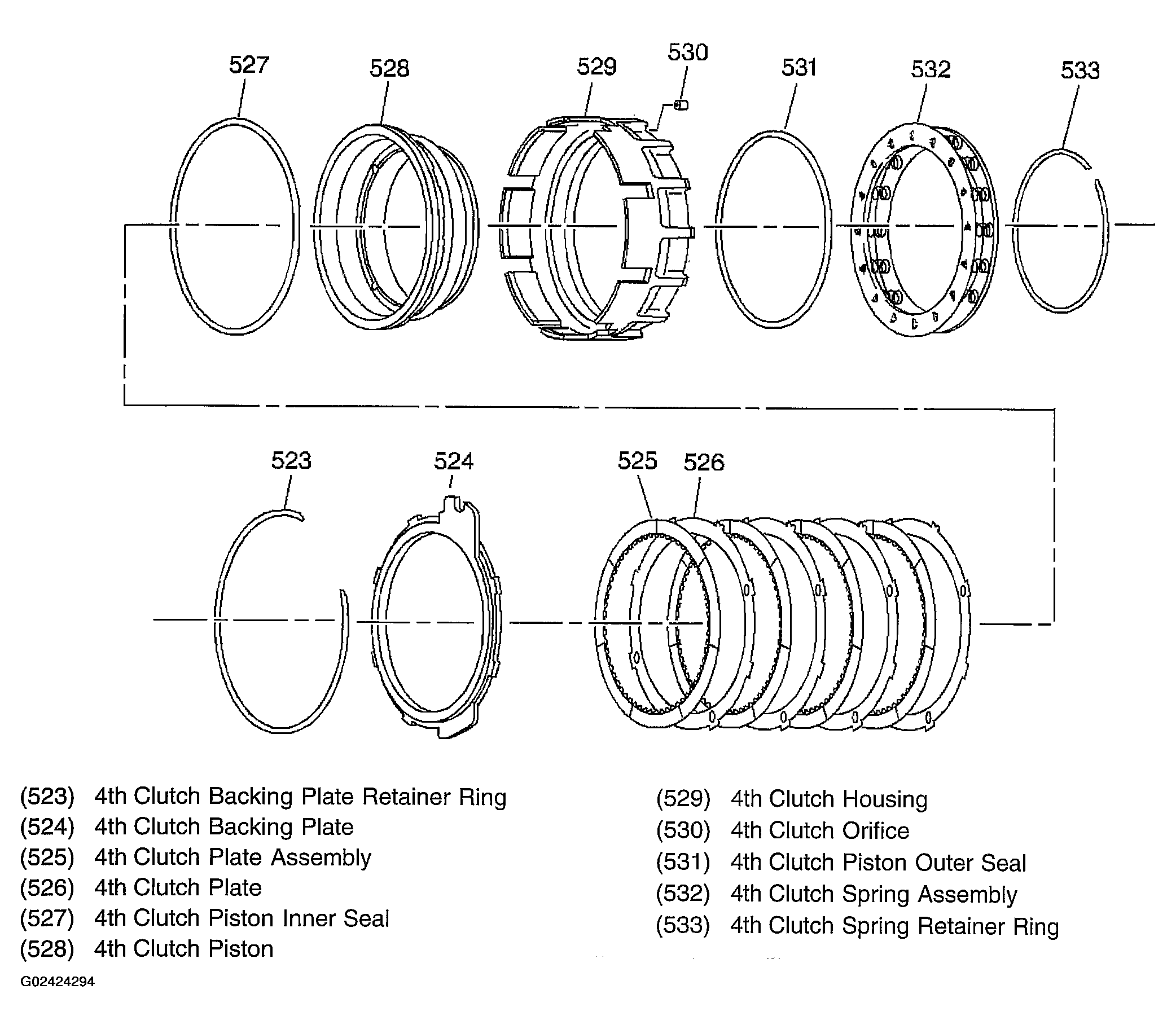

Fig 9: Fourth Clutch Assembly

G02424294

Courtesy of GENERAL MOTORS CORP.

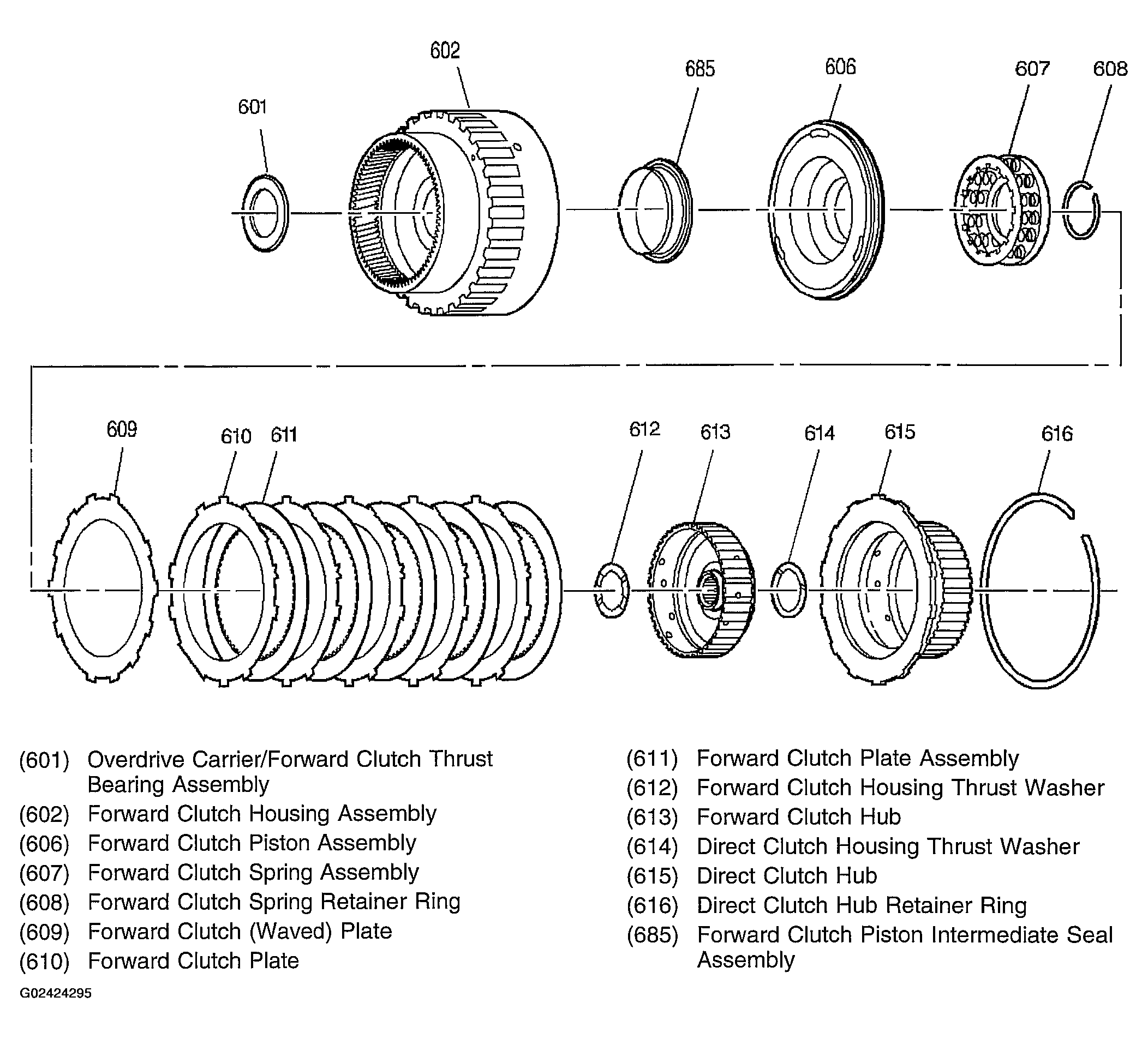

Fig 10: Forward Clutch Assembly

G02424295

Courtesy of GENERAL MOTORS CORP.

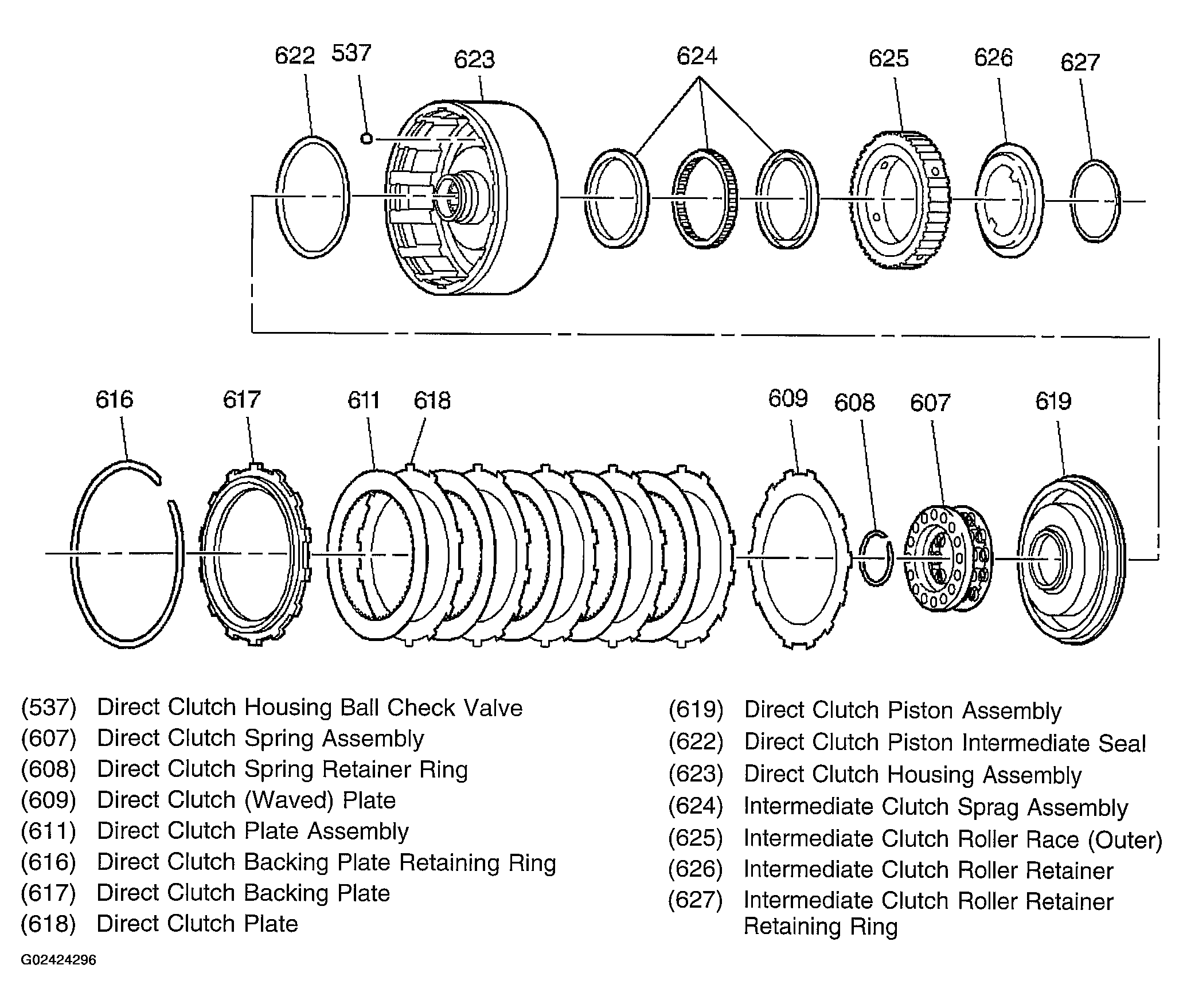

Fig 11: Direct Clutch & Intermediate Sprag Assembly

G02424296

Courtesy of GENERAL MOTORS CORP.

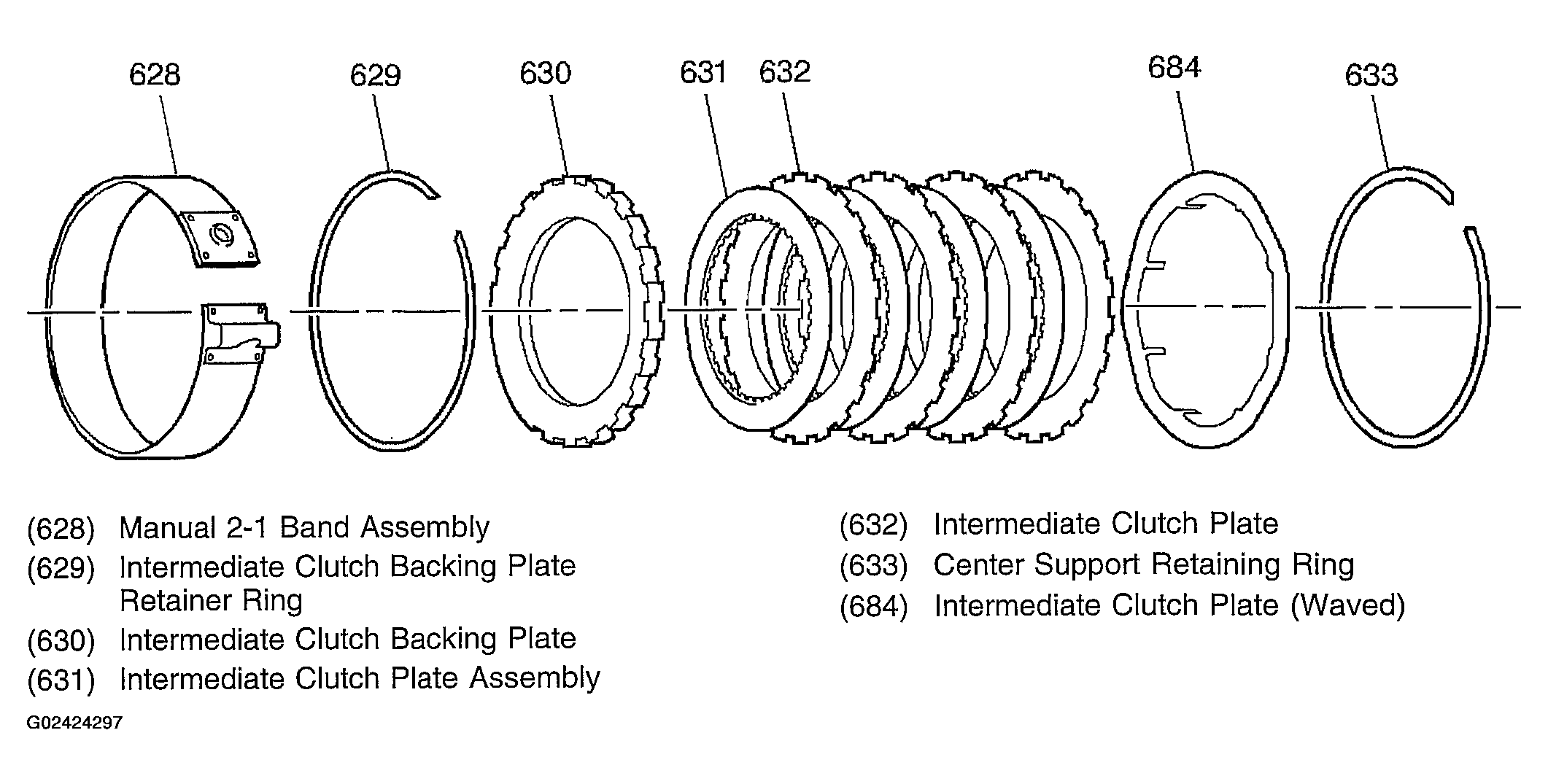

Fig 12: Intermediate Clutch Plates & Manual 2-1 Band Assembly

G02424297

Courtesy of GENERAL MOTORS CORP.

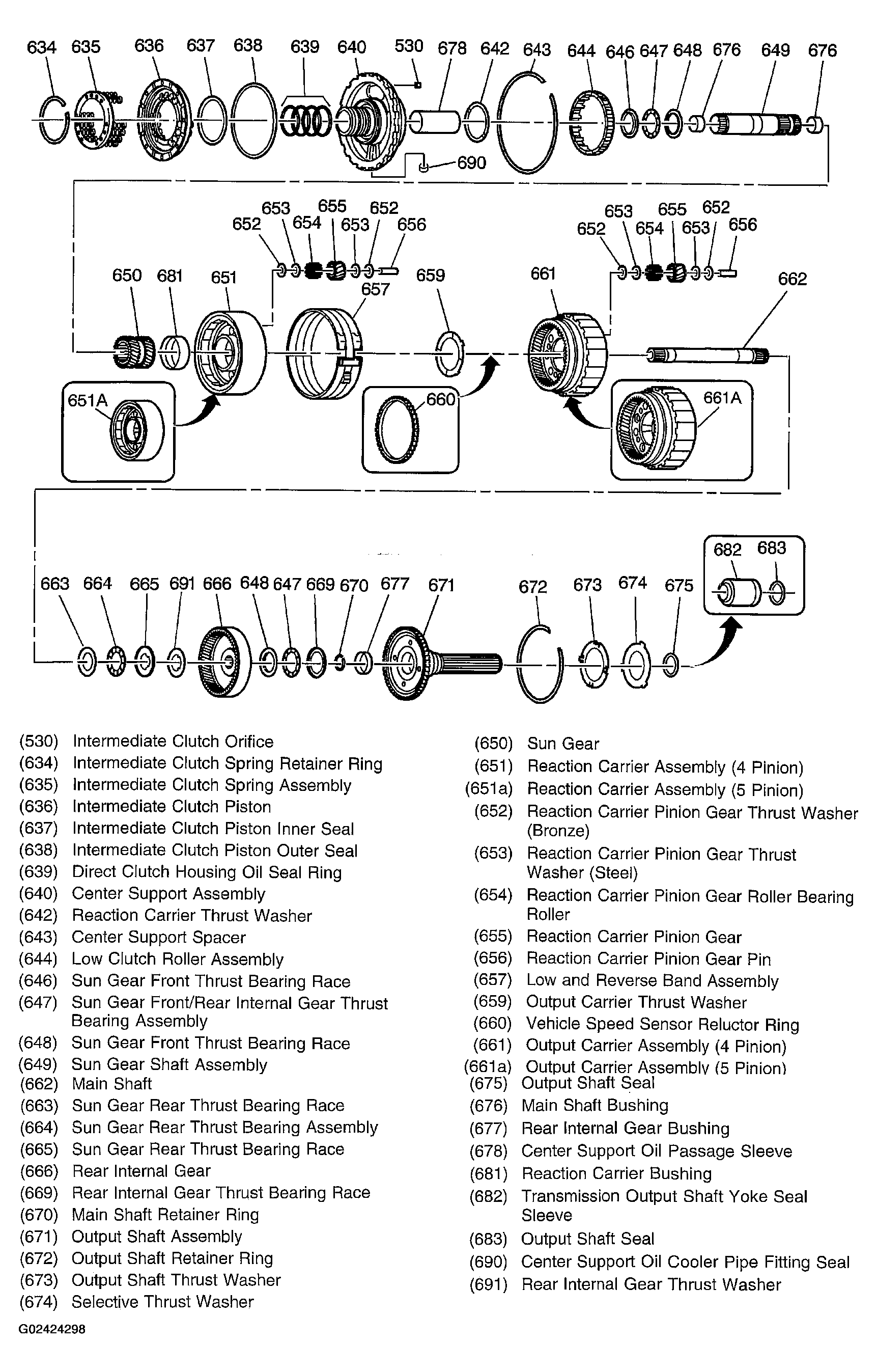

Fig 13: Center Support & Gear Unit Assembly

G02424298

Courtesy of GENERAL MOTORS CORP.

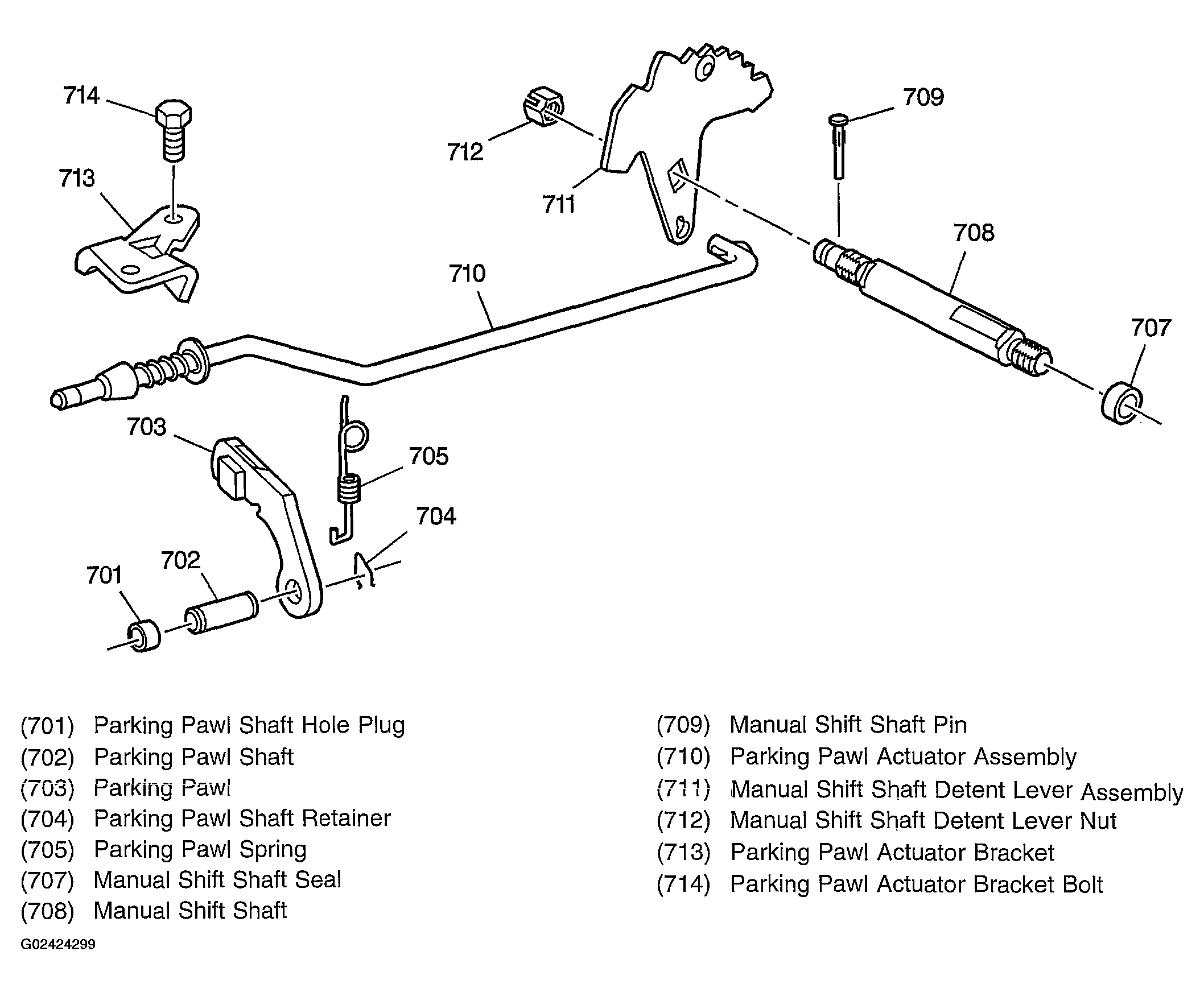

Fig 14: Parking Lock & Actuator Assembly

G02424299

Courtesy of GENERAL MOTORS CORP.
