Component Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

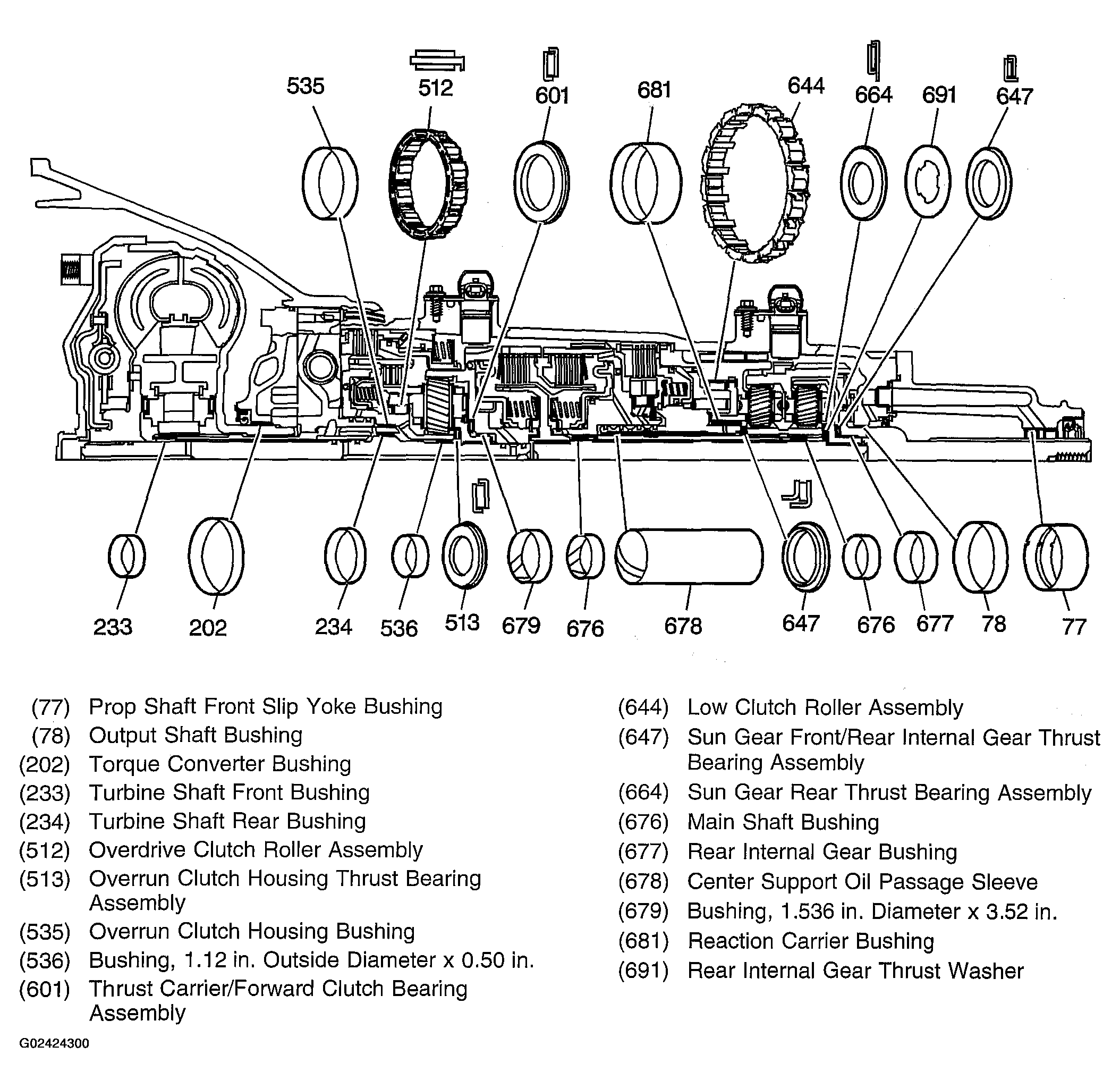

Fig 1: Bushing & Bearing Locations

Courtesy of GENERAL MOTORS CORP.

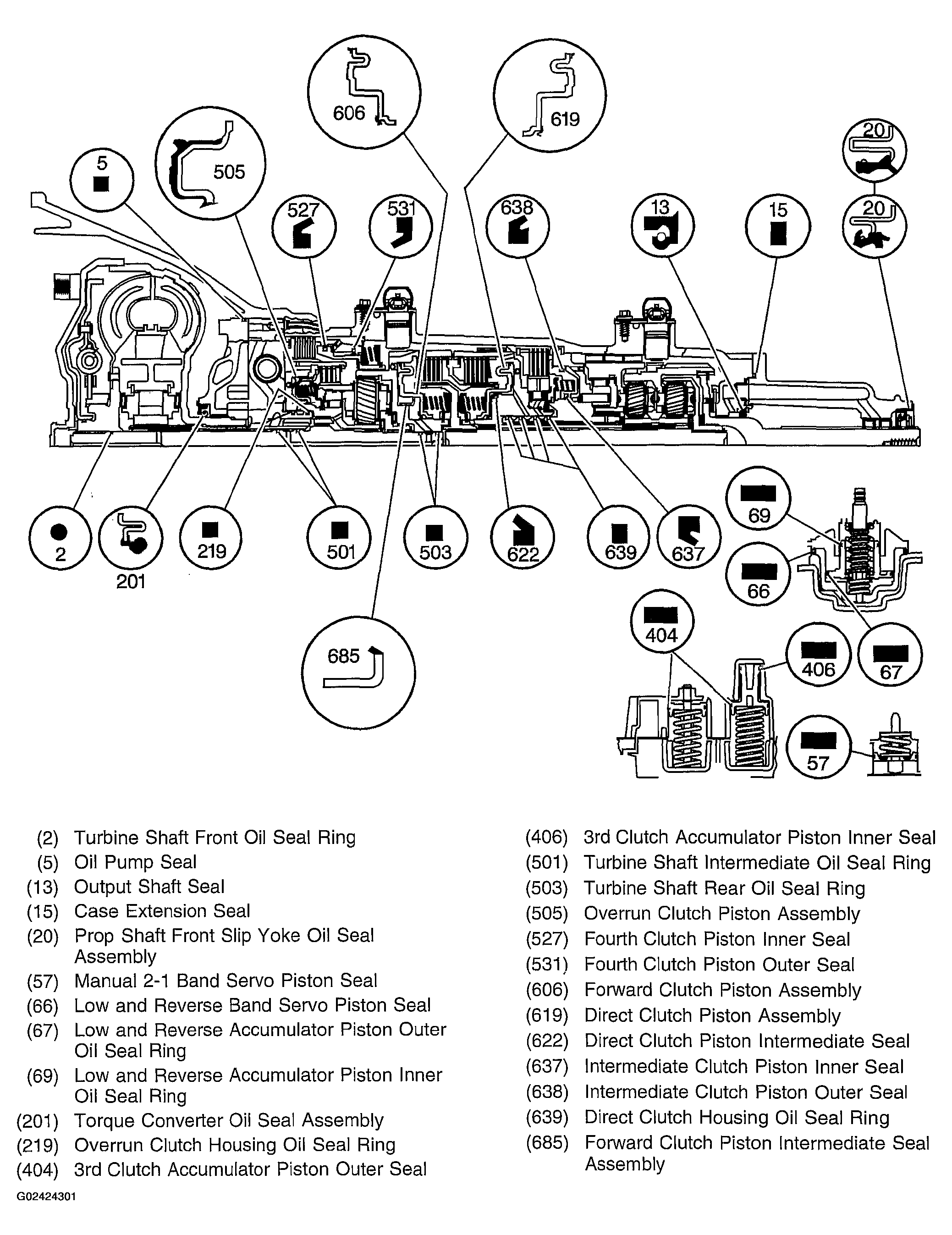

Fig 2: Seals

Courtesy of GENERAL MOTORS CORP.

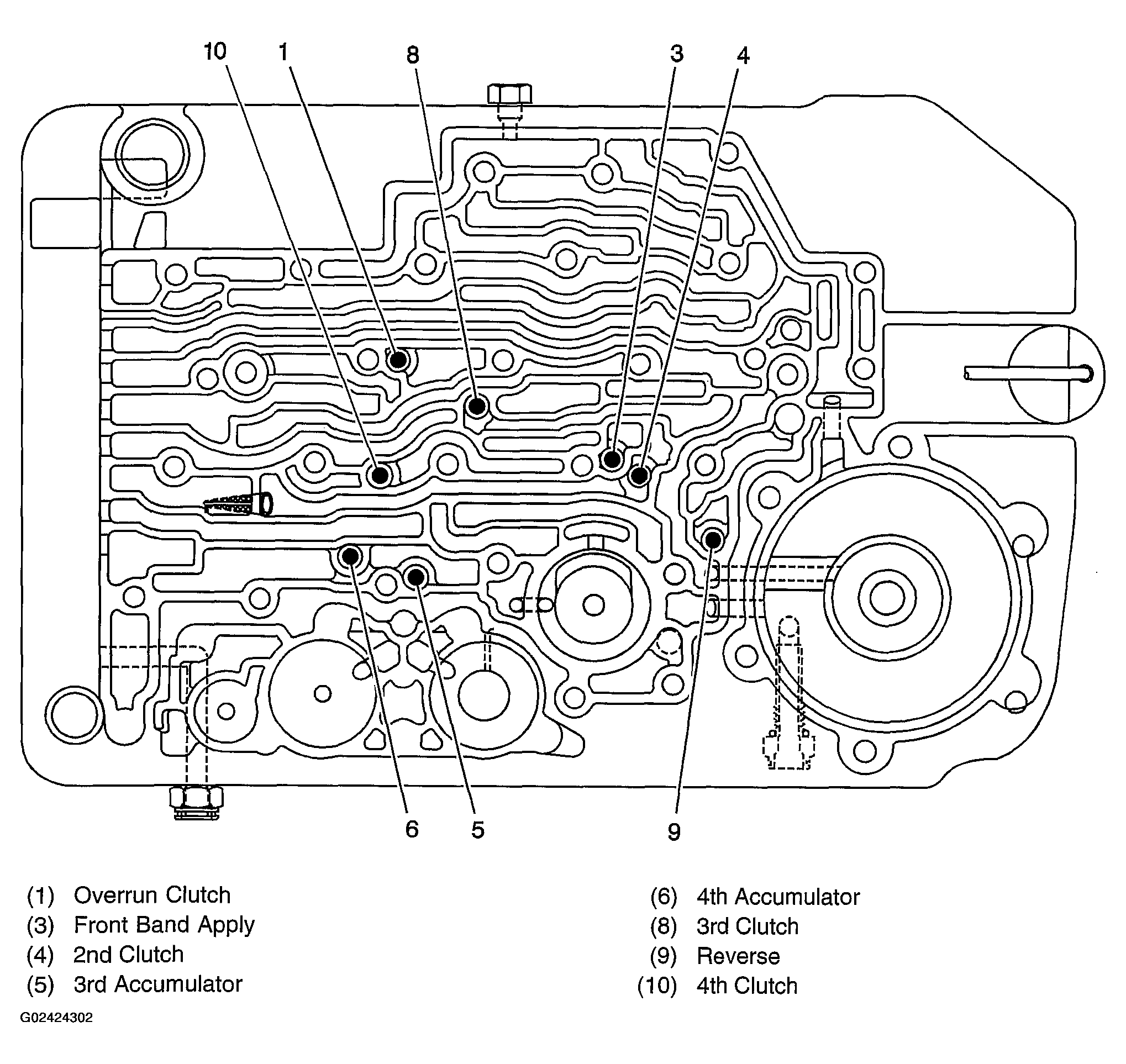

Fig 3: Ball Check Valve Locations (Case, Control Valve Body Side)

Courtesy of GENERAL MOTORS CORP.

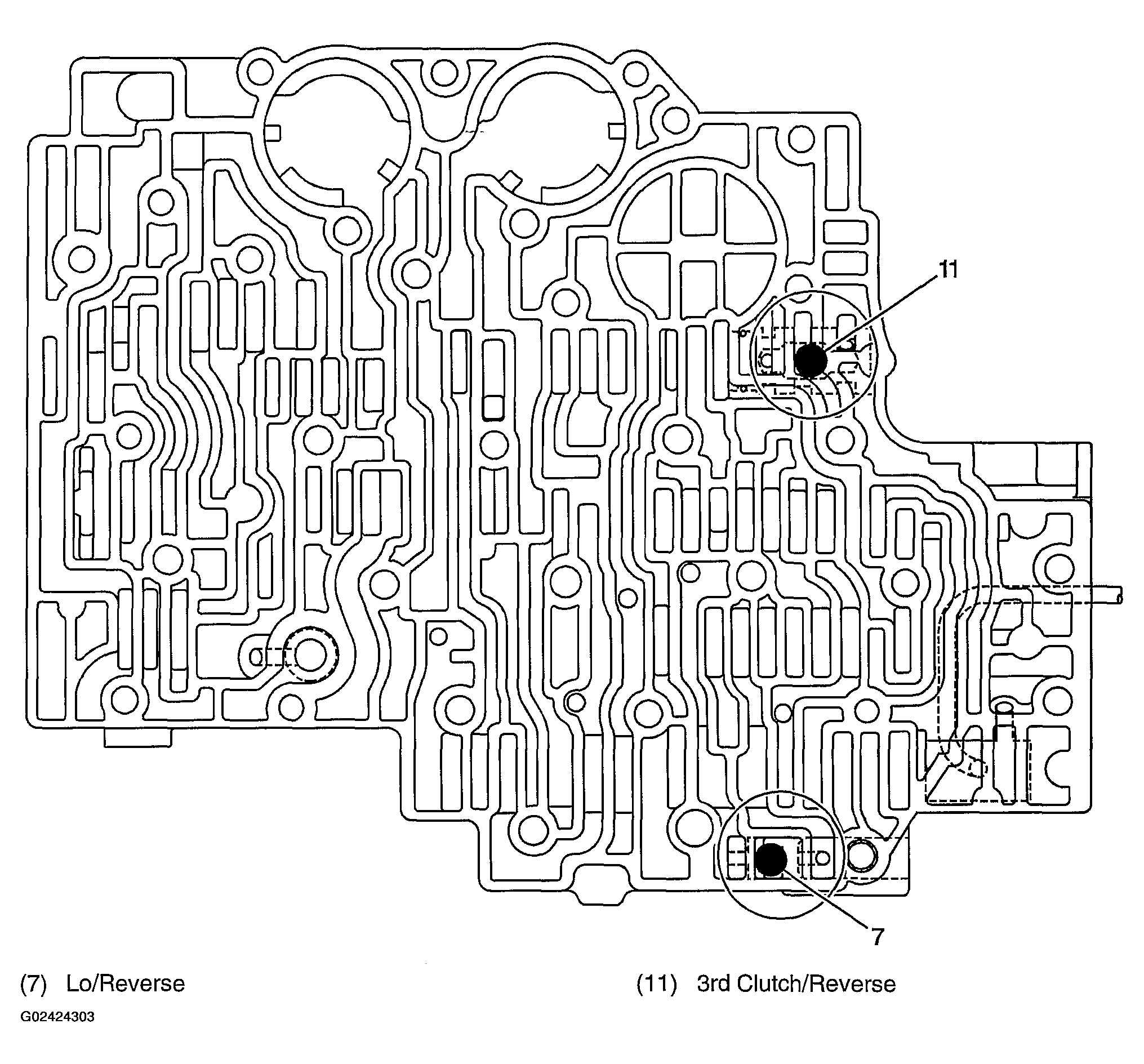

Fig 4: Ball Check Valve Locations (Control Valve Body, Case Side)

Courtesy of GENERAL MOTORS CORP.
