Special Tools and Equipment

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

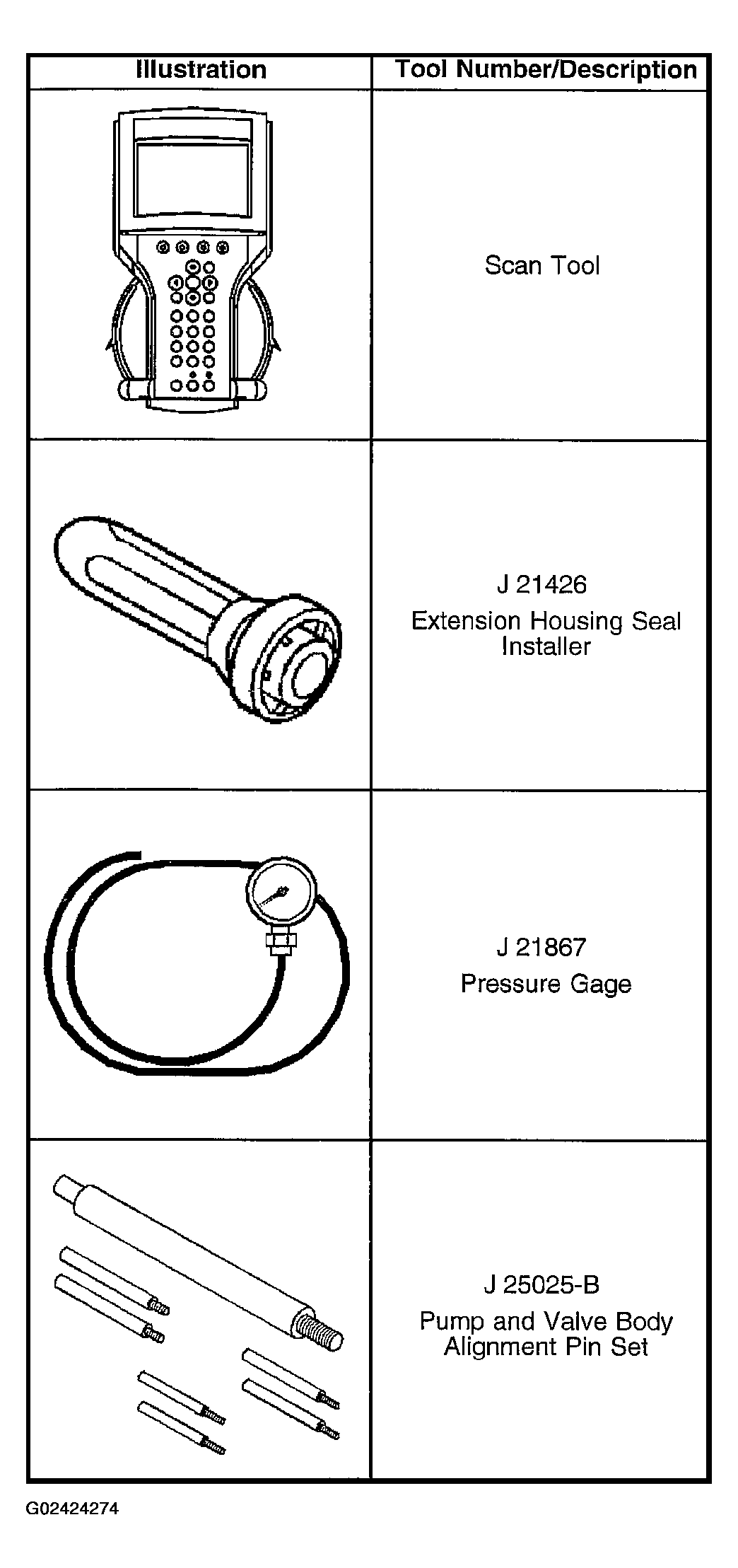

Fig 1: Scan Tool & Special Tools J 21426 To J 25025-B

Courtesy of GENERAL MOTORS CORP.

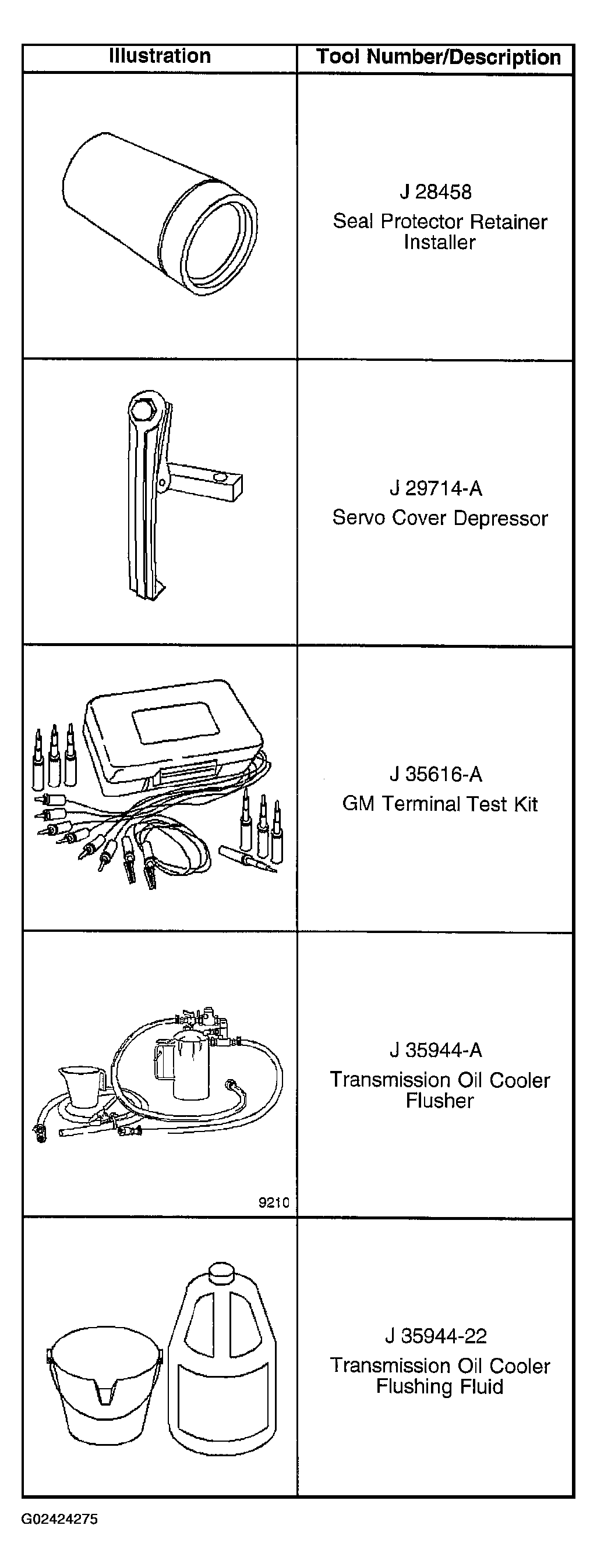

Fig 2: Special Tools J 28458 To J 35944-22

Courtesy of GENERAL MOTORS CORP.

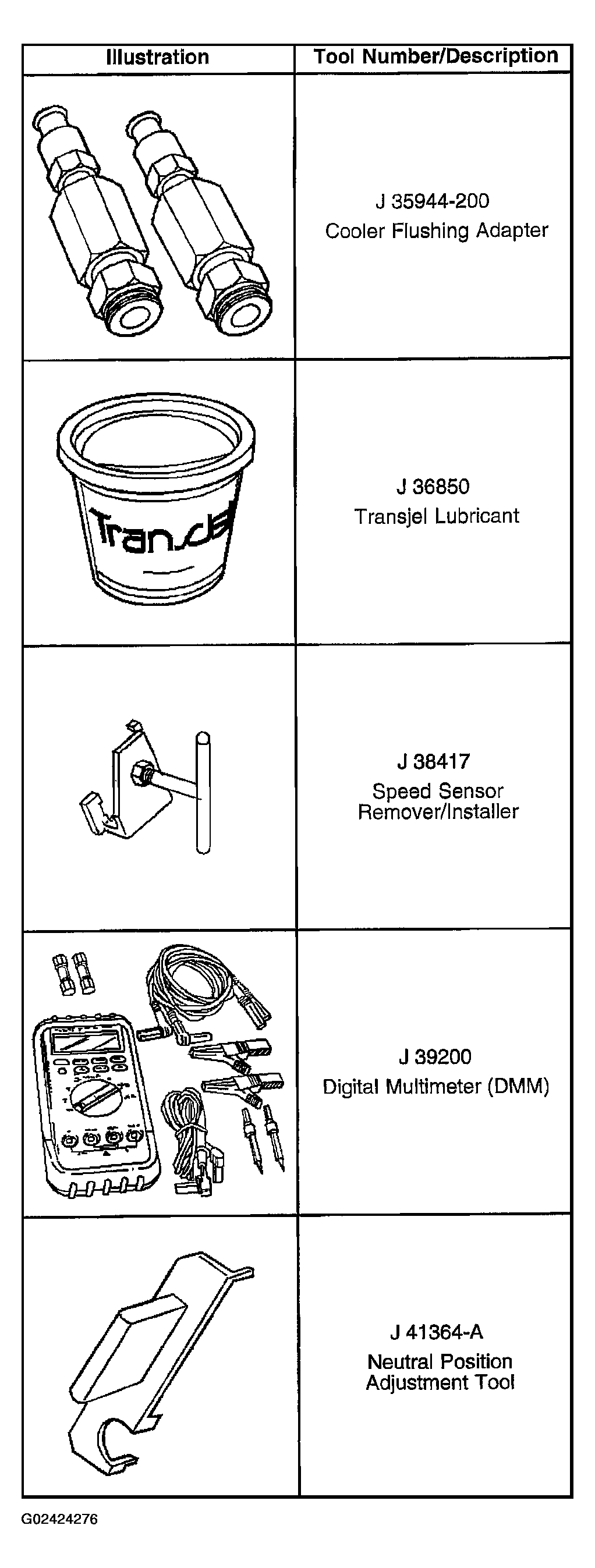

Fig 3: Special Tools J 35944-200 To J 41364-A

Courtesy of GENERAL MOTORS CORP.

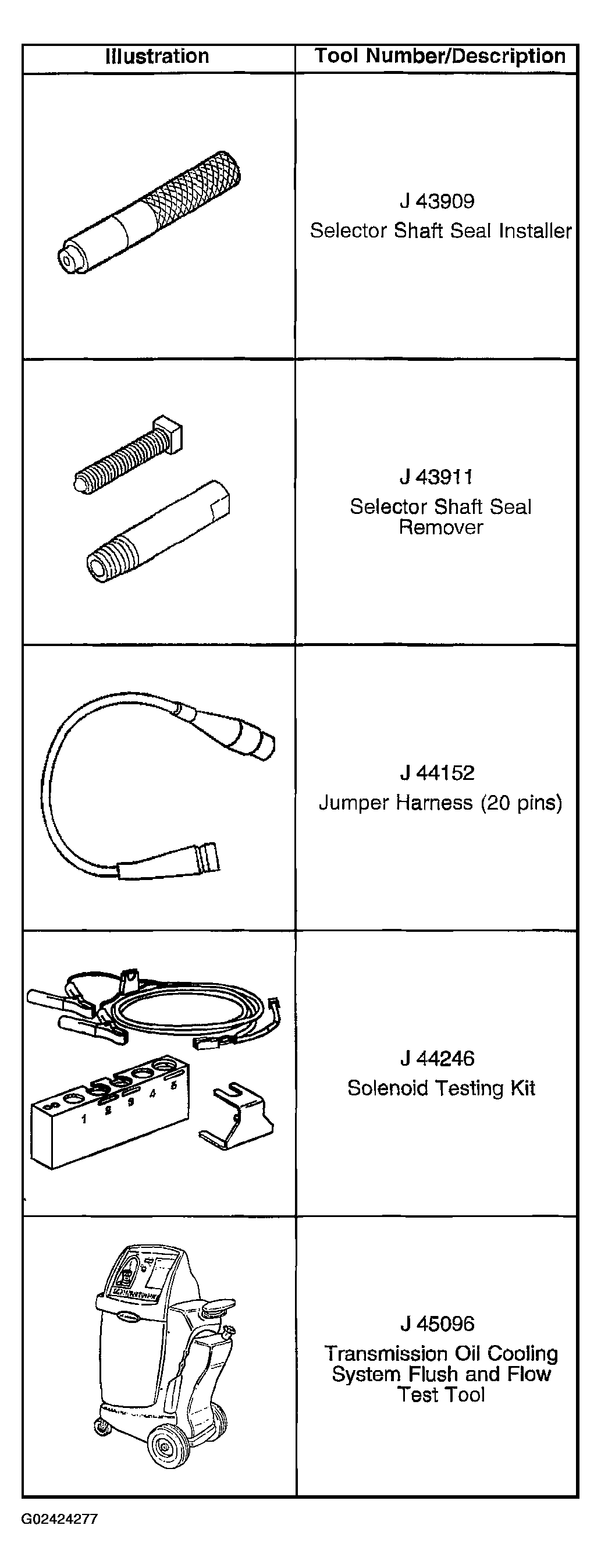

Fig 4: Special Tools J 43909 To J 45096

Courtesy of GENERAL MOTORS CORP.
