Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the electrical connector from the speed sensor.
  3. Remove the bolt.
  4. Remove the speed sensor and the O-ring seal.
  5. Inspect the seal and the transmission case. Replace the seal, if necessary.

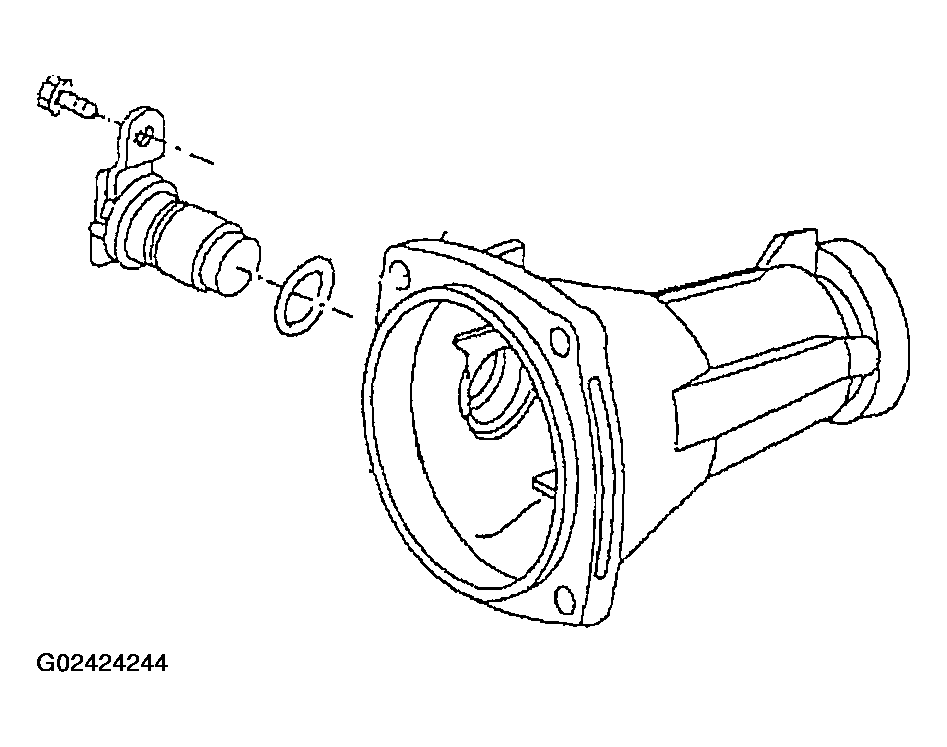

    Fig 1: Removing Bolt, Vehicle Speed Sensor & O-Ring Seal
    G02424244Courtesy of GENERAL MOTORS CORP.
