Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the checkballs (1-7) in the valve body.

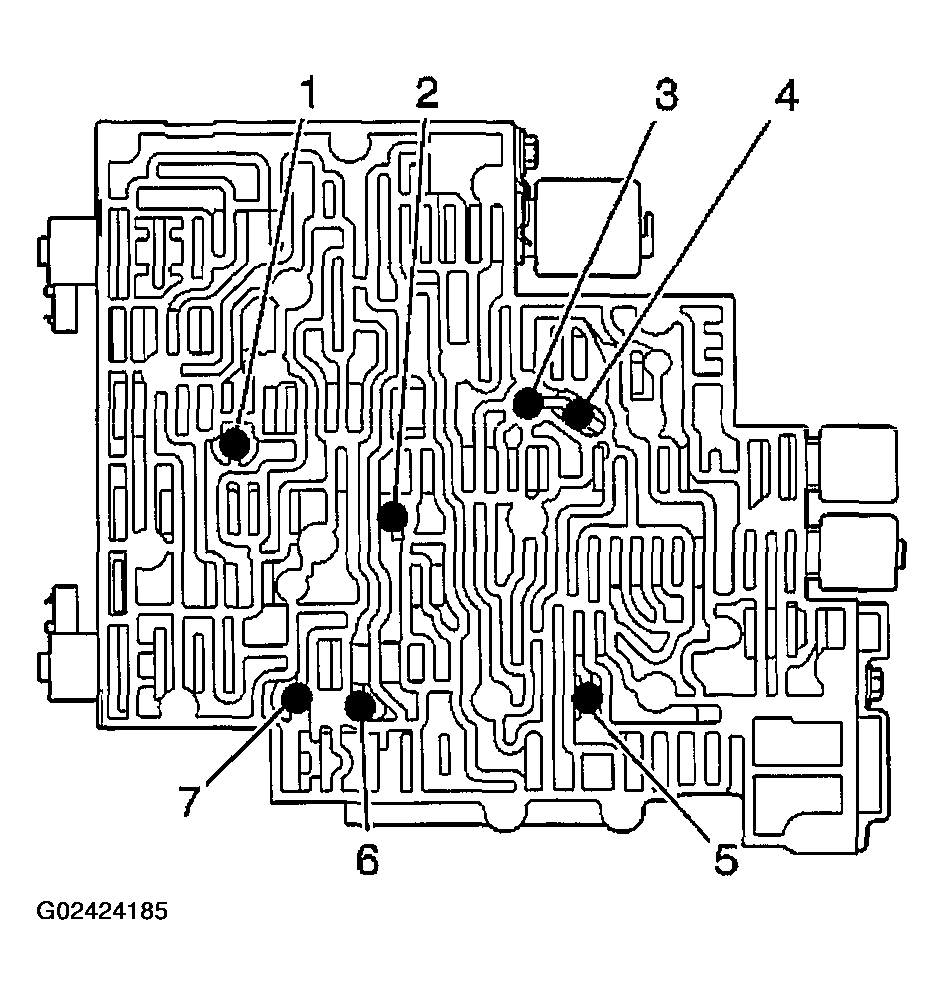

    Fig 1: Installing Checkballs In Valve Body
    G02424185Courtesy of GENERAL MOTORS CORP.
  2. Install the control valve body to the transmission case while simultaneously connecting the manual valve link to the manual valve.

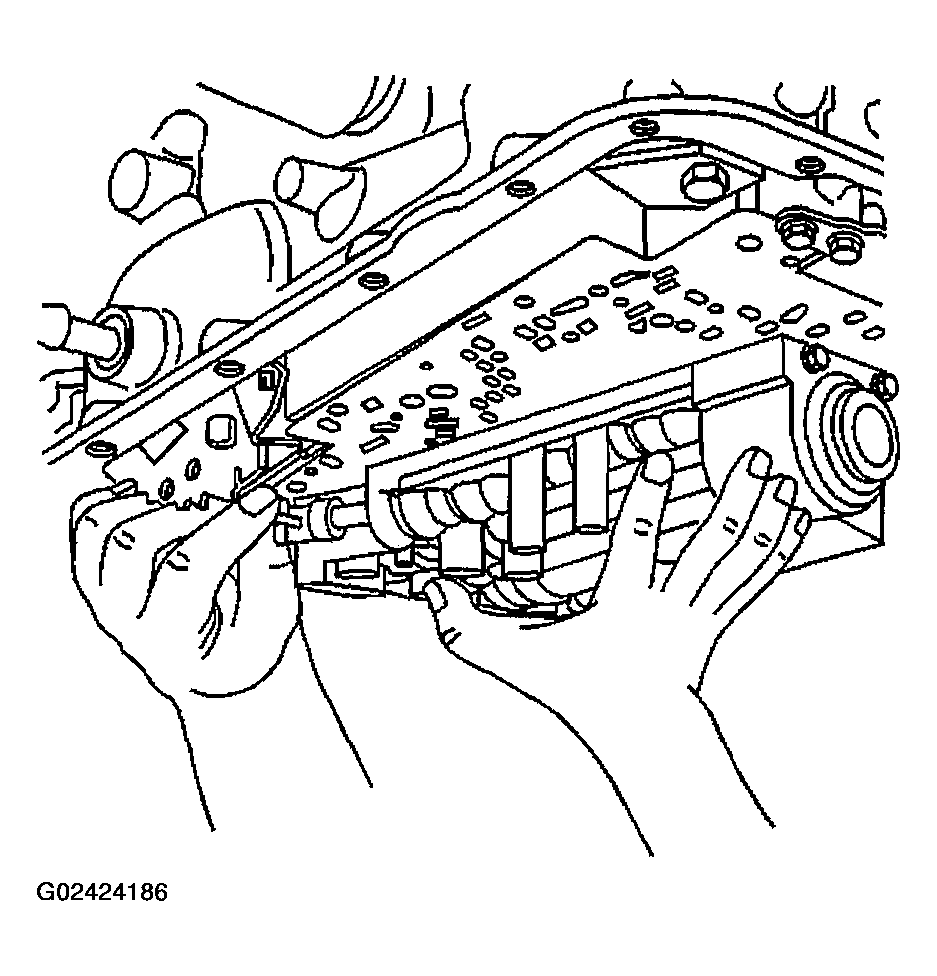

    Fig 2: Installing Control Valve Body & Connecting Manual Valve Link
    G02424186Courtesy of GENERAL MOTORS CORP.
  3. Verify that the manual valve link (3) is installed properly to the inside detent lever (1) and the manual valve (2).
    Fig 3: Verifying Proper Installation Of Manual Valve Link
    G02424187Courtesy of GENERAL MOTORS CORP.
  4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.

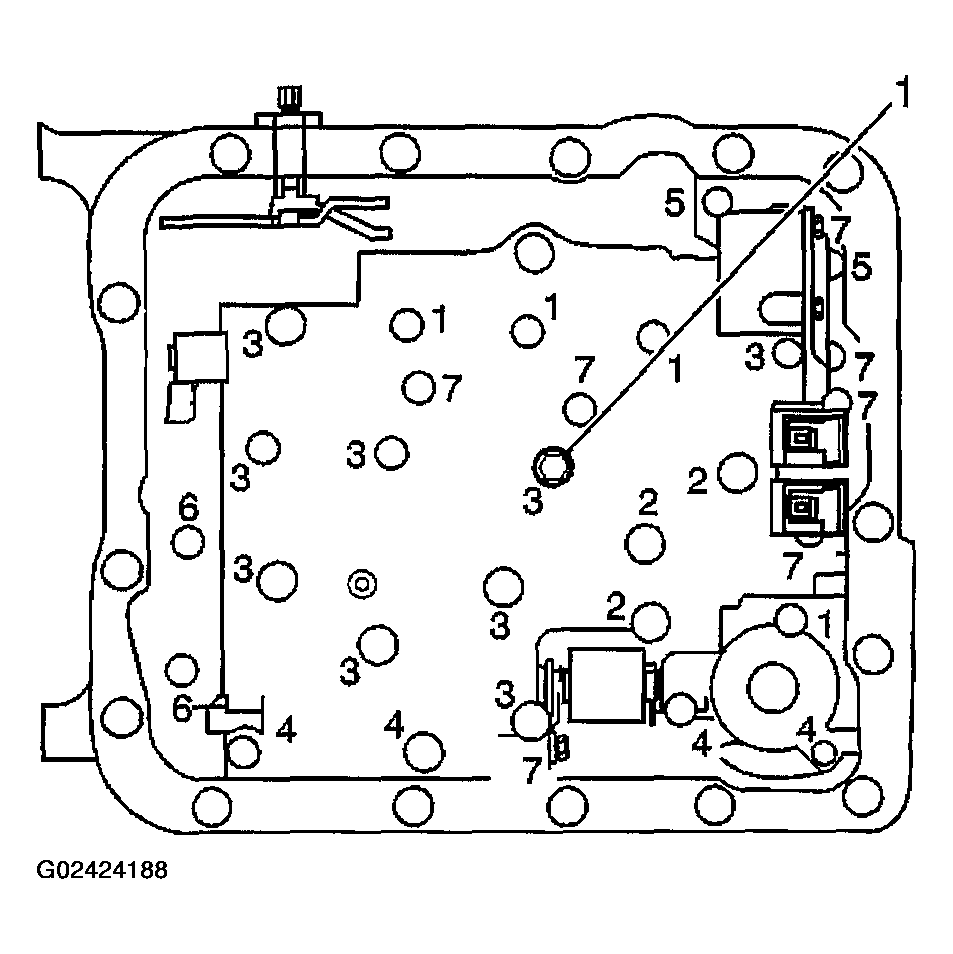

    Fig 4: Installing Bolt In Center Of Valve Body
    G02424188Courtesy of GENERAL MOTORS CORP.

    Important:  When installing bolts throughout this procedure, be sure to use the correct bolt size and length in the correct location as specified.

  5. Do not install the transmission fluid indicator stop bracket and bolt at this time.

    Install but do not tighten the control valve body bolts which retain only the valve body directly.

    Each numbered bolt location corresponds to a specific bolt size and length, as indicated by the following:

    • M6 X 1.0 X 65.0 (1)
    • M6 X 1.0 X 54.4 (2)
    • M6 X 1.0 X 47.5 (3)
    • M6 X 1.0 X 35.0 (4)
    • M8 X 1.0 X 20.0 (5)
    • M6 X 1.0 X 12.0 (6)
    • M6 X 1.0 X 18.0 (7)

    Fig 5: Installing Control Valve Body Bolts
    G02424189Courtesy of GENERAL MOTORS CORP.
  6. Install the manual detent spring.
  7. Install but do not tighten the manual detent spring retaining bolt.

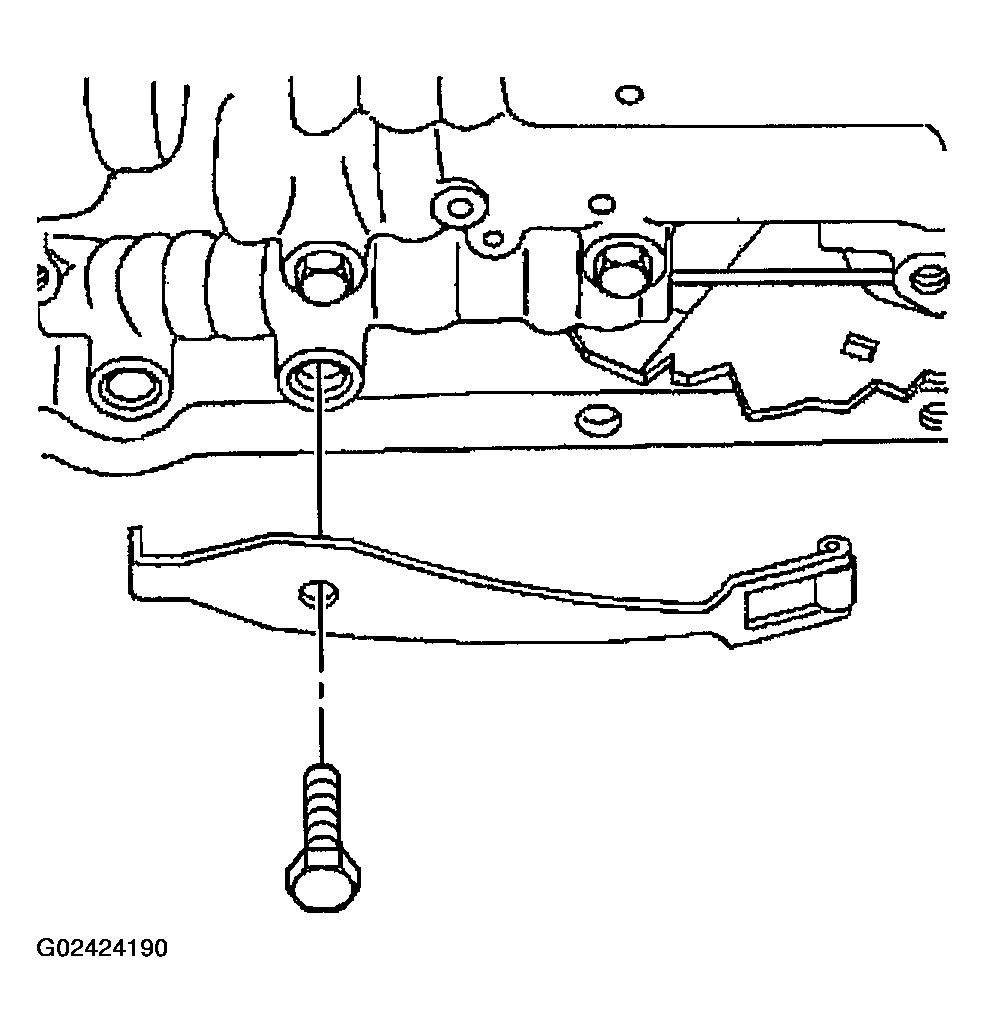

    Fig 6: Installing Manual Detent Spring & Bolt
    G02424190Courtesy of GENERAL MOTORS CORP.
  8. Install the transmission fluid pressure switch.
  9. Install but do not tighten the control valve body bolts which retain the transmission fluid pressure switch to the control valve body.

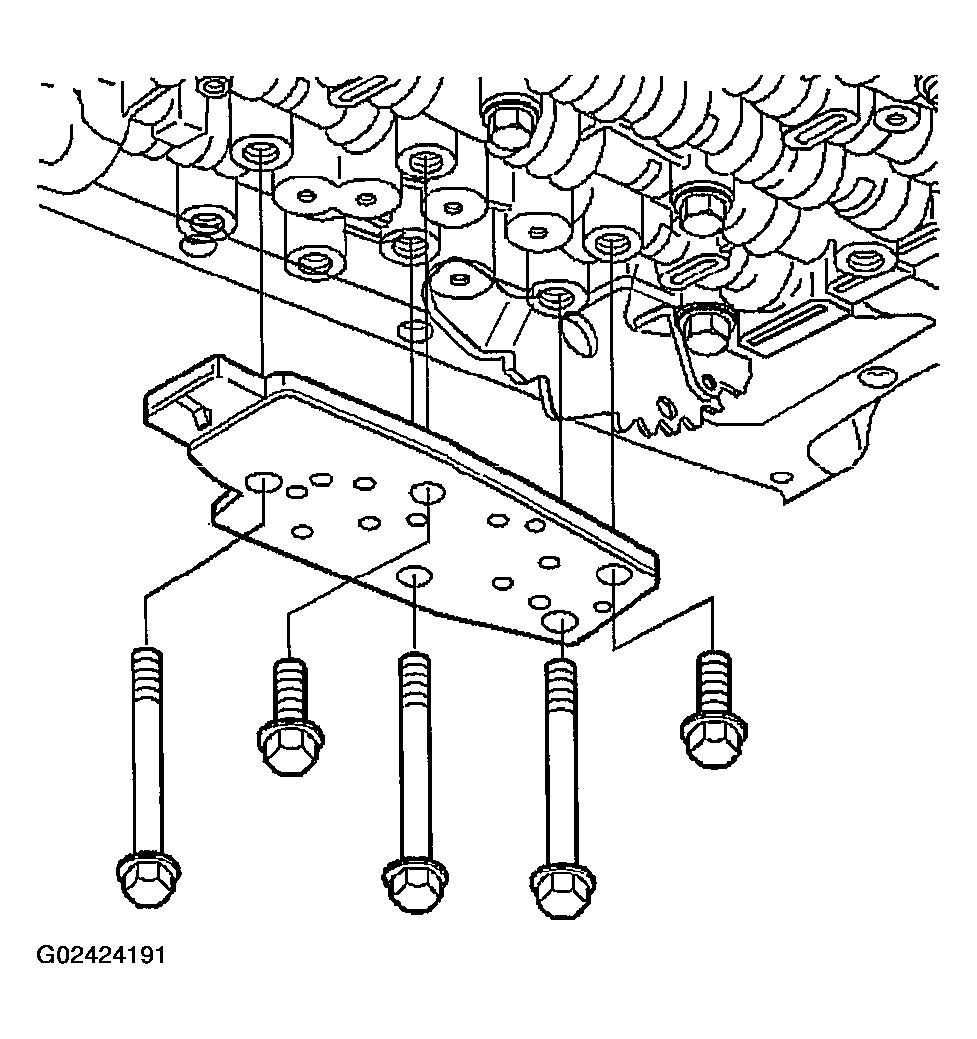

    Fig 7: Installing Transmission Fluid Pressure Switch & Bolts
    G02424191Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
    CAUTION: Torque valve body bolts in a spiral pattern starting from the center. If the bolts are torqued at random, valve bores may be distorted and inhibit valve operation.
  10. Tighten the control valve body bolts in a spiral pattern starting from the center, as indicated by the arrows.

    Tighten

    Tighten the control valve body bolts (in sequence) to 11 N.m (97 lb in).

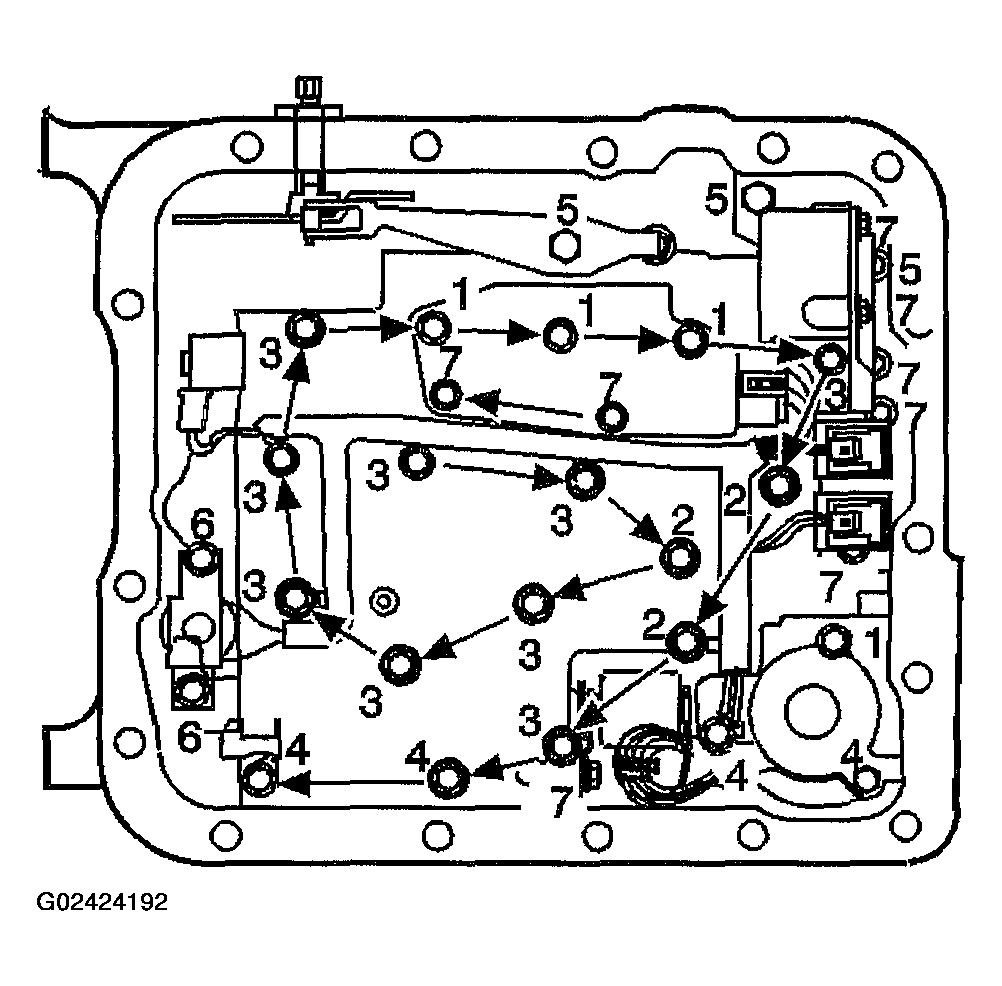

    Fig 8: Tightening Control Valve Body Bolts In Sequence
    G02424192Courtesy of GENERAL MOTORS CORP.
  11. Ensure that the manual detent spring is aligned properly with the detent lever.

    Tighten

    Tighten the manual detent spring bolt to 11 N.m (97 lb in).

    Fig 9: Ensuring Manual Detent Spring Alignment
    G02424193Courtesy of GENERAL MOTORS CORP.
  12. Install the TCC solenoid with a new O-ring seal to the valve body.
    Fig 10: Installing TCC Solenoid With O-Ring Seal
    G02424194Courtesy of GENERAL MOTORS CORP.
  13. Install the TCC solenoid bolts.

    Tighten

    Tighten the TCC solenoid retaining bolts to 11 N.m (97 lb in).

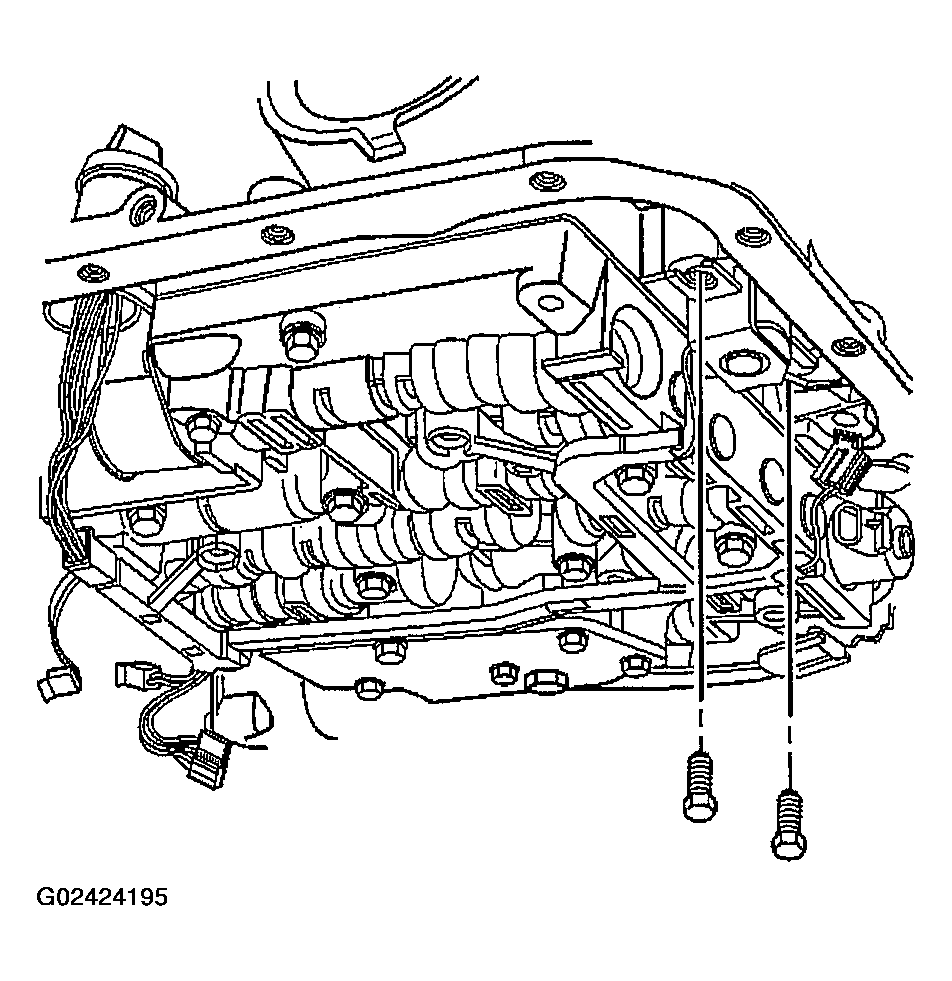

    Fig 11: Installing TCC Solenoid Bolts
    G02424195Courtesy of GENERAL MOTORS CORP.
  14. Install the internal wiring harness to the valve body. The internal wiring harness has a tab (1) on the edge of the conduit.

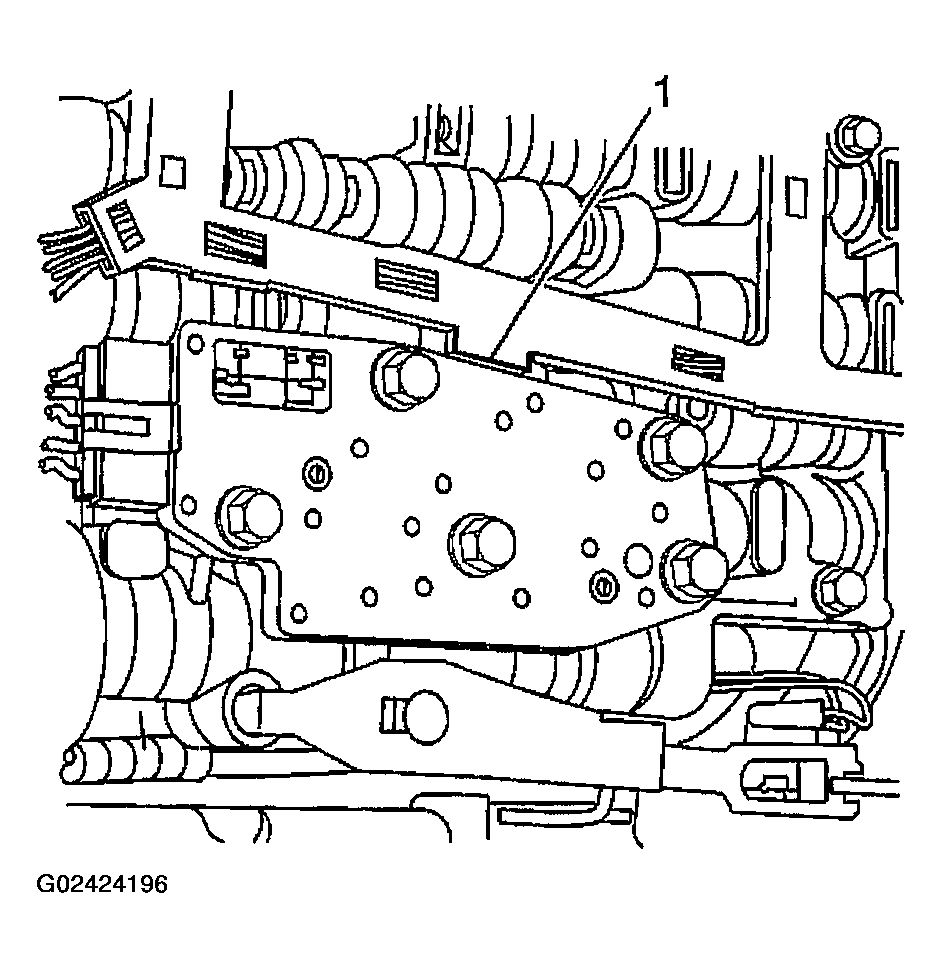

    Fig 12: Installing Internal Wiring Harness
    G02424196Courtesy of GENERAL MOTORS CORP.
  15. Place the tab between the valve body and the pressure switch in the location shown (2). Press the harness into position on the valve body bolt bosses (1, 3).

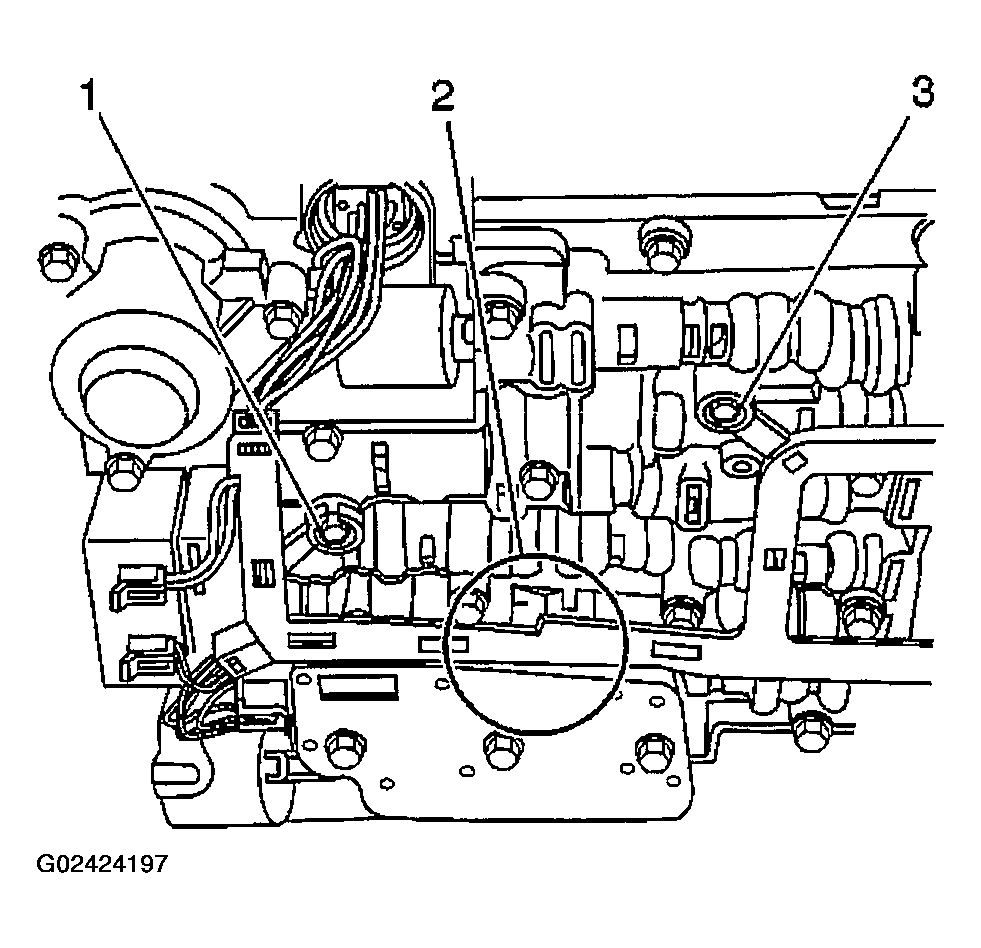

    Fig 13: Placing Tab Between Valve Body & Pressure Switch
    G02424197Courtesy of GENERAL MOTORS CORP.
  16. Install the TCC PWM solenoid (1) to the control valve body.
  17. Install the TCC PWM solenoid retainer (2).
    Fig 14: Installing TCC PWM Solenoid & Retainer
    G02424198Courtesy of GENERAL MOTORS CORP.
  18. Install the transmission fluid indicator stop bracket (1) and bolt (2).

    Tighten

    Tighten the transmission fluid indicator stop bracket bolt to 11 N.m (97 lb in).

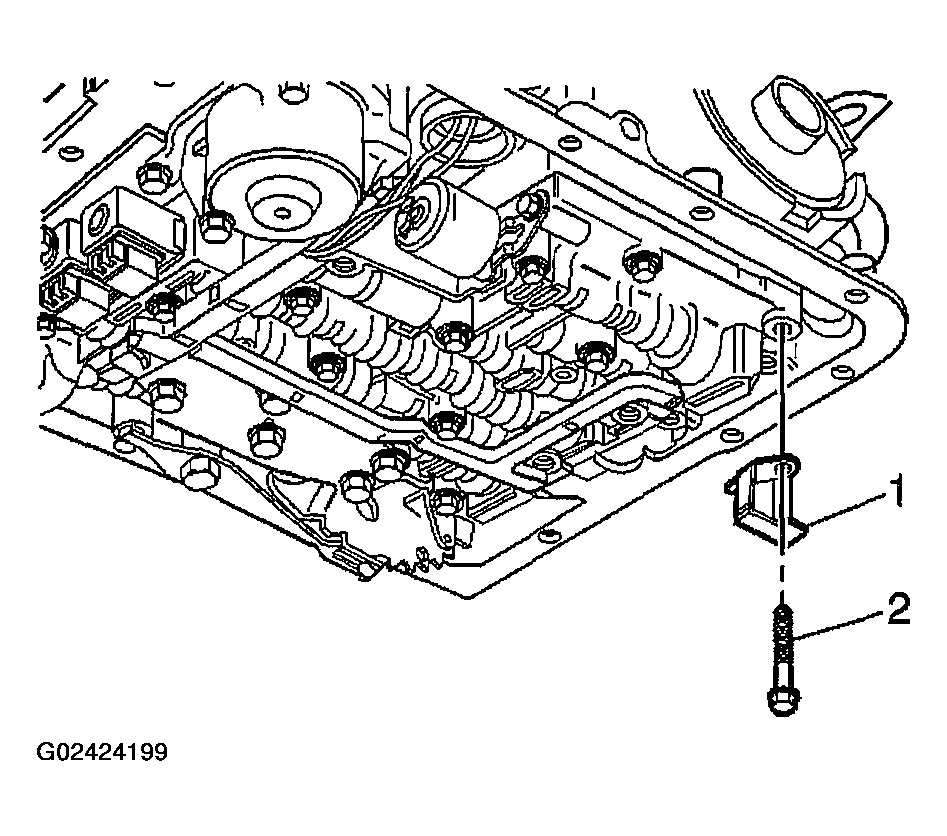

    Fig 15: Installing Transmission Fluid Indicator Stop Bracket & Bolt
    G02424199Courtesy of GENERAL MOTORS CORP.
  19. Connect the internal wiring harness electrical connectors to the following components:
    • The transmission fluid pressure manual valve position switch (1)
    • The 1-2 shift solenoid (2)
    • The 2-3 shift solenoid (3)
    • The pressure control solenoid (4)
    • The TCC PWM solenoid (5)
    • The 3-2 shift solenoid (6)
  20. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
  21. Lower the vehicle.
  22. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure .

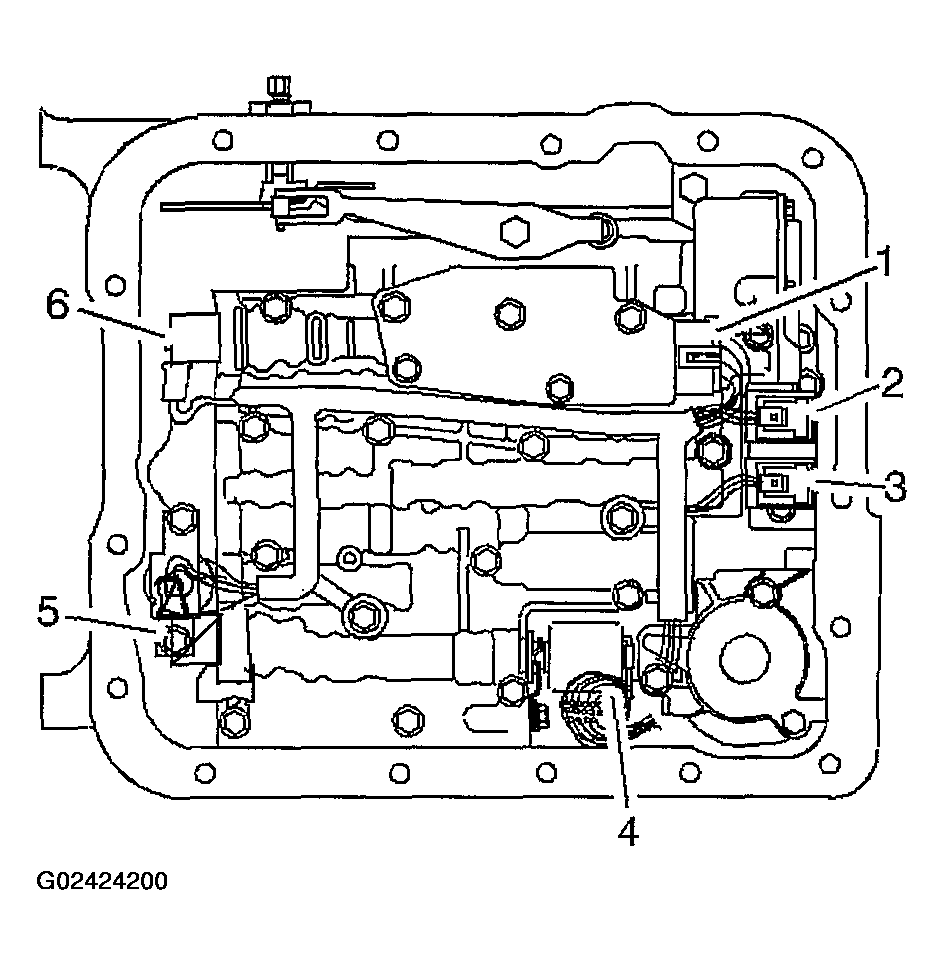

    Fig 16: Connecting Internal Wiring Harness Electrical Connectors
    G02424200Courtesy of GENERAL MOTORS CORP.
