Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT .
  4. Remove the transmission mount mounting bolts, for RWD vehicles.

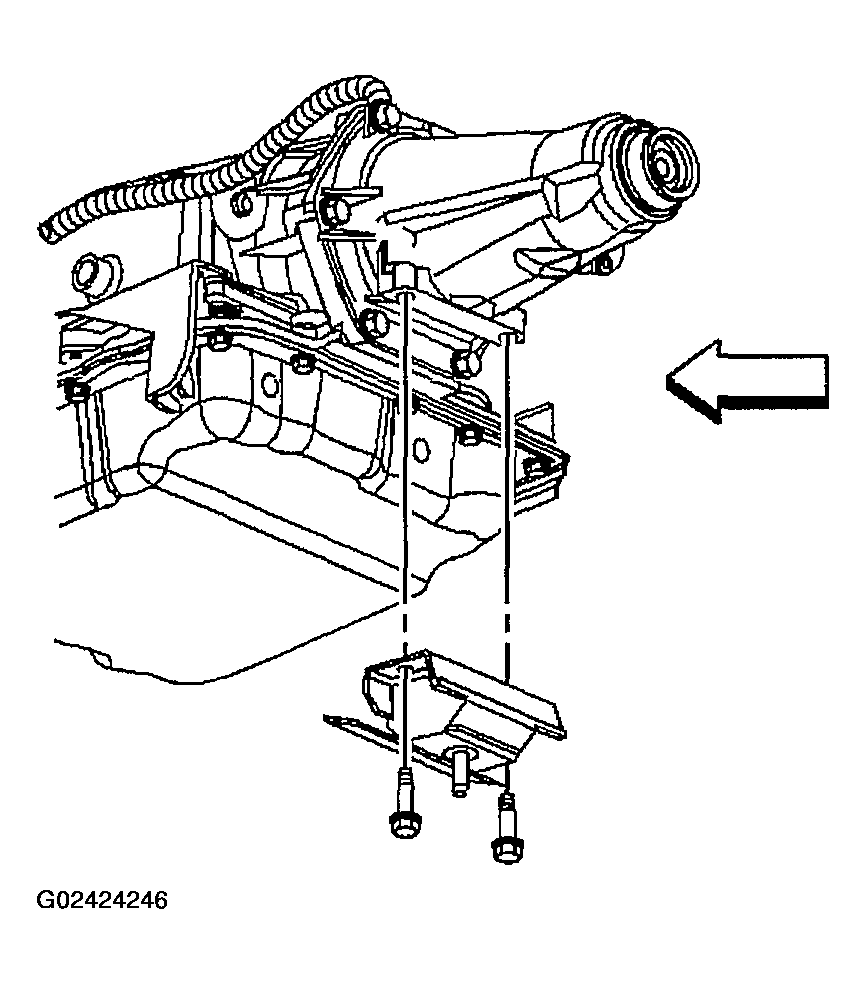

    Fig 1: Removing Transmission Mount Mounting Bolts (RWD)
    G02424246Courtesy of GENERAL MOTORS CORP.
  5. Remove the transmission mount mounting bolts, for 4WD vehicles.
  6. Remove the transmission mount from the vehicle.

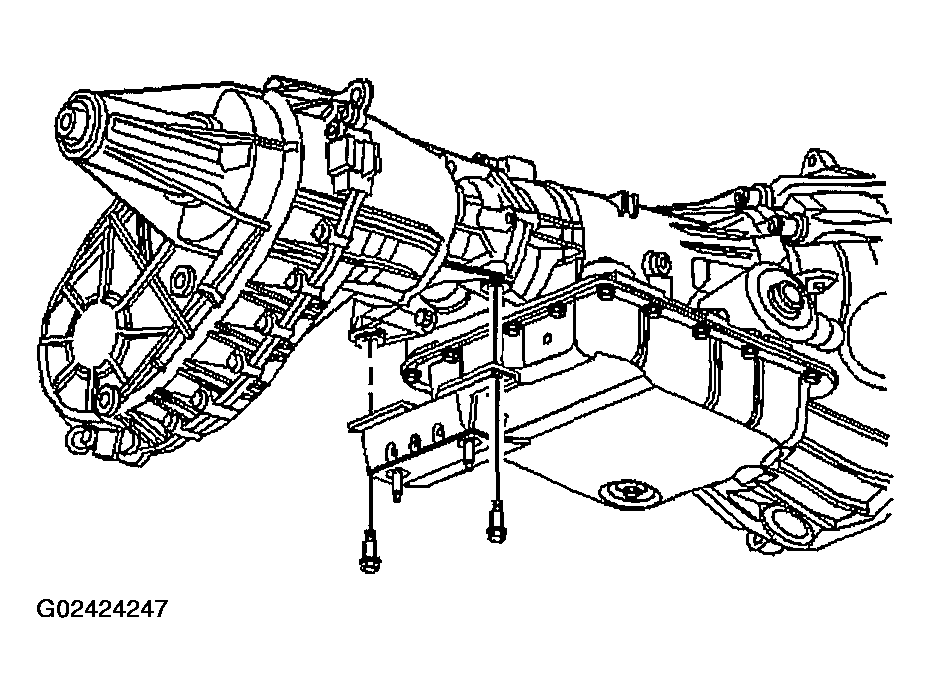

    Fig 2: Removing Transmission Mount Mounting Bolts (4WD)
    G02424247Courtesy of GENERAL MOTORS CORP.
