Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the transmission mount mounting bolts, for 4WD vehicles.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

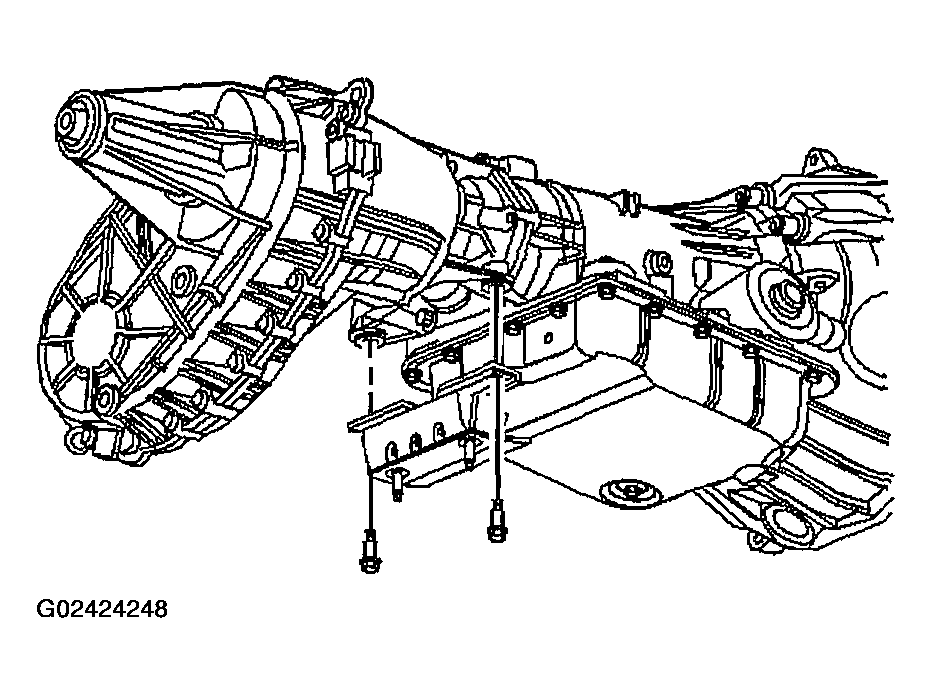

    Fig 1: Installing Transmission Mount Mounting Bolts (4WD)
    G02424248Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission mount mounting bolts, for RWD vehicles.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT .
  5. Remove the transmission jack.
  6. Lower the vehicle.

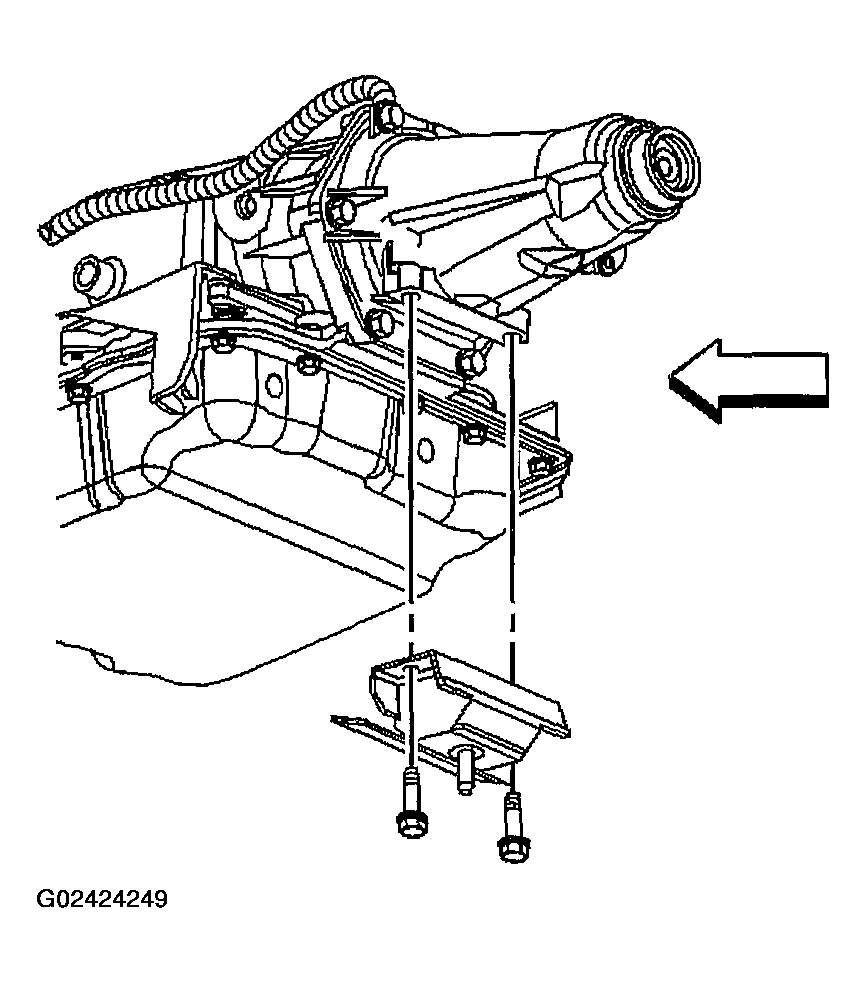

    Fig 2: Installing Transmission Mount Mounting Bolts (RWD)
    G02424249Courtesy of GENERAL MOTORS CORP.
