Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the 4 bolts securing the oil cooler to the radiator support.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  2. Install the oil cooler lines to the auxiliary oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Replacement .

    Tighten

    Tighten the cooler lines to 23 N.m (17 lb ft).

  3. Remove the drain pan.
  4. Install the grille assembly. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

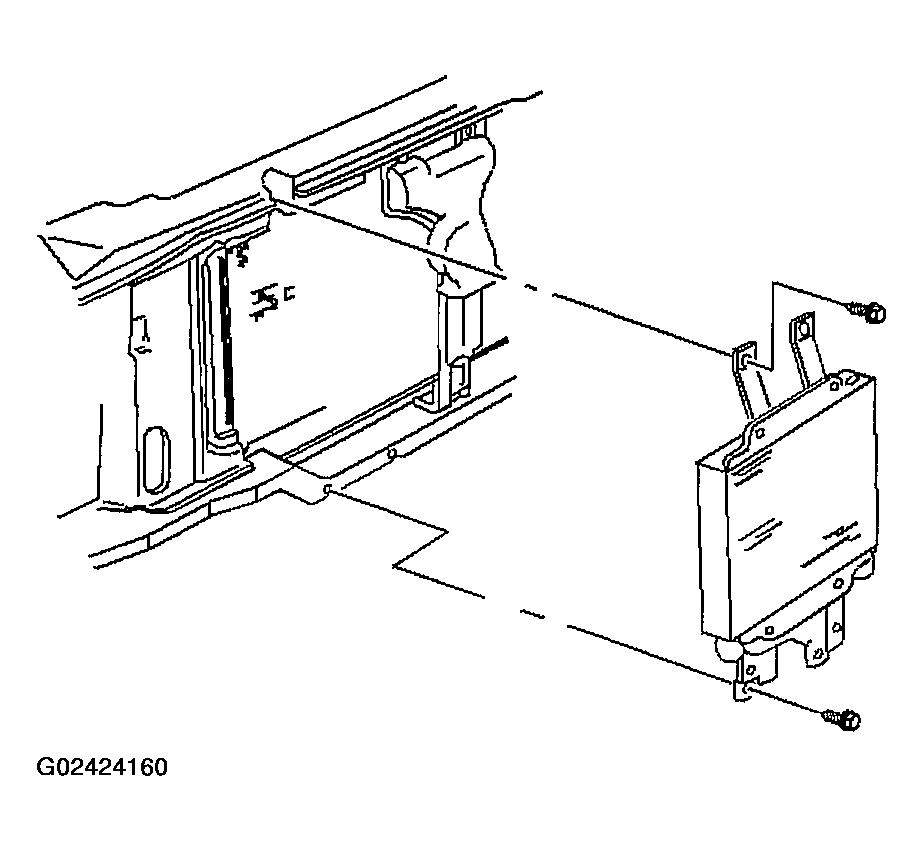

    Fig 1: Installing Transmission Fluid Auxiliary Cooler
    G02424160Courtesy of GENERAL MOTORS CORP.
