Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
  3. Compress the reverse boost valve sleeve into the bore of the oil pump to release tension on the reverse boost valve retaining ring.
  4. Remove the reverse boost valve retaining ring, then slowly release tension on the reverse boost valve sleeve.

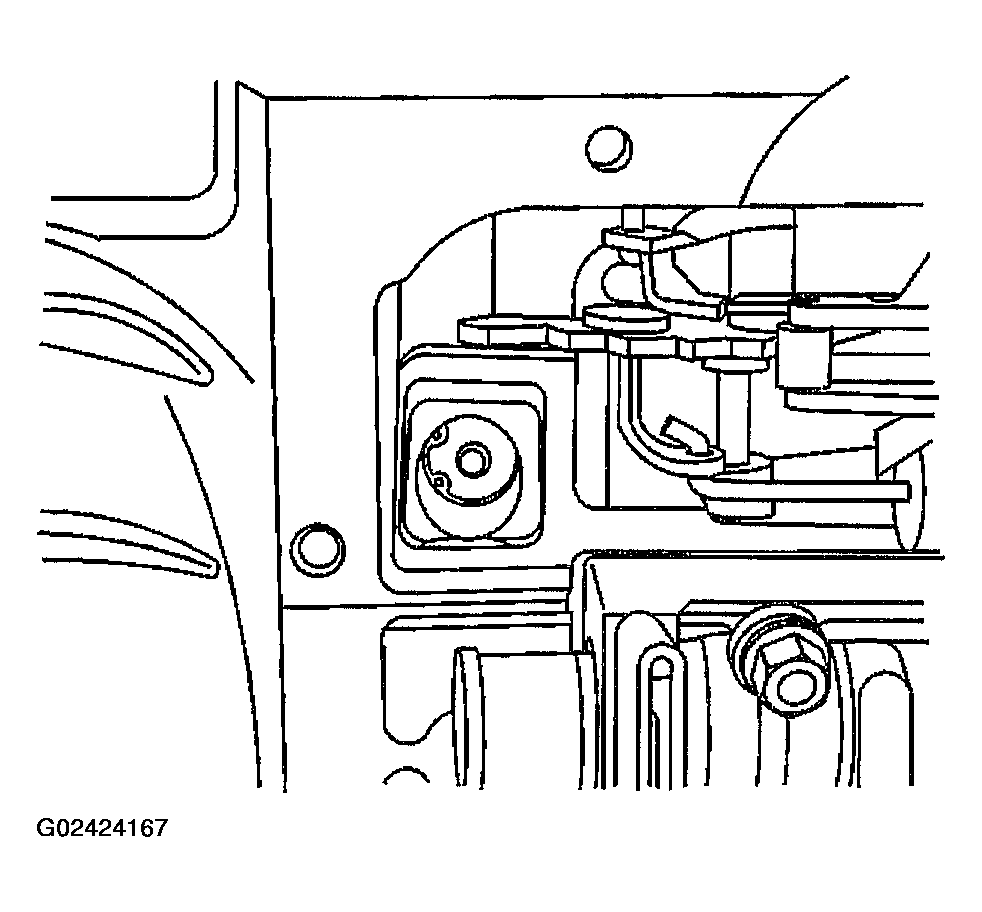

    Fig 1: Compressing Reverse Boost Valve Sleeve Into Oil Pump Bore
    G02424167Courtesy of GENERAL MOTORS CORP.
  5. Remove the reverse boost valve sleeve (5) and the reverse boost valve (4).
  6. Remove the pressure regulator isolator spring (3) and the pressure regulator valve spring (2).
  7. Remove the pressure regulator valve (1).
    Fig 2: Removing Reverse Boost Valve, Pressure Regulator Valve & Components
    G02424168Courtesy of GENERAL MOTORS CORP.
