Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Shift the transmission into neutral.
  3. Raise the vehicle.
  4. Remove the nut securing the transmission control lever to the manual shaft.
  5. Remove the transmission control lever from the manual shaft.
  6. Disconnect the electrical connectors from the switch.
  7. Remove the bolts securing the park/neutral position switch to the transmission.
  8. Remove the park/neutral position switch from the manual shaft. If the park/neutral position switch did not slide off the manual shaft, file the outer edge of the manual shaft in order to remove any burrs.

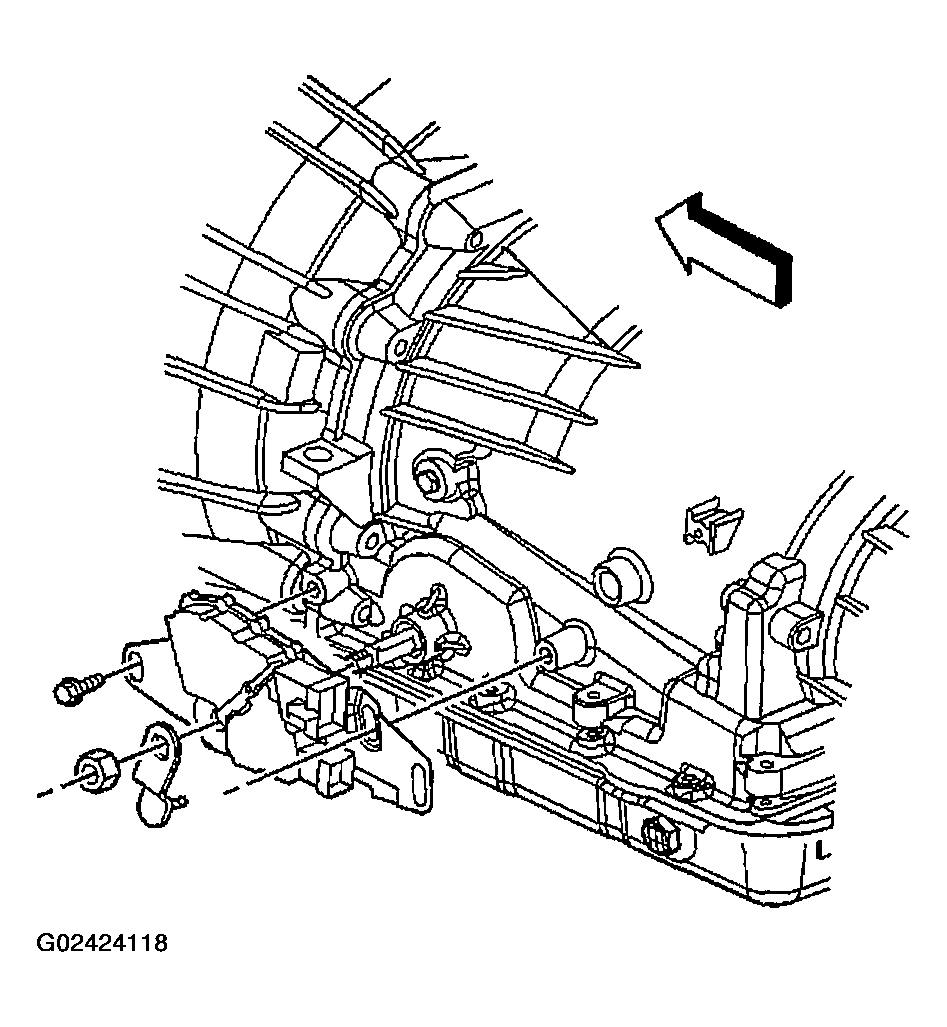

    9. Fig 1: Removing Transmission Control Lever & Park/Neutral Position Switch
    G02424118Courtesy of GENERAL MOTORS CORP.
