Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new oil level indicator tube seal into the transmission case.
  2. Install the oil level indicator tube into the seal.
  3. Lower the vehicle.
  4. Install the upper transmission fill tube to the vehicle and into the lower fill tube.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the nut securing the oil level indicator tube bracket to the transmission.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  6. Install the bolt securing the oil level indicator tube bracket to the engine.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

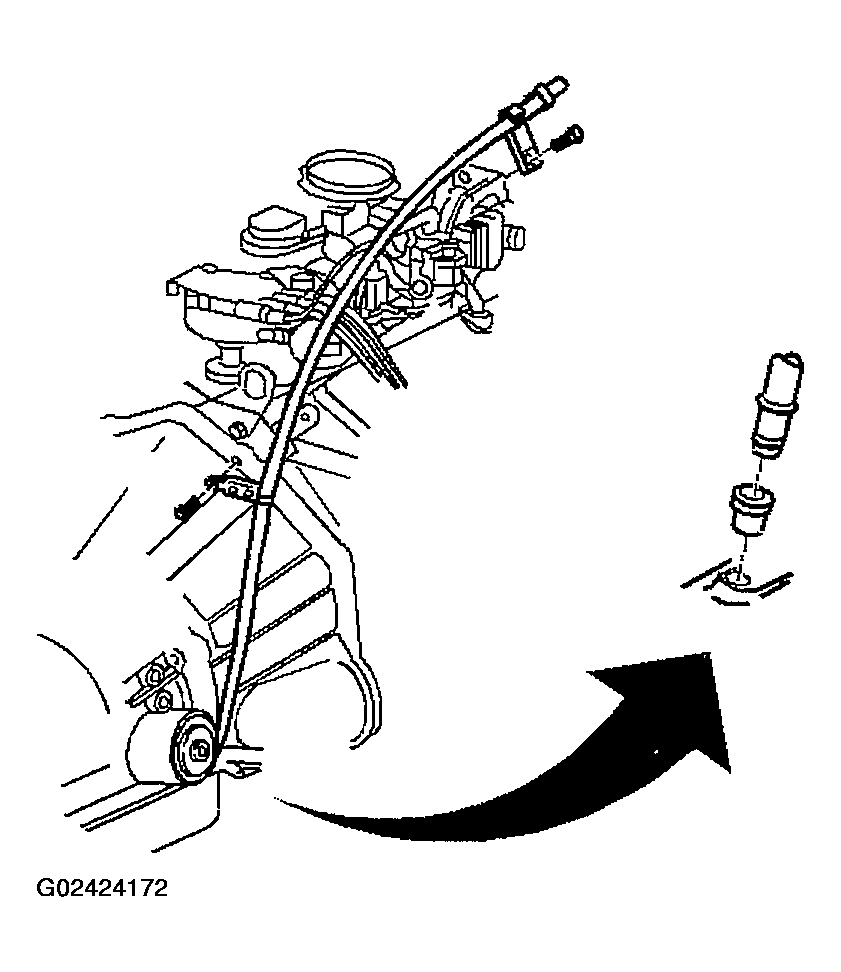

    Fig 1: Installing Oil Level Indicator Tube Seal & Tube
    G02424172Courtesy of GENERAL MOTORS CORP.
  7. Fill the transmission to the proper fluid level. Refer to Fluid Capacity Specifications  and Transmission Fluid Checking Procedure  .
