Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .

    Important:  Do not remove the valve body for the following procedures. Removal of the 1-2 accumulator is necessary only if servicing the pressure control solenoid.

  2. Remove the 1-2 accumulator if necessary. Refer to Accumulator Assembly, Spacer Plate, and Gaskets .
  3. Disconnect the internal wiring harness electrical connectors from the following components:
    • Transmission fluid pressure switch (1)
    • 1-2 shift control solenoid (2)
    • 2-3 shift control solenoid (3)
    • Pressure control solenoid (4)
    • TCC PWM solenoid (5)
    • 3-2 control solenoid (6)

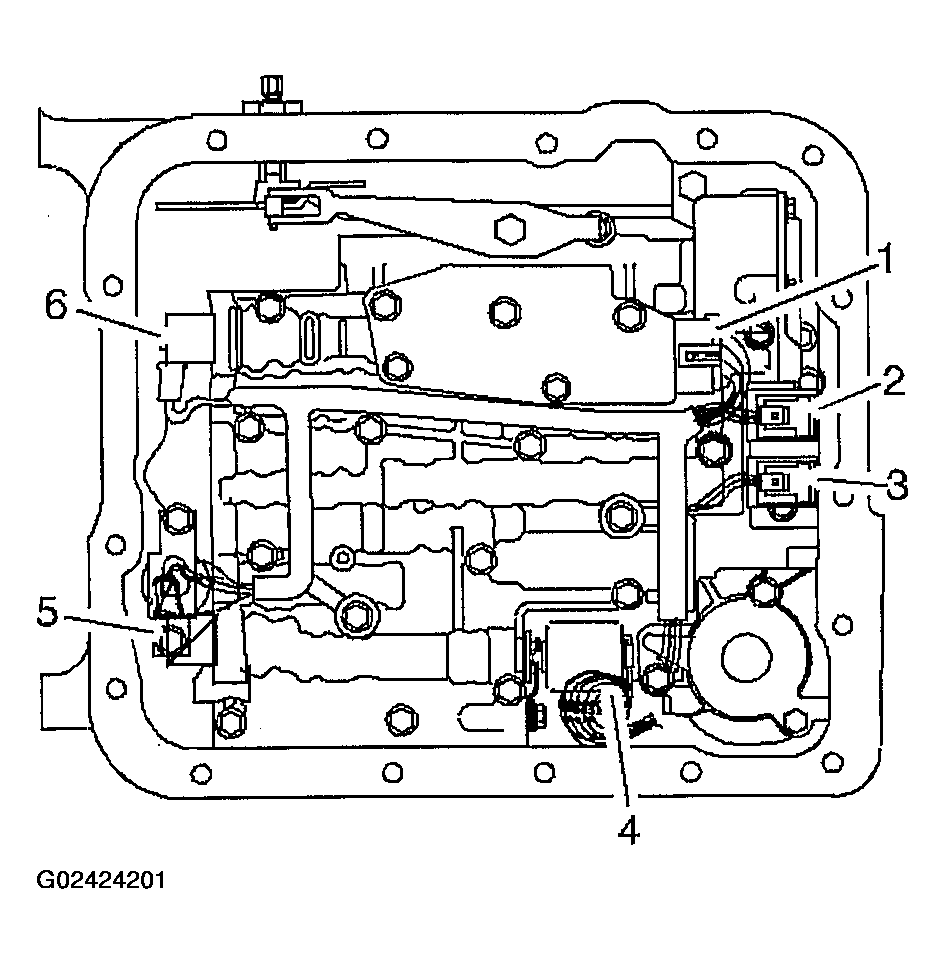

    Fig 1: Disconnecting Internal Wiring Harness Electrical Connectors
    G02424201Courtesy of GENERAL MOTORS CORP.
  4. Remove the pressure control solenoid retainer.
  5. Remove the pressure control solenoid.

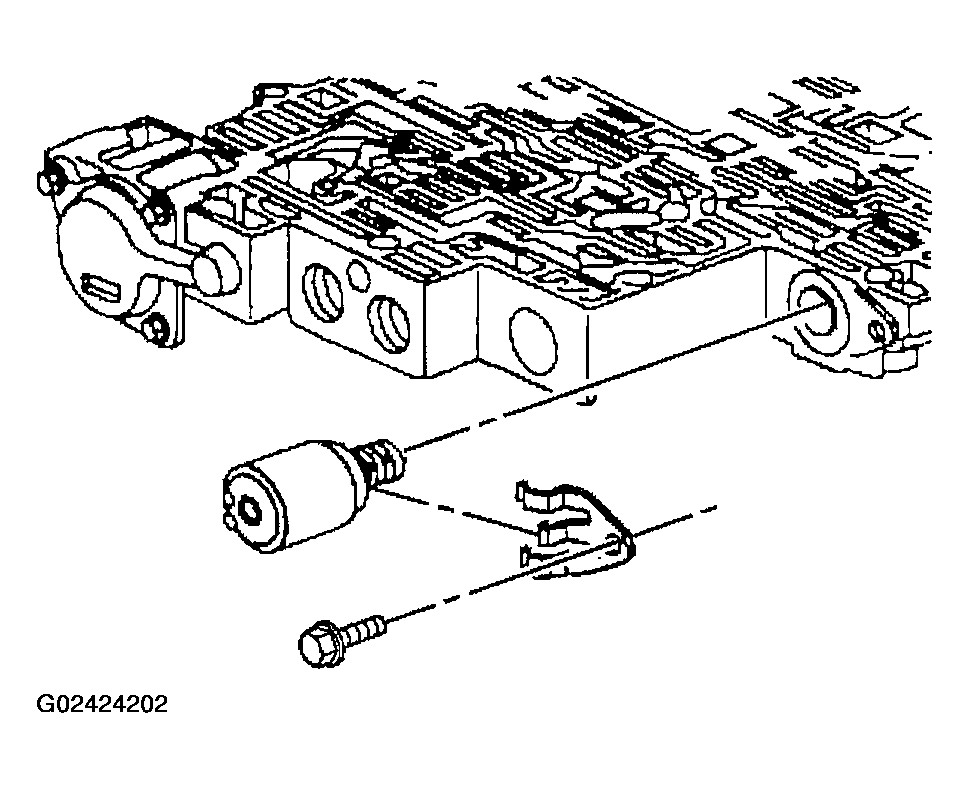

    Fig 2: Removing Pressure Control Solenoid Retainer & Solenoid
    G02424202Courtesy of GENERAL MOTORS CORP.
  6. Remove the 1-2 and 2-3 shift solenoid retainers.
  7. Remove the 1-2 and 2-3 shift solenoids.

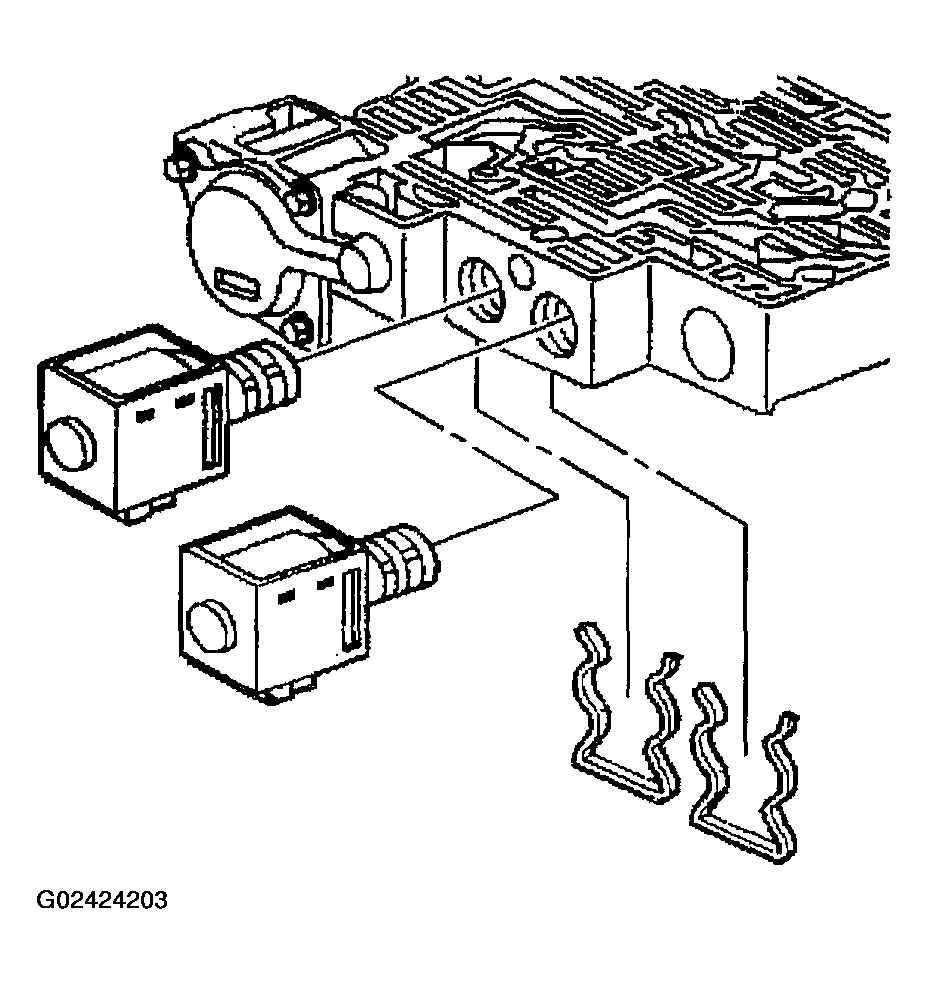

    Fig 3: Removing 1-2 & 2-3 Shift Solenoid Retainers & Solenoids
    G02424203Courtesy of GENERAL MOTORS CORP.
  8. Remove the 3-2 control solenoid retainer.
  9. Remove the 3-2 control solenoid.
    Fig 4: Removing 3-2 Control Solenoid Retainer & Solenoid
    G02424204Courtesy of GENERAL MOTORS CORP.
