Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the 3-2 control solenoid.
Install the 3-2 control solenoid retainer.

Fig 1: Installing 3-2 Control Solenoid & Retainer
Courtesy of GENERAL MOTORS CORP.

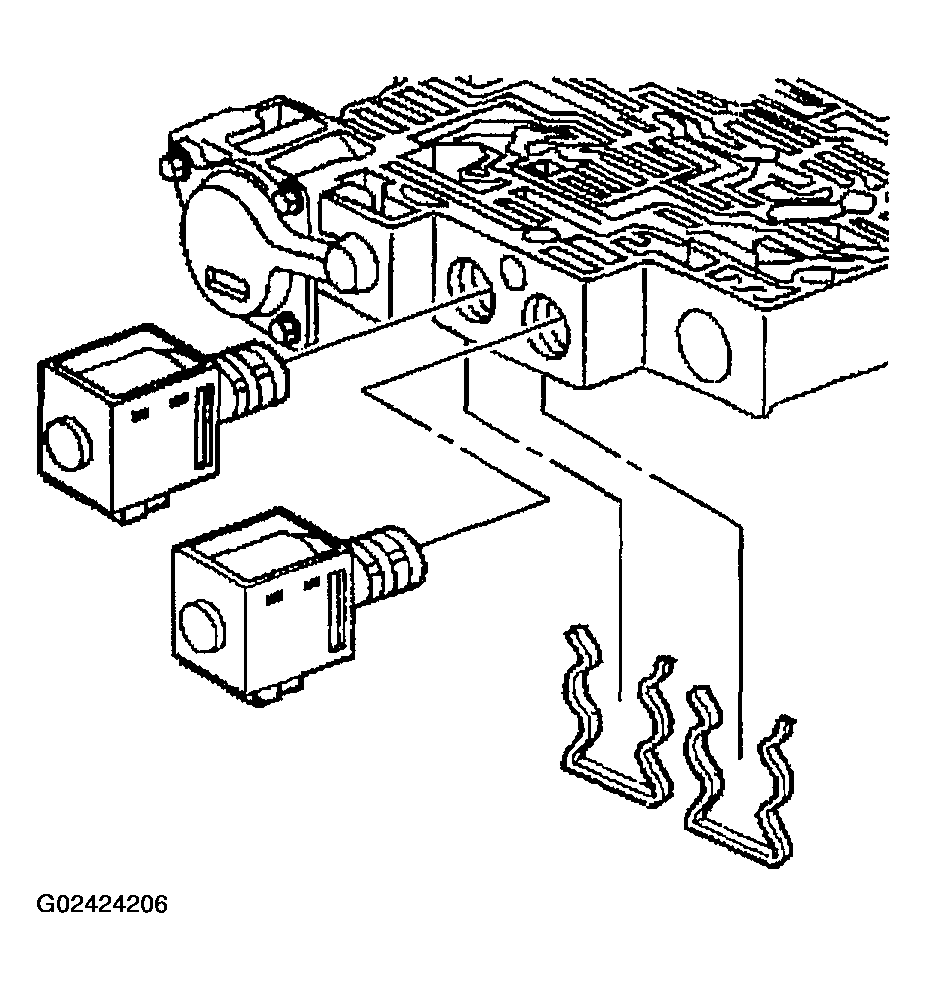

Install the 1-2 and 2-3 shift solenoids.
Install the 1-2 and 2-3 shift solenoid retainers.

Fig 2: Installing 1-2 & 2-3 Shift Solenoids & Retainers
Courtesy of GENERAL MOTORS CORP.

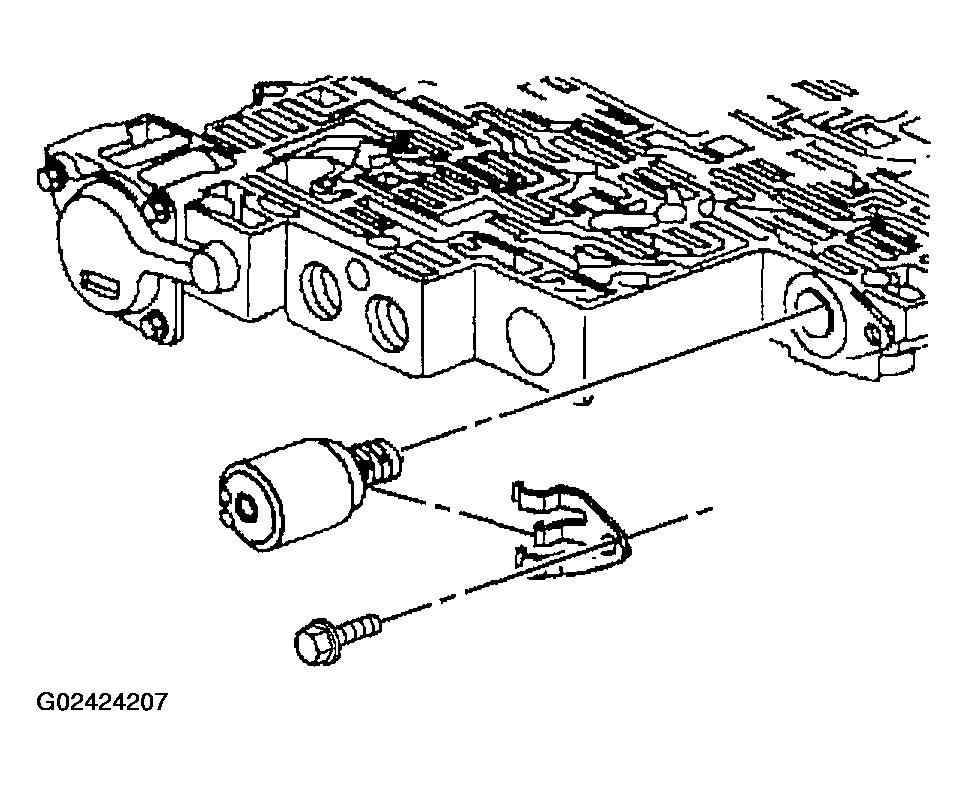

Install the pressure control solenoid.
Ensure that the electrical tabs are facing outboard.

CAUTION: Refer to FASTENER NOTICE .
Install the pressure control solenoid retainer and retaining bolt.
Tighten

Tighten the pressure control solenoid retaining bolt to 11 N.m (97 lb in).

Fig 3: Installing Pressure Control Solenoid Retainer & Retaining Bolt
Courtesy of GENERAL MOTORS CORP.

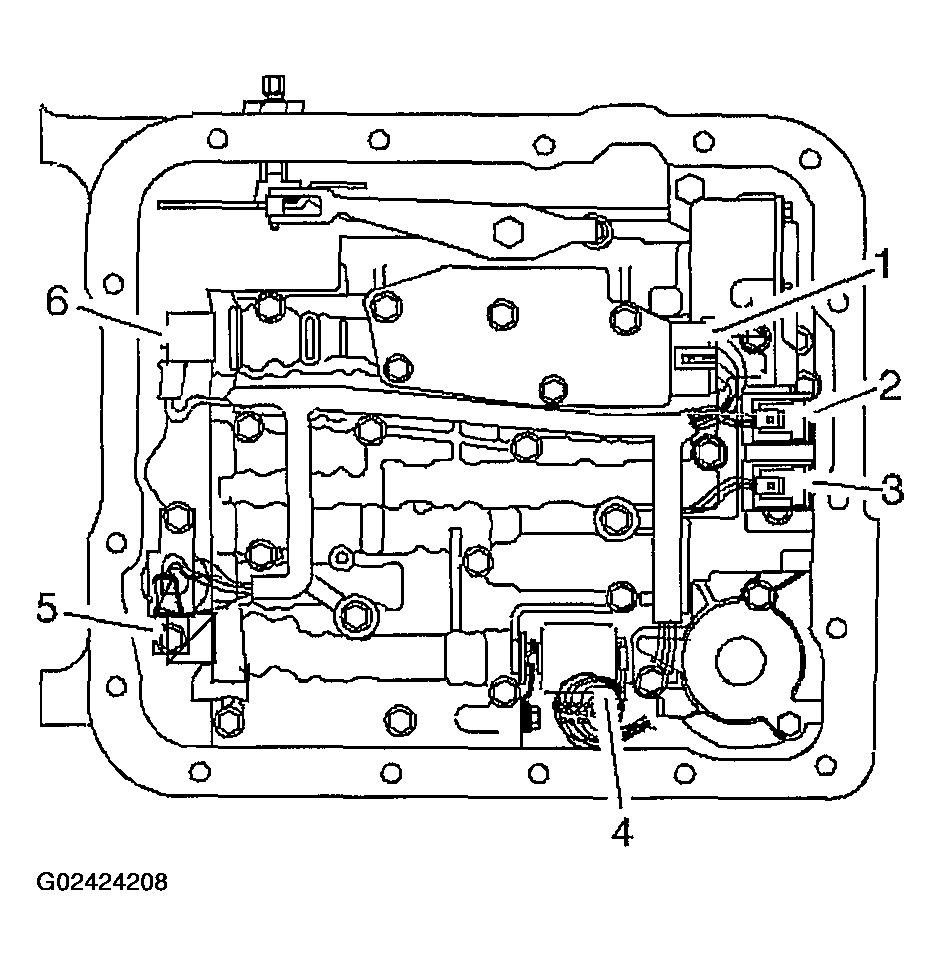

Connect the internal wiring harness electrical connectors to the following components:
- Transmission fluid pressure switch (1)
- 1-2 shift control solenoid (2)
- 2-3 shift control solenoid (3)
- Pressure control solenoid (4)
- TCC PWM solenoid (5)
- 3-2 control solenoid (6)
Fig 4: Connecting Internal Wiring Harness Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the 1-2 accumulator. Refer to Accumulator Assembly, Spacer Plate, and Gaskets .
Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure .
