Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Position the steering column shift lever to park.
  3. Remove the knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
  4. Remove the knee bolster bracket. Refer to KNEE BOLSTER BRACKET REPLACEMENT - LEFT .
  5. Remove the clip securing the shift cable to the steering column bracket.
  6. Remove the shift cable from the steering column shift control.

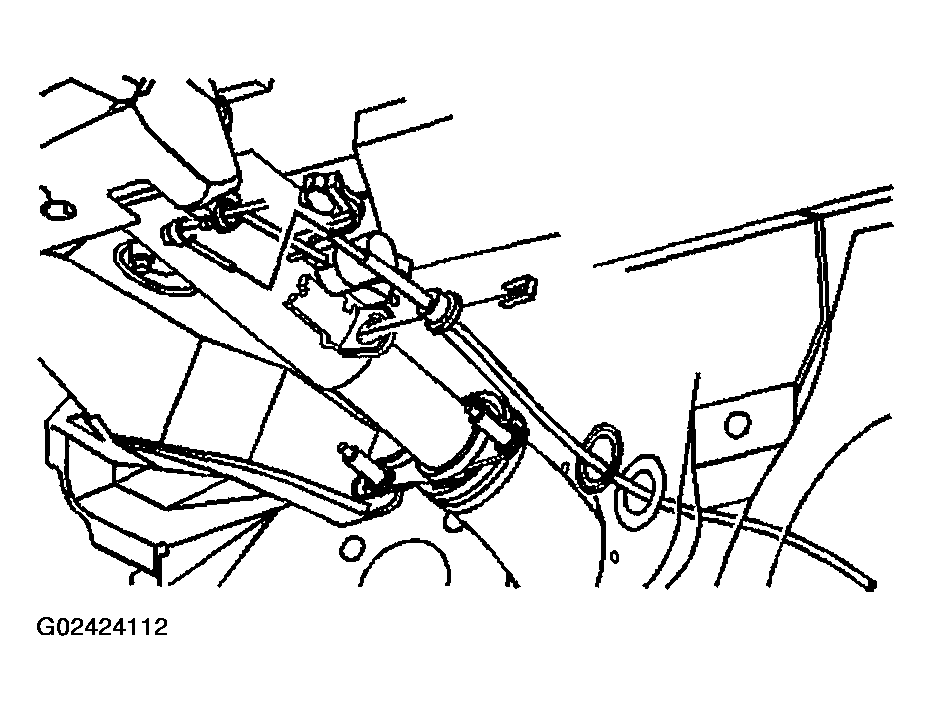

    Fig 1: Removing Shift Cable From Steering Column Shift Control
    G02424112Courtesy of GENERAL MOTORS CORP.
  7. Pull back the carpet and insulation to gain access to the shift cable pass-through grommet.
  8. Remove the rubber grommet from the floor panel.
  9. Raise the vehicle.
  10. Remove the shift cable from the stud ball.
  11. Remove the locking clip from the cable at the bracket.
  12. Unclip the cable from the retainers at the fuel lines and body.
  13. Lower the vehicle.
  14. Remove the shift cable from the vehicle.
    Fig 2: Removing Shift Cable From Stud Ball
    G02424113Courtesy of GENERAL MOTORS CORP.
