Automatic Transmission Range Selector Cable Adjustment

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transmission shift control lever into park.
  2. Apply the park brake.
  3. Raise and suitably support the vehicle.
  4. Remove the end of the range selector cable from the range selector lever ball stud.
  5. Position the transmission range selector lever to park. Rotate the range select lever clockwise until it reaches the full mechanical stop position.
  6. Slide the locking tab retainer to the side.
  7. Release the locking tab.
  8. Install the end of the range selector cable to the range selector lever ball stud.
  9. Engage the locking tab without disturbing the cable. This sets the adjustment.
  10. Slide the locking tab retainer over the locking tab.
  11. Lower the vehicle.
  12. Check the transmission for proper operation.
  13. Release the parking brake.

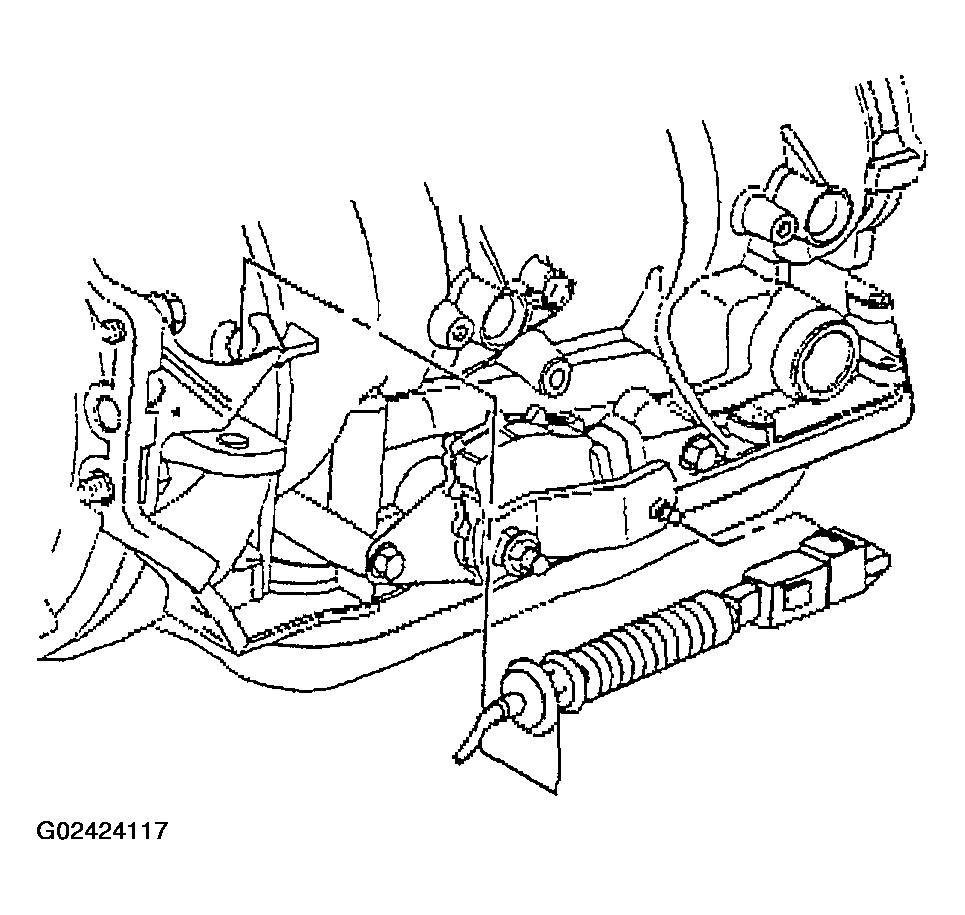

    14. Fig 1: Removing Range Selector Cable End From Ball Stud
    G02424117Courtesy of GENERAL MOTORS CORP.
