Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new 3-4 accumulator piston seal (1) to the 3-4 accumulator piston.

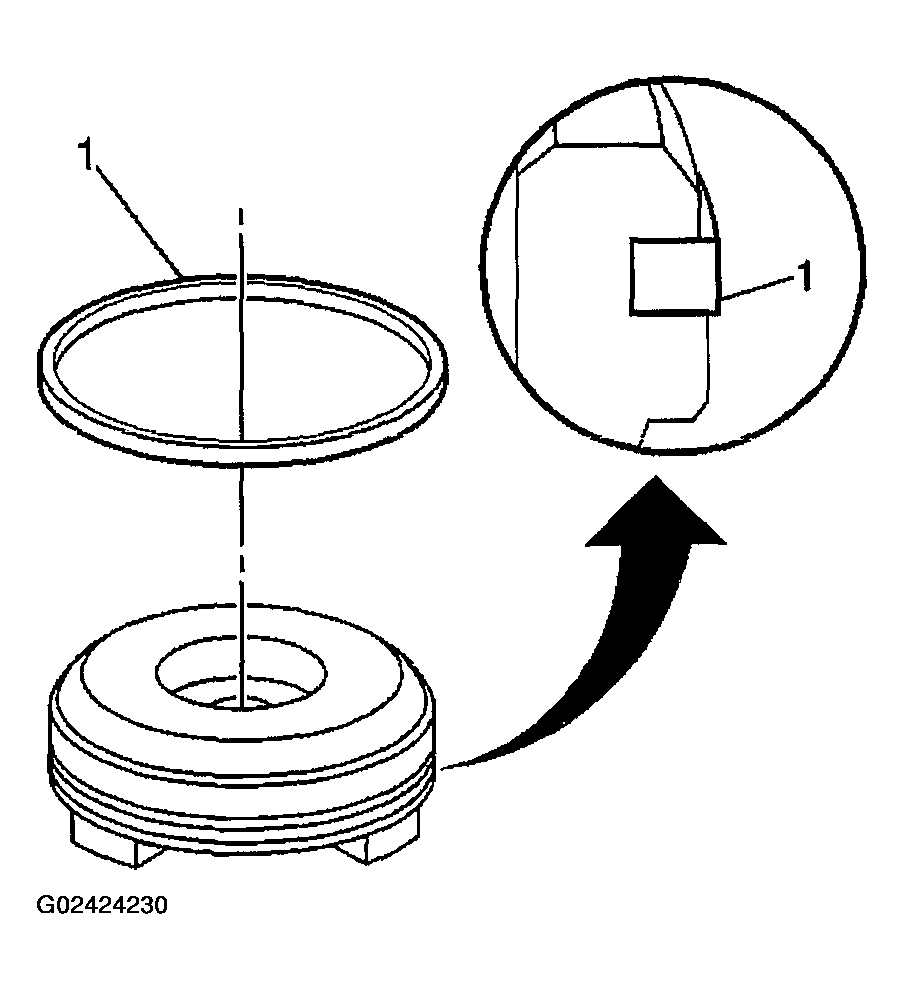

    Fig 1: Installing 3-4 Accumulator Piston Seal
    G02424230Courtesy of GENERAL MOTORS CORP.
  2. Install the 3-4 accumulator pin (1) into the transmission case and retain the pin with J 36850  .

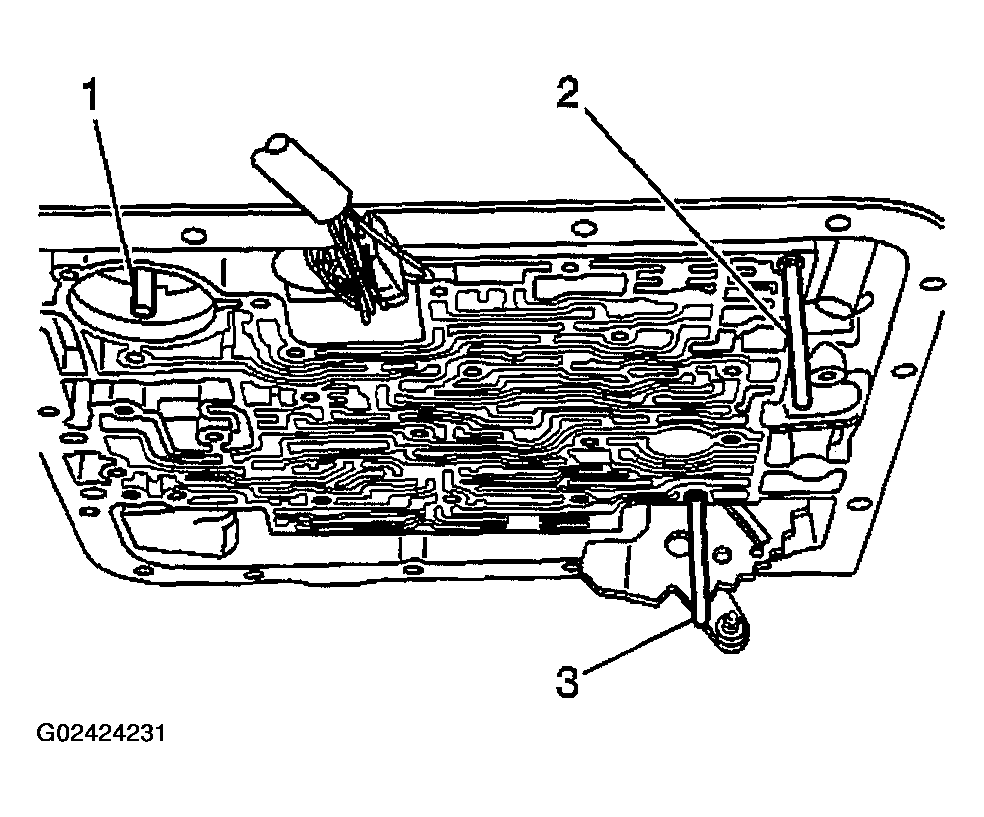

    Fig 2: Installing 3-4 Accumulator Pin
    G02424231Courtesy of GENERAL MOTORS CORP.
  3. Install the 3-4 accumulator piston (2) onto the pin (1) in the transmission case.

    Ensure that the 3-4 accumulator piston legs face away from the transmission case.

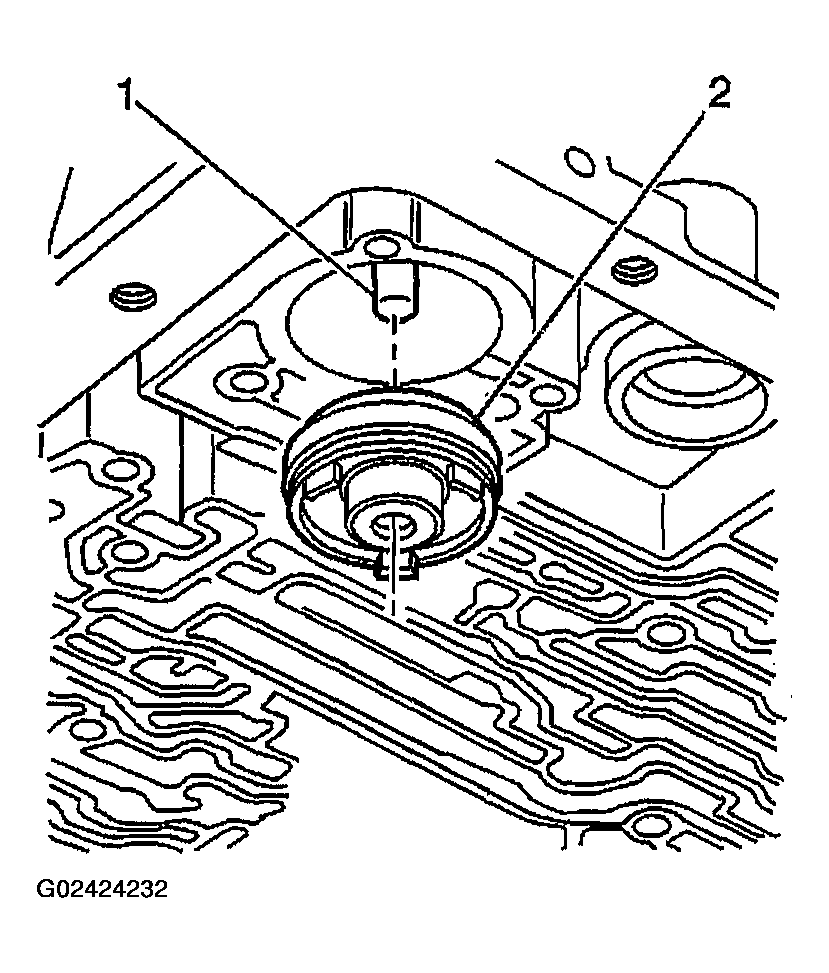

    Fig 3: Installing 3-4 Accumulator Piston Onto Pin
    G02424232Courtesy of GENERAL MOTORS CORP.
  4. Install the J 25025-B  (2, 3) to the transmission case.

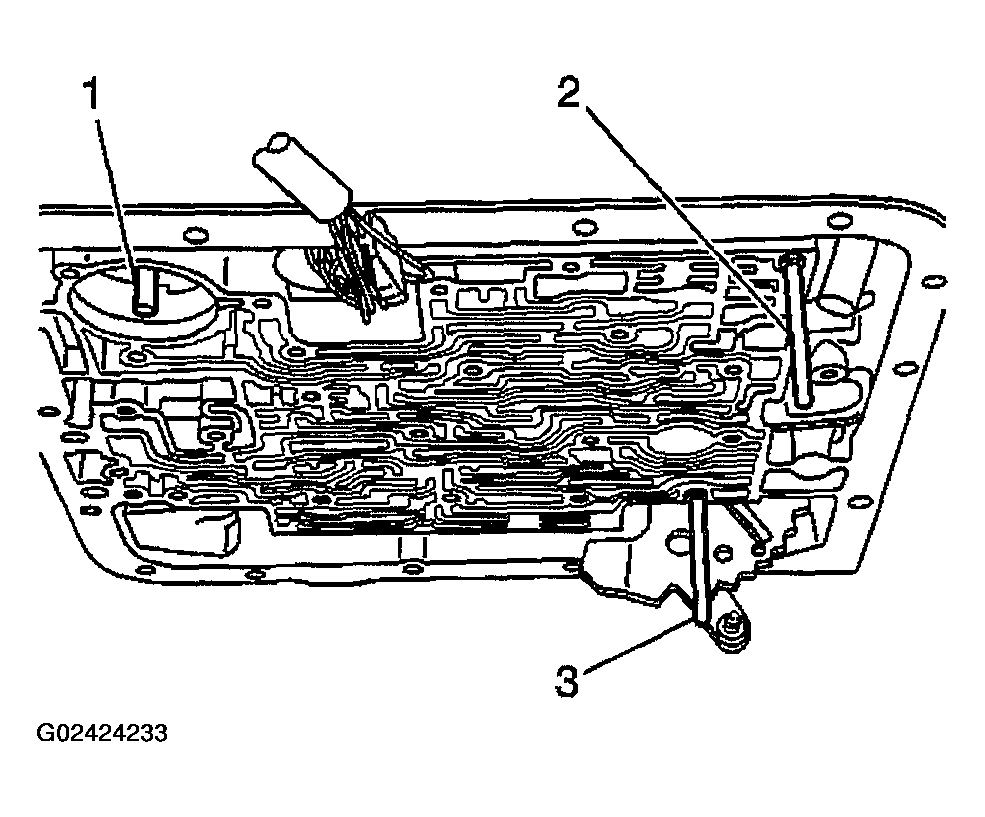

    Fig 4: Installing J 25025-B To Transmission Case
    G02424233Courtesy of GENERAL MOTORS CORP.
  5. Install the spacer plate to transmission case gasket and the spacer plate to valve body gasket to the spacer plate; use J 36850  in order to retain the gaskets to the spacer plate.
    • The case gasket is identified by a C.

      Be sure to place the case gasket on the transmission case side of the spacer plate.

    • The valve body gasket is identified by a V.

      Be sure to place the valve body gasket on the valve body side of the spacer plate.

  6. Ensure that the solenoid screens (1, 2) are in place on the spacer plate.
  7. Place the check ball (3) on the spacer plate in the location shown.
  8. Place the 3-4 accumulator spring (4) on the spacer plate.
  9. Install the spacer plate and related components to the transmission.

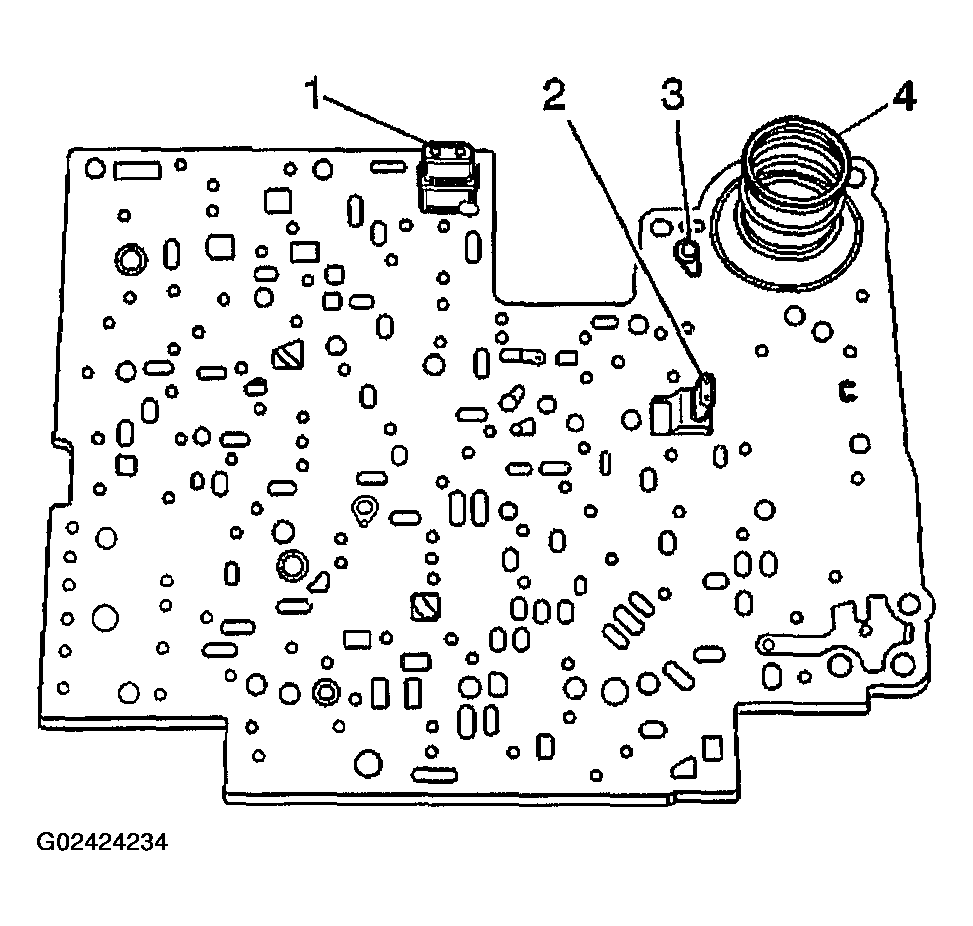

    Fig 5: Placing Solenoid Screens, Check Ball & 3-4 Accumulator Spring On Spacer Plate
    G02424234Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  10. Install the spacer plate support and the spacer plate support retaining bolts.

    Tighten

    Tighten the spacer plate support retaining bolts to 11 N.m (97 lb in).

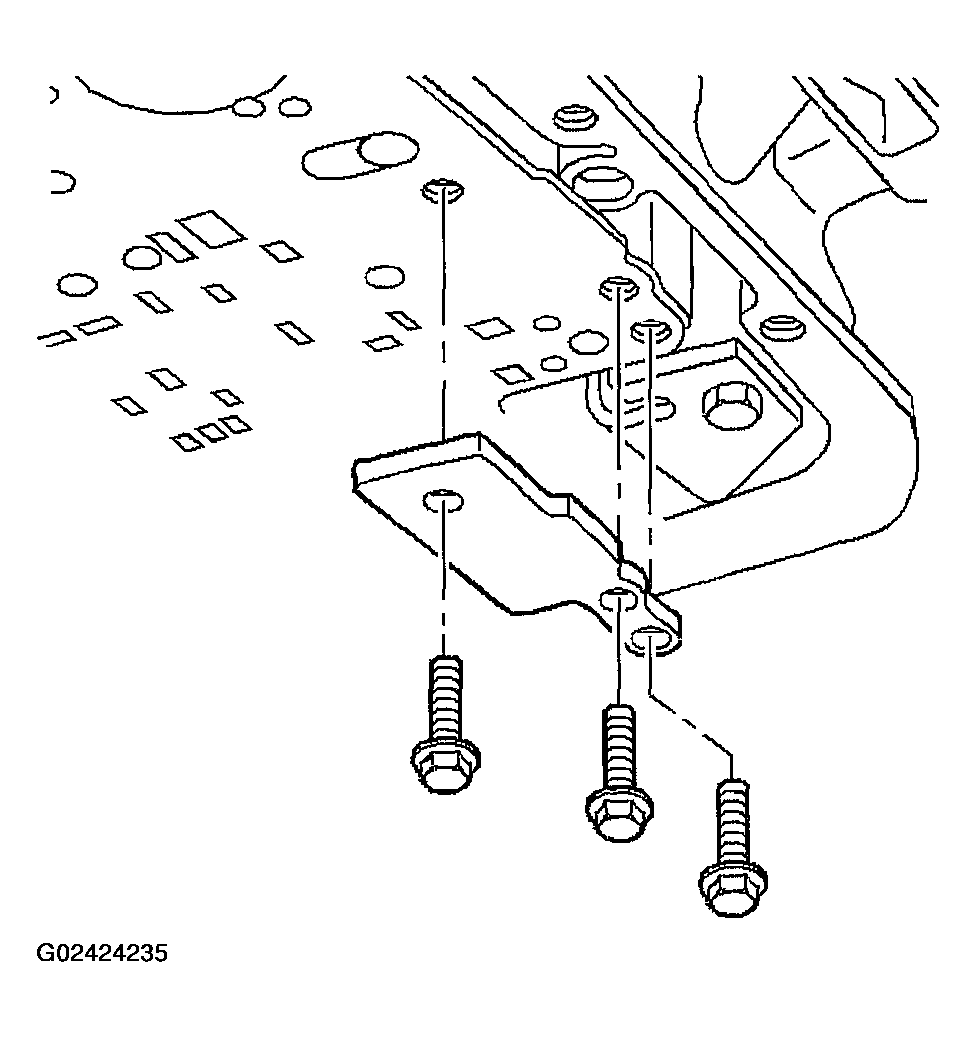

    Fig 6: Installing Spacer Plate Support & Retaining Bolts
    G02424235Courtesy of GENERAL MOTORS CORP.
  11. After installing the spacer plate support (2), look through the hole in the spacer plate to ensure that the check Ball (1) has remained in the proper location.

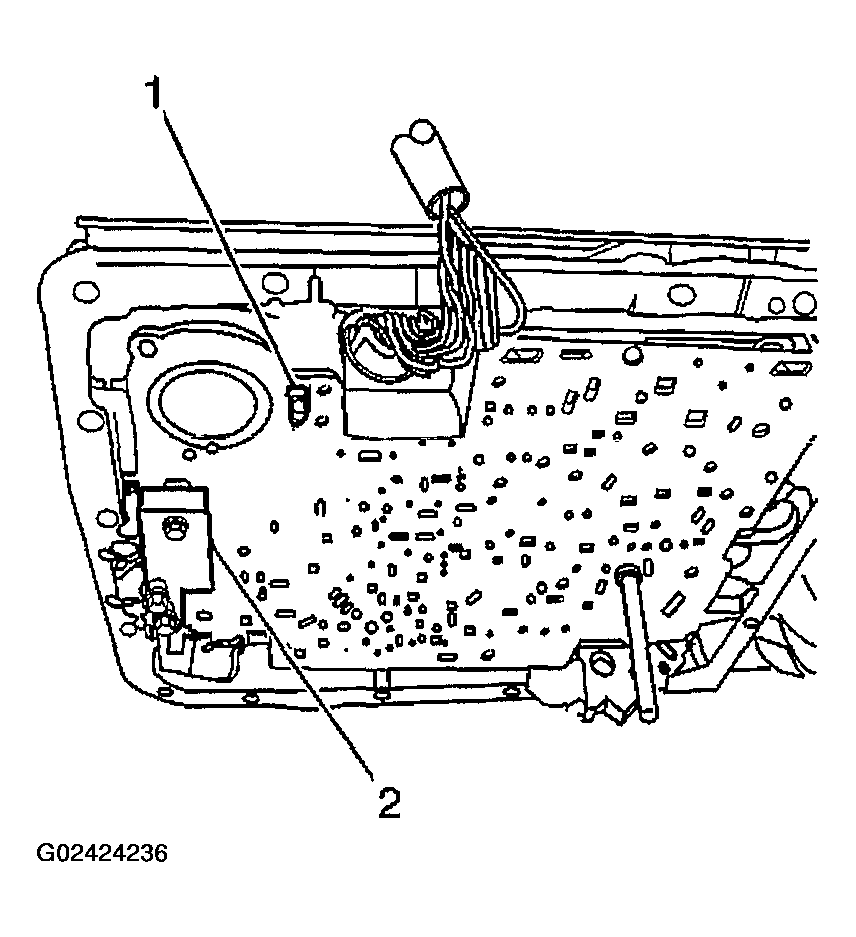

    Fig 7: Ensuring Proper Location Of Check Ball
    G02424236Courtesy of GENERAL MOTORS CORP.
  12. Install a new 1-2 accumulator piston seal (1) to the 1-2 accumulator piston.

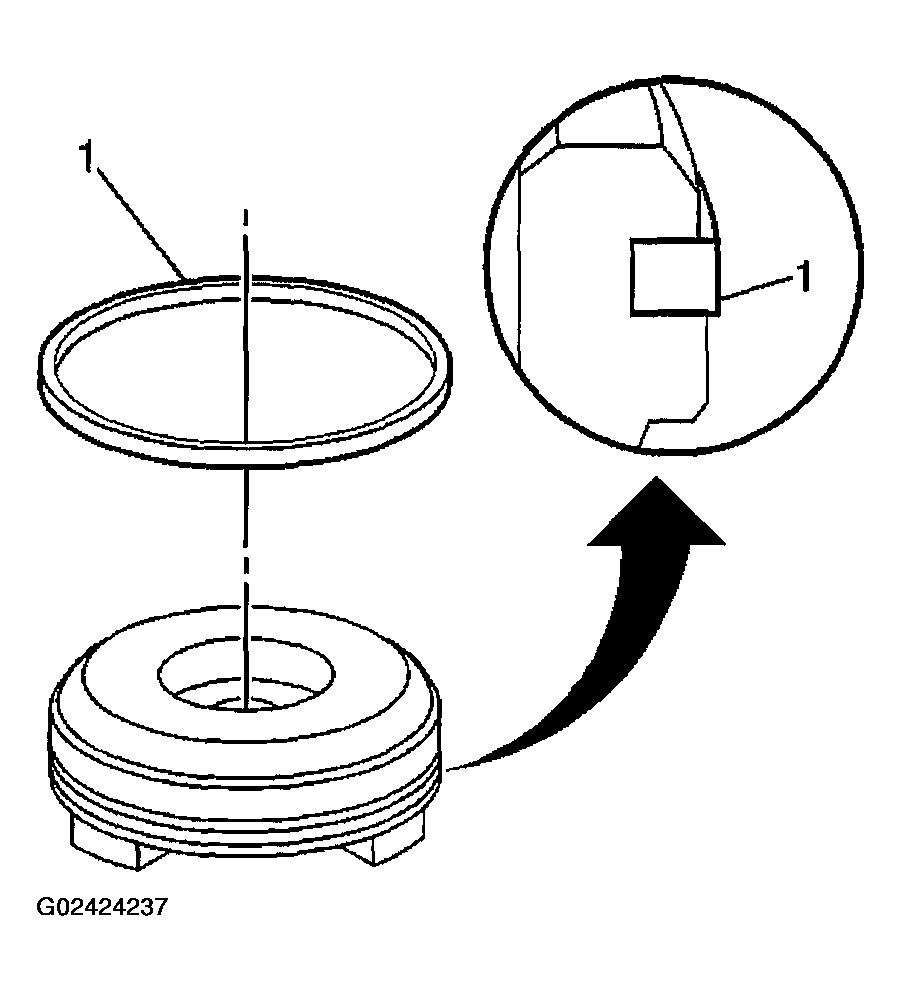

    Fig 8: Installing 1-2 Accumulator Piston Seal
    G02424237Courtesy of GENERAL MOTORS CORP.
  13. Install the 1-2 accumulator inner and outer springs to the 1-2 accumulator cover.
  14. Install the 1-2 accumulator piston onto the pin in the 1-2 accumulator cover.

    Ensure that the piston legs face the accumulator cover.

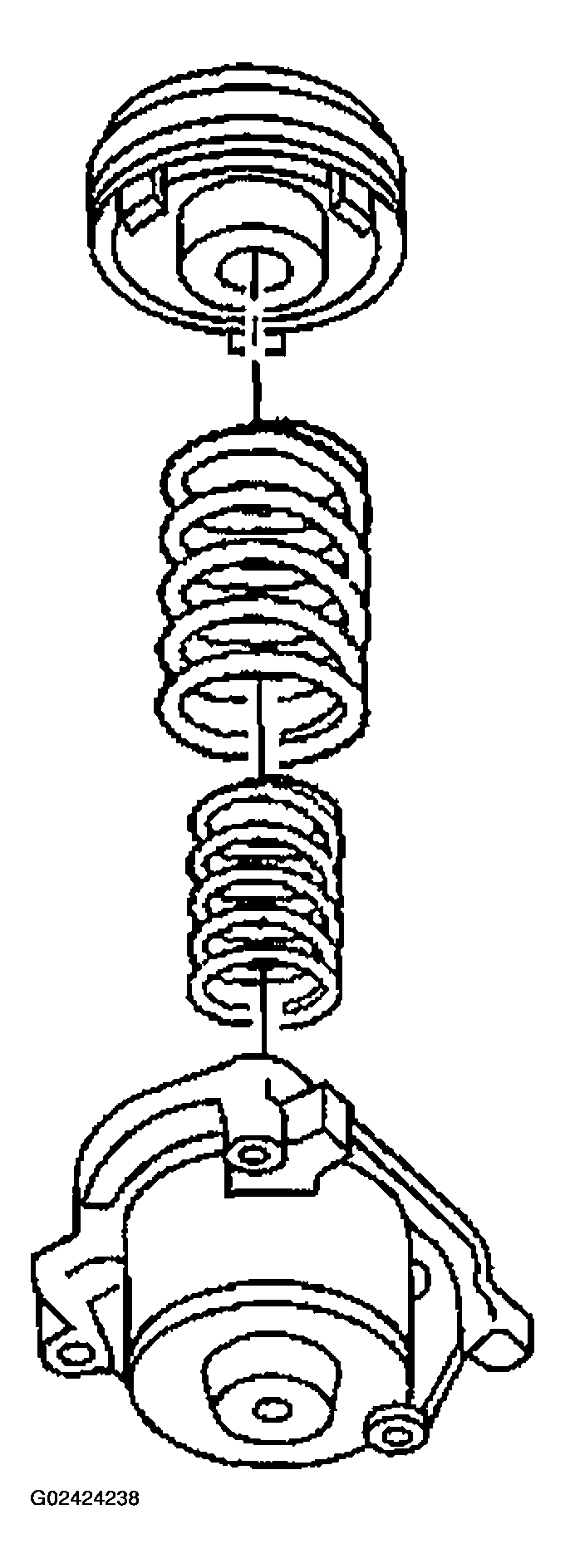

    Fig 9: Installing 1-2 Accumulator Inner Springs, Outer Springs & Piston
    G02424238Courtesy of GENERAL MOTORS CORP.
  15. Install the 1-2 accumulator cover and the accumulator cover retaining bolts.

    Tighten

    Tighten the accumulator cover retaining bolts to 11 N.m (97 lb in).

  16. Remove the J 25025-B  from the transmission case.
  17. Install the control valve body. Refer to Valve Body and Pressure Switch Replacement .
  18. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
  19. Lower the vehicle.
  20. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure .

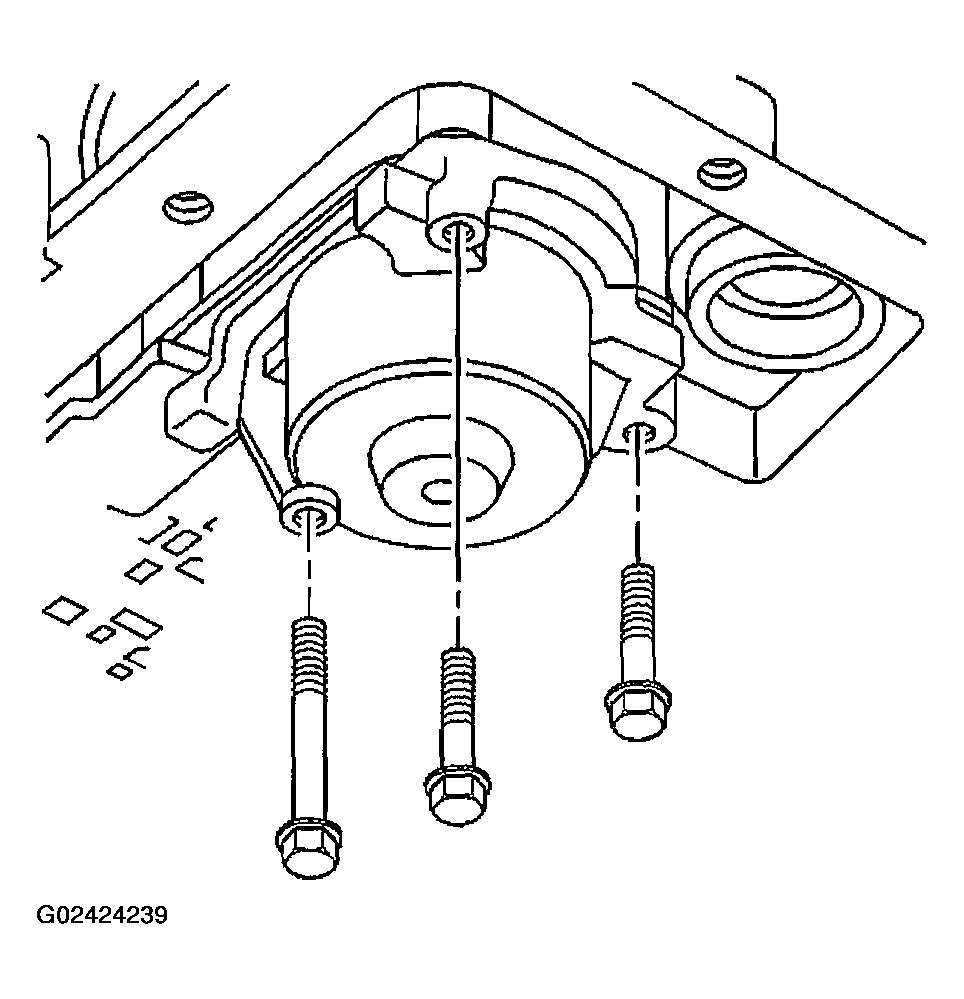

    Fig 10: Installing 1-2 Accumulator Cover & Retaining Bolts
    G02424239Courtesy of GENERAL MOTORS CORP.
