Tow/Haul Switch/Indicator Always On or Inoperative: Notes

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

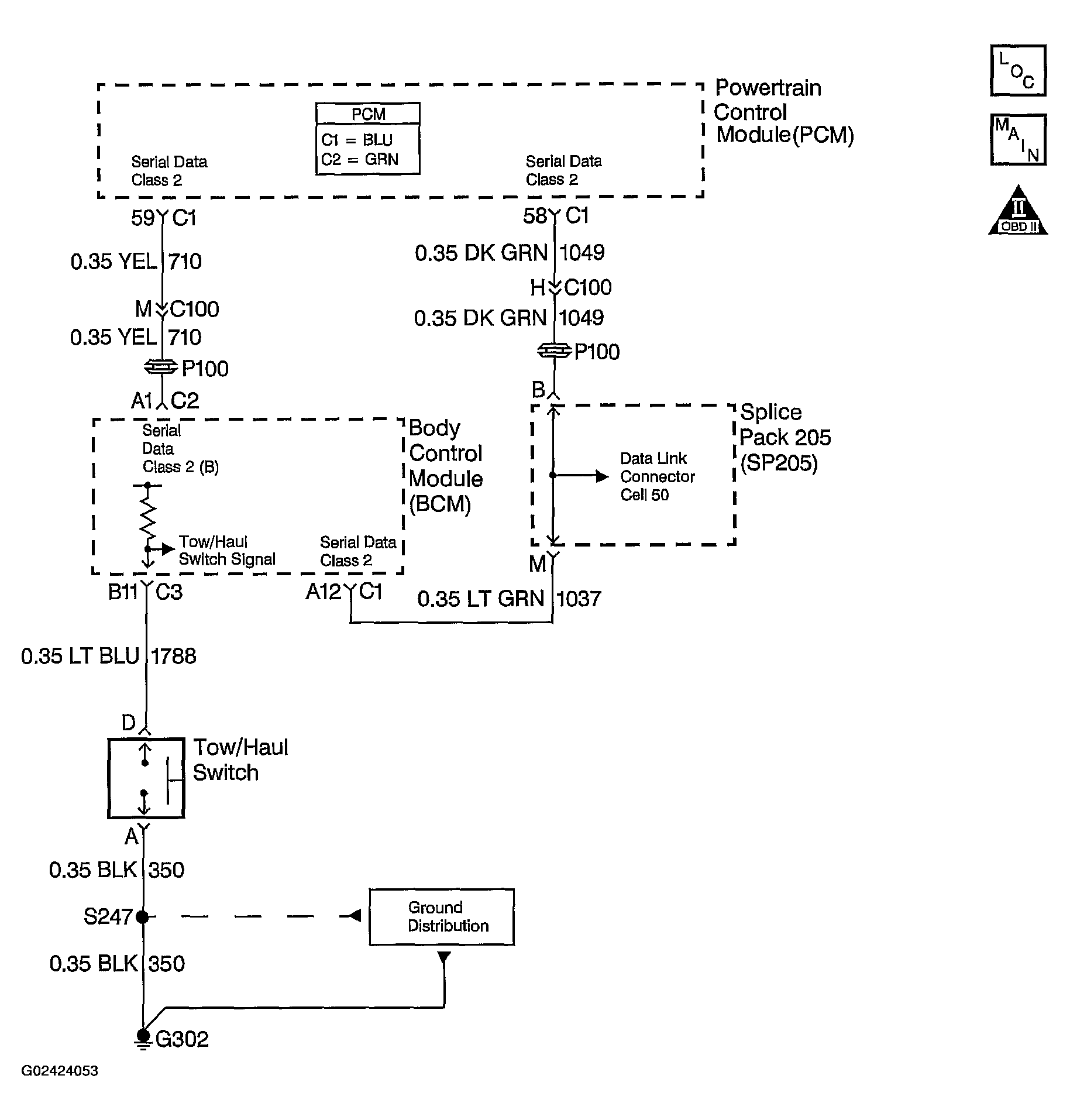

Fig 1: Tow/Haul Switch/Indicator Always On Or Inoperative Schematic
G02424053Courtesy of GENERAL MOTORS CORP.
