DTC P0753: Open, Short To Ground Or Short To Power In The 1-2 Ss Valve Circuit: Notes

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

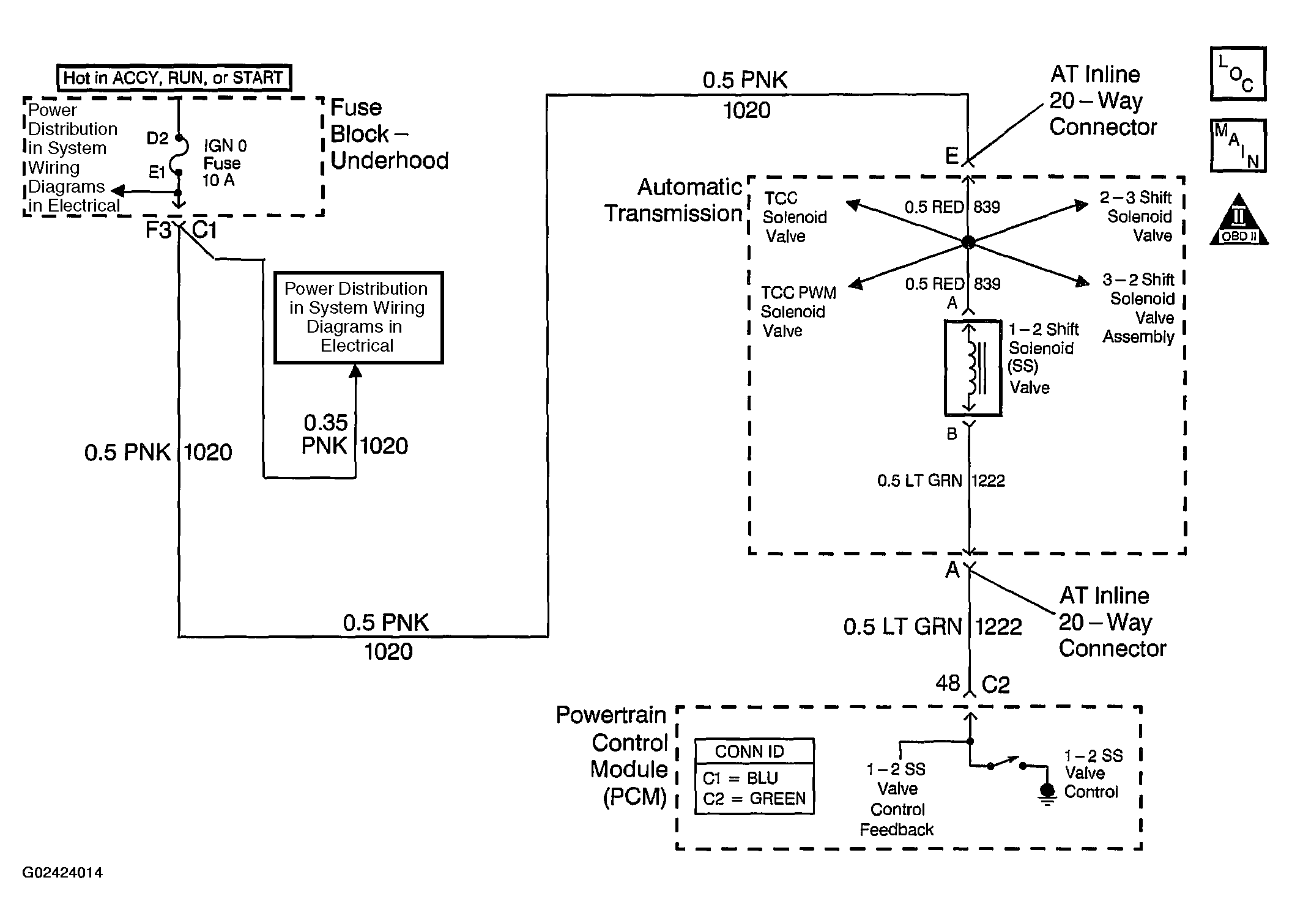

Fig 1: DTC P0753 Schematic
G02424014Courtesy of GENERAL MOTORS CORP.
