Test Description

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  This step isolates the brake switch as a source for setting the DTC.

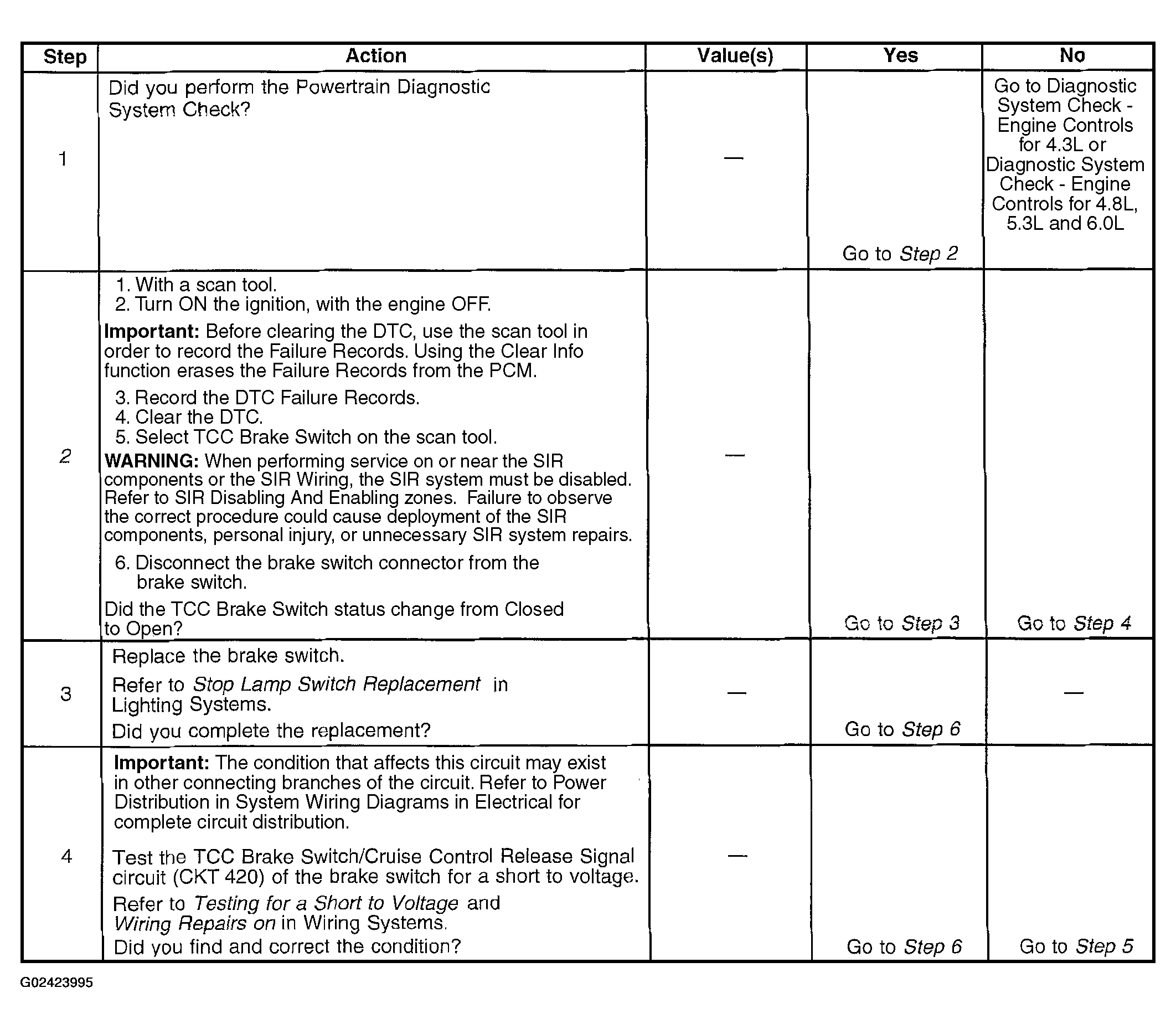

Fig 1: DTC P0724 (1 Of 2)
G02423995Courtesy of GENERAL MOTORS CORP.

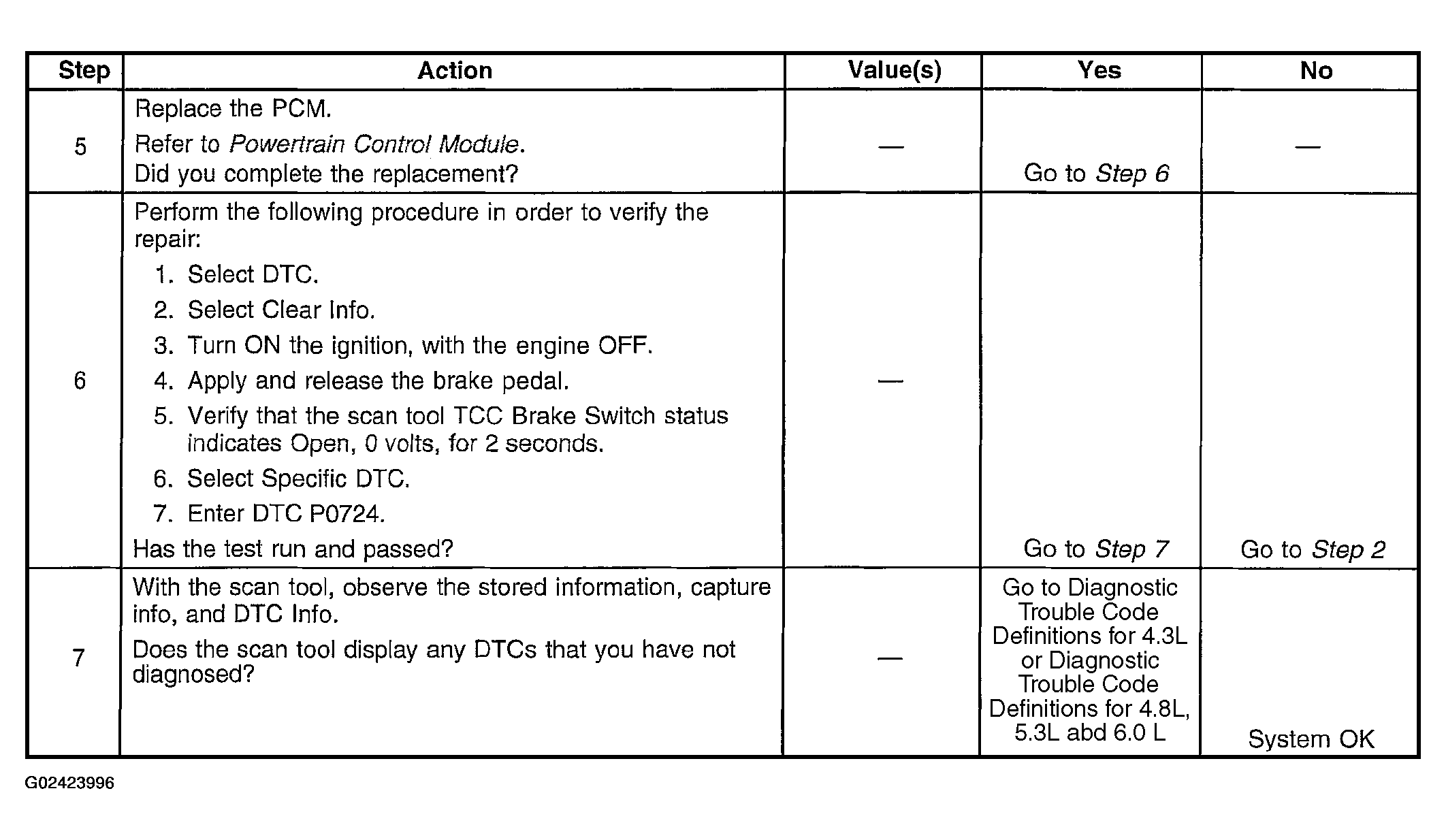

Fig 2: DTC P0724 (2 Of 2)
G02423996Courtesy of GENERAL MOTORS CORP.
