Determine Minimum Flow Rate
WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
- From the machine display, identify the temperature of the automatic transmission fluid that is stored in the supply vessel of J 45096.

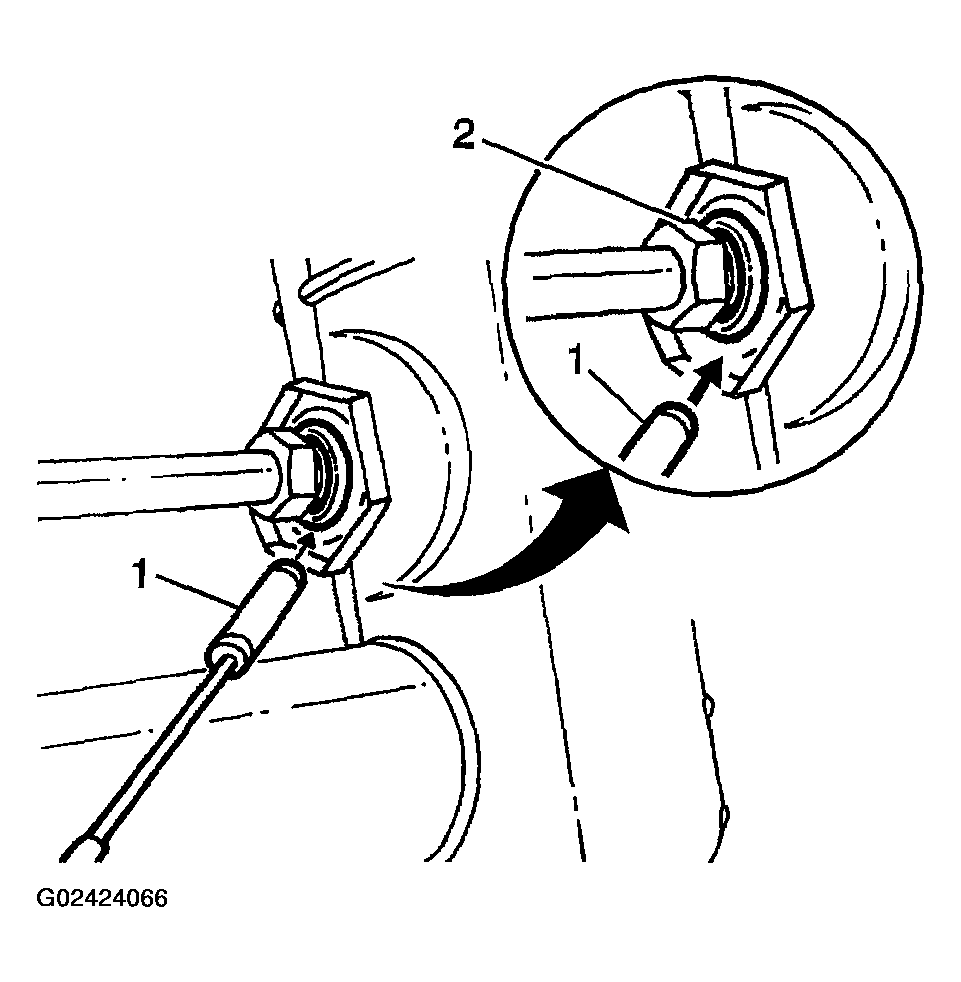

- Determine whether the transmission oil cooler is steel or aluminum by using a magnet (1) at the cooler flange (2) at the radiator.
- Refer to the table below. Using the temperature from step 1, locate on either the Steel MINIMUM Flow Rate table or the Aluminum MINIMUM Flow Rate table the minimum flow rate in gallons per minutes (GPM). Record the minimum flow rate in GPMs and the supply fluid temperature for further reference.
Example:
- Fluid temperature: 75 °F
- Cooler type: Steel
The MINIMUM flow rate for this example would be 0.8 GPM.
- Inspect transmission oil cooler lines for damage or kinks that could cause restricted oil flow. Repair as needed and refer to the appropriate GM service manual procedures.
Minimum Flow Rate in Gallon Per Minute (GPM)
| Temperature Range | Steel | Aluminum |
|---|---|---|
| 65 to 66°F | 0.6 gpm | 0.5 gpm |
| 67 to 70°F | 0.7 gpm | 0.6 gpm |
| 71 to 75°F | 0.8 gpm | 0.7 gpm |
| 76 to 80°F | 0.9 gpm | 0.8 gpm |
| 81 to 84°F | 1.0 gpm | 0.9 gpm |
| 85 to 89°F | 1.1 gpm | 1.0 gpm |
| 90 to 94°F | 1.2 gpm | 1.1 gpm |
| 95 to 98°F | 1.3 gpm | 1.2 gpm |
| 99 to 103°F | 1.4 gpm | 1.3 gpm |
| 104 to 108°F | 1.5 gpm | 1.4 gpm |
| 109 to 112°F | 1.6 gpm | 1.5 gpm |
| 113 to 117°F | 1.7 gpm | 1.6 gpm |
| 118 to 120°F | 1.8 gpm | 1.7 gpm |
