Disassembled Views

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

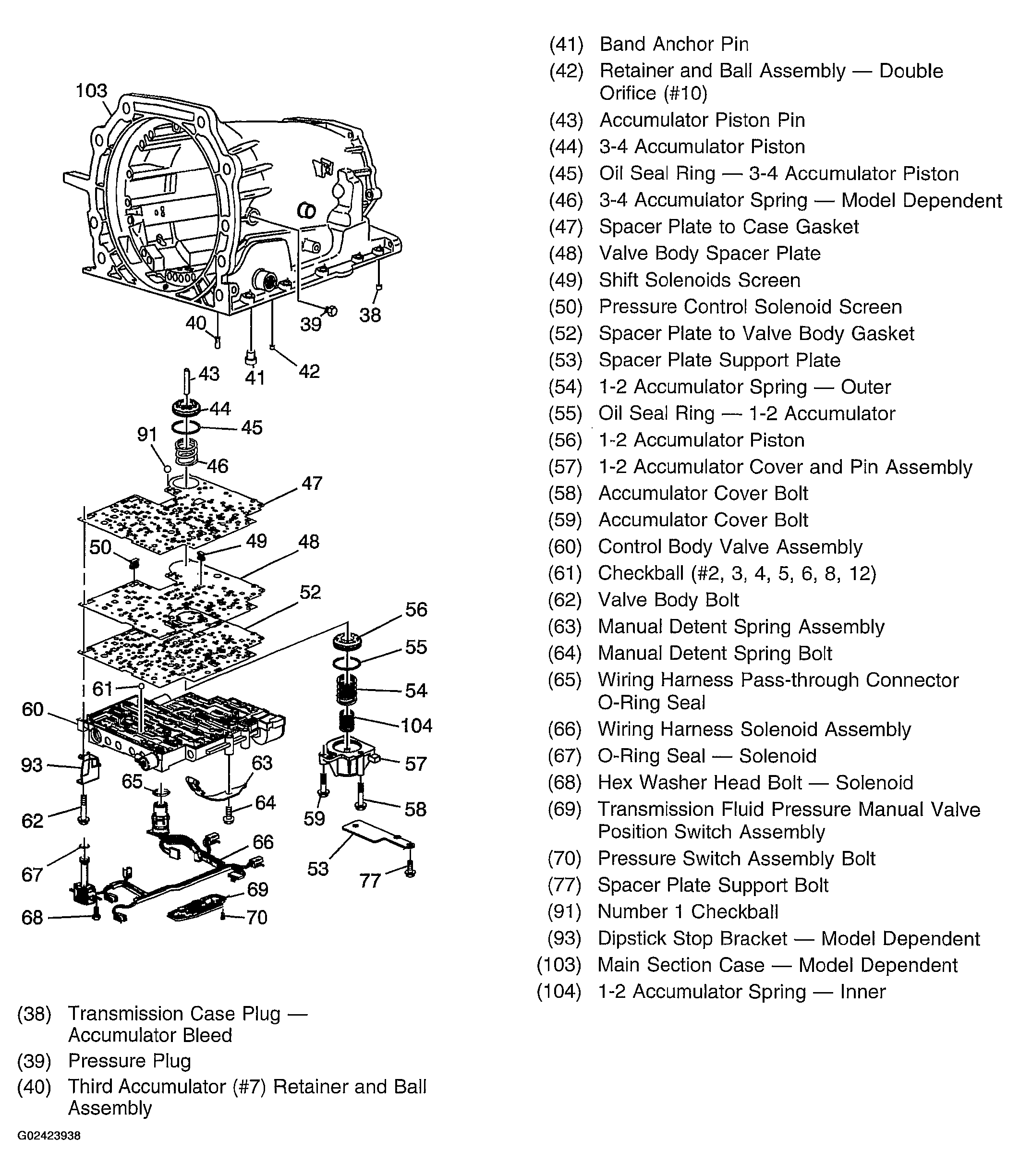

Fig 1: Case & Associated Parts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

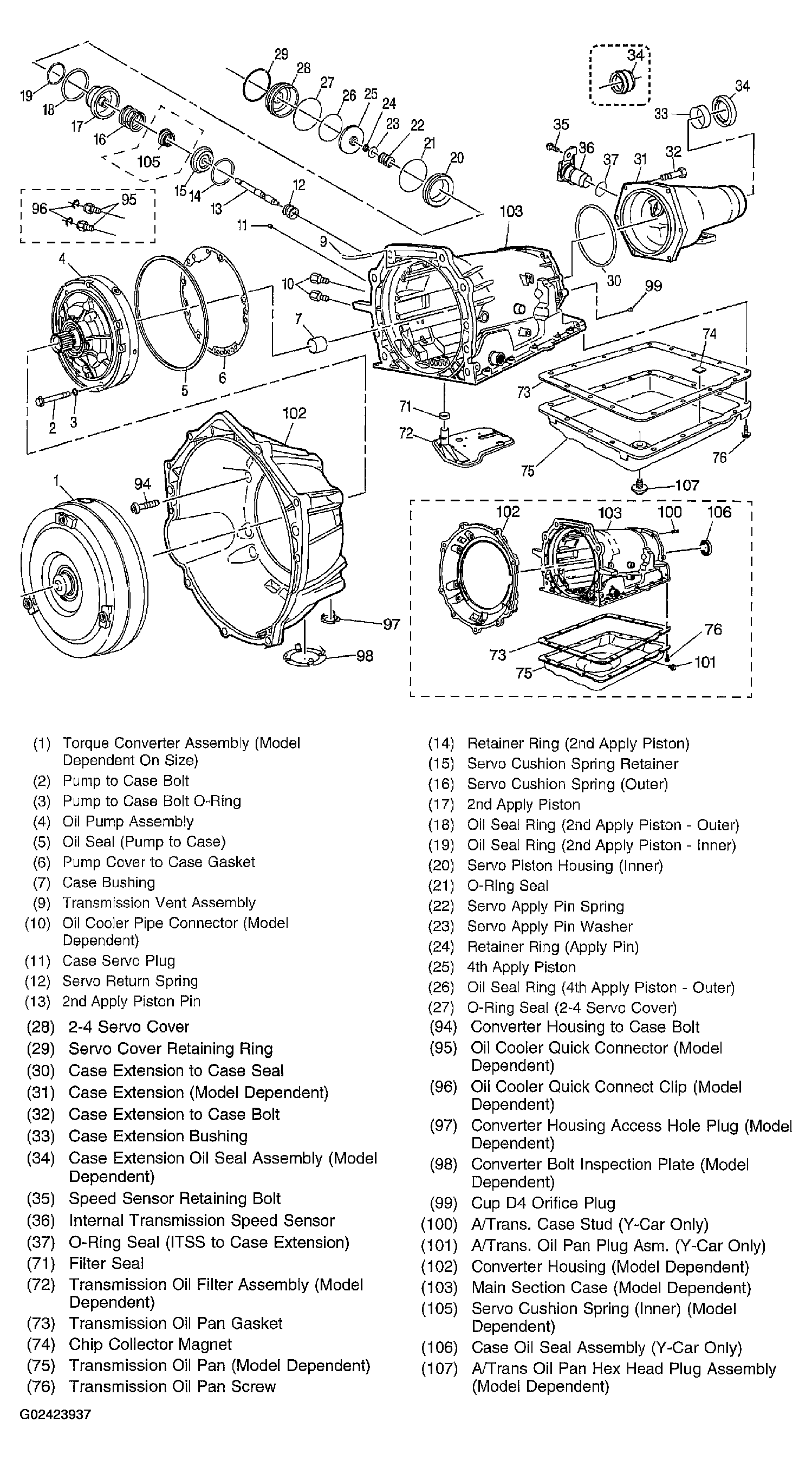

Fig 2: Case & Associated Parts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

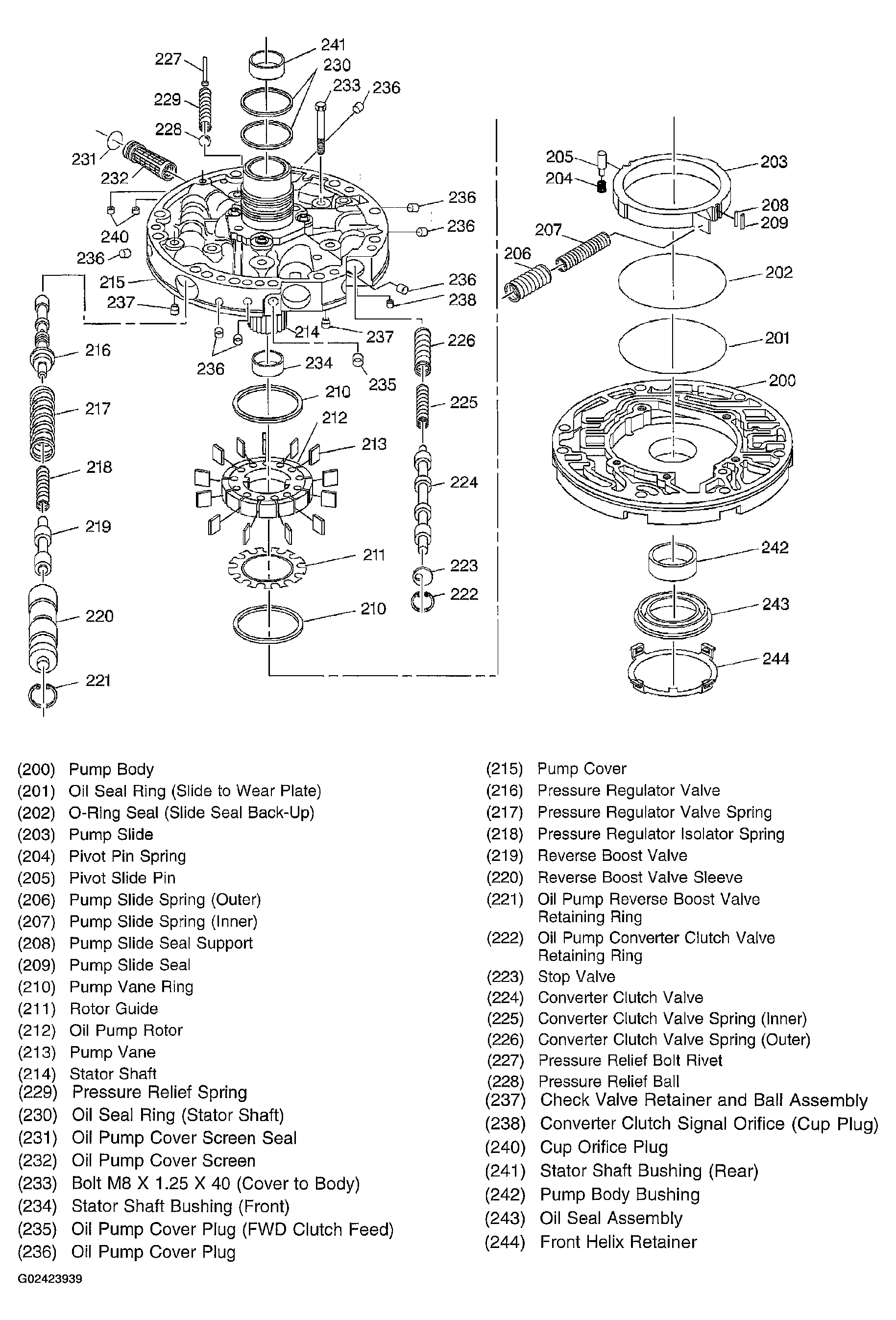

Fig 3: Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

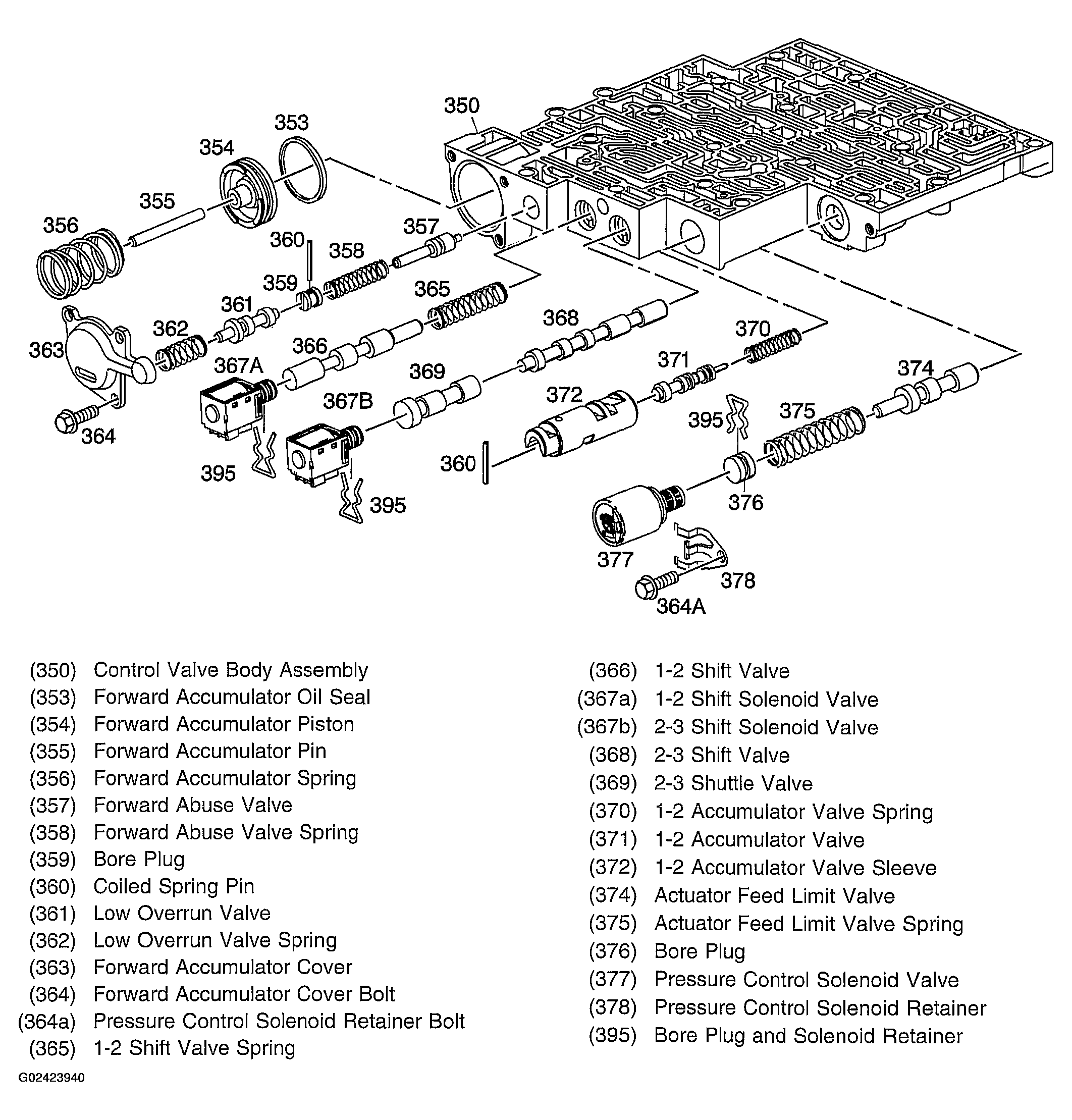

Fig 4: Control Valve Body Assembly (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

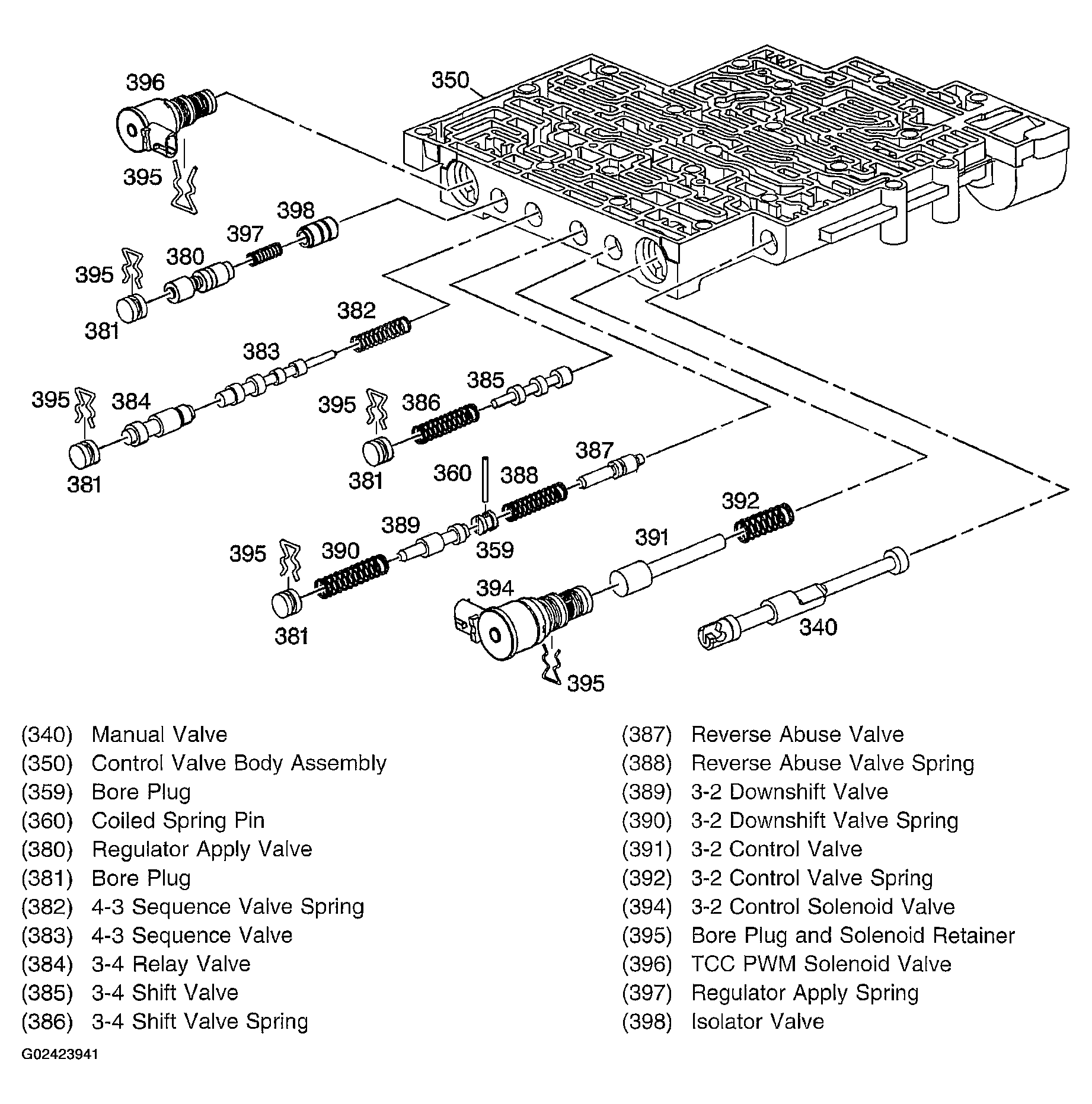

Fig 5: Control Valve Body Assembly (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

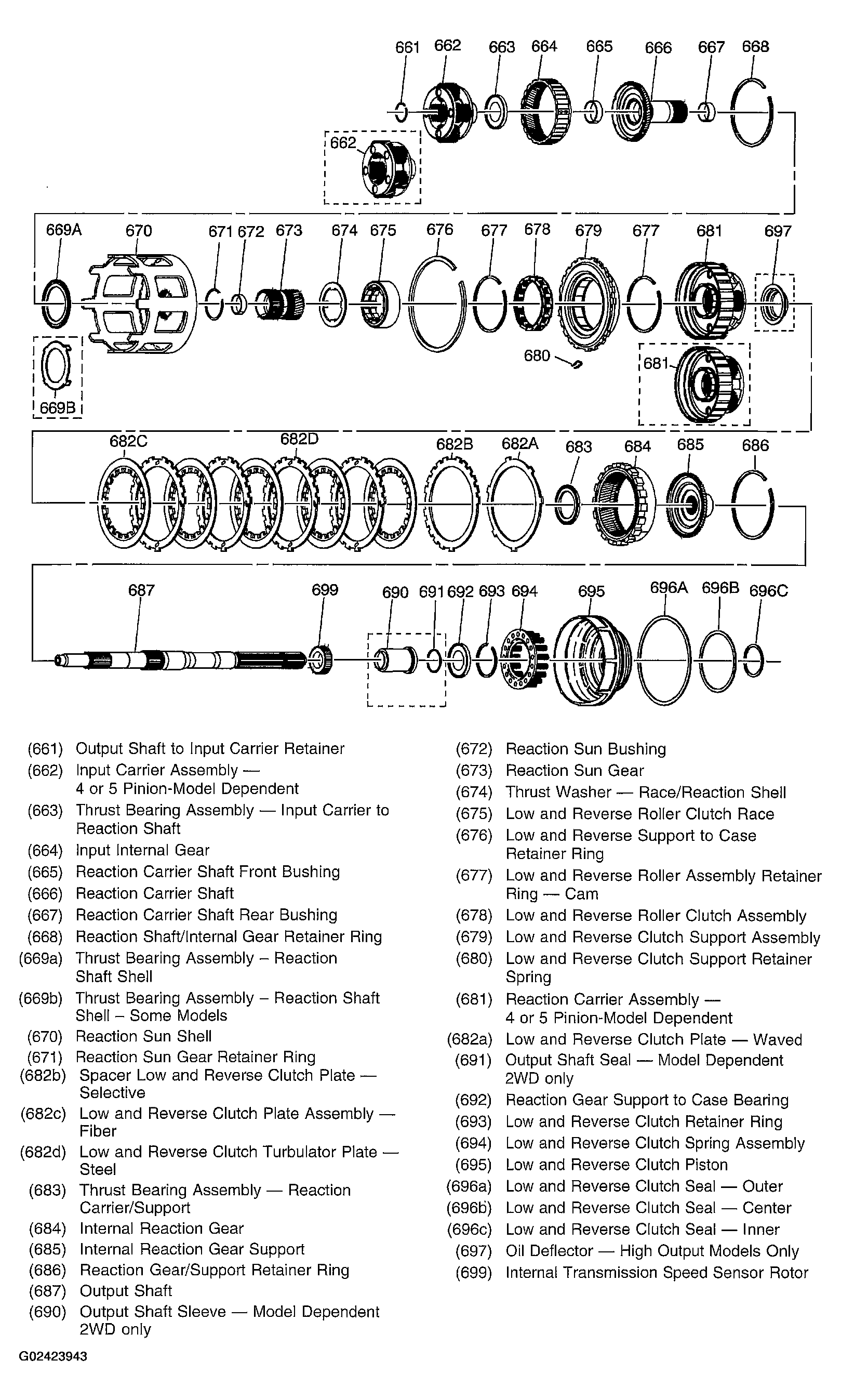

Fig 6: Internal Parts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

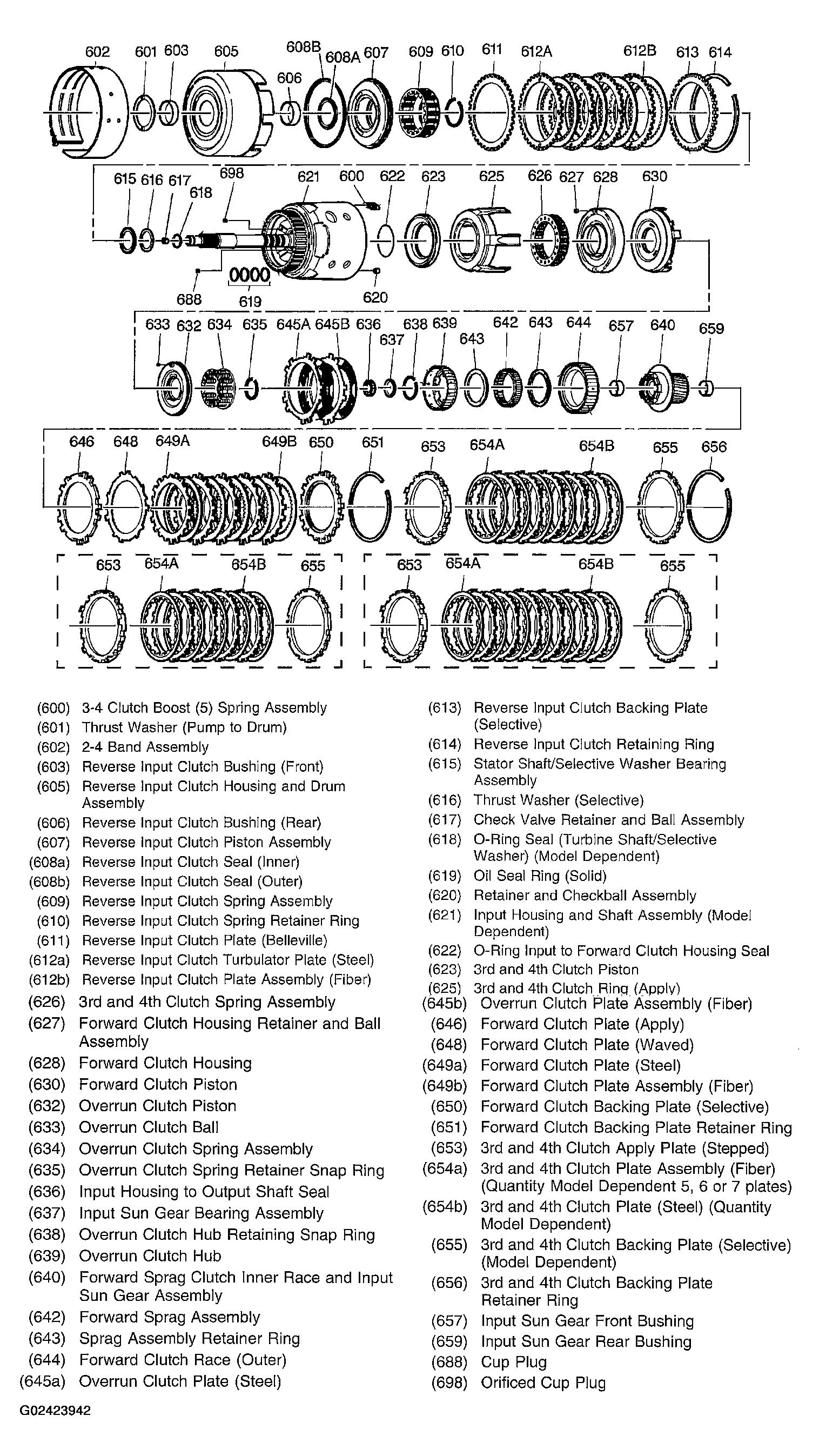

Fig 7: Internal Parts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

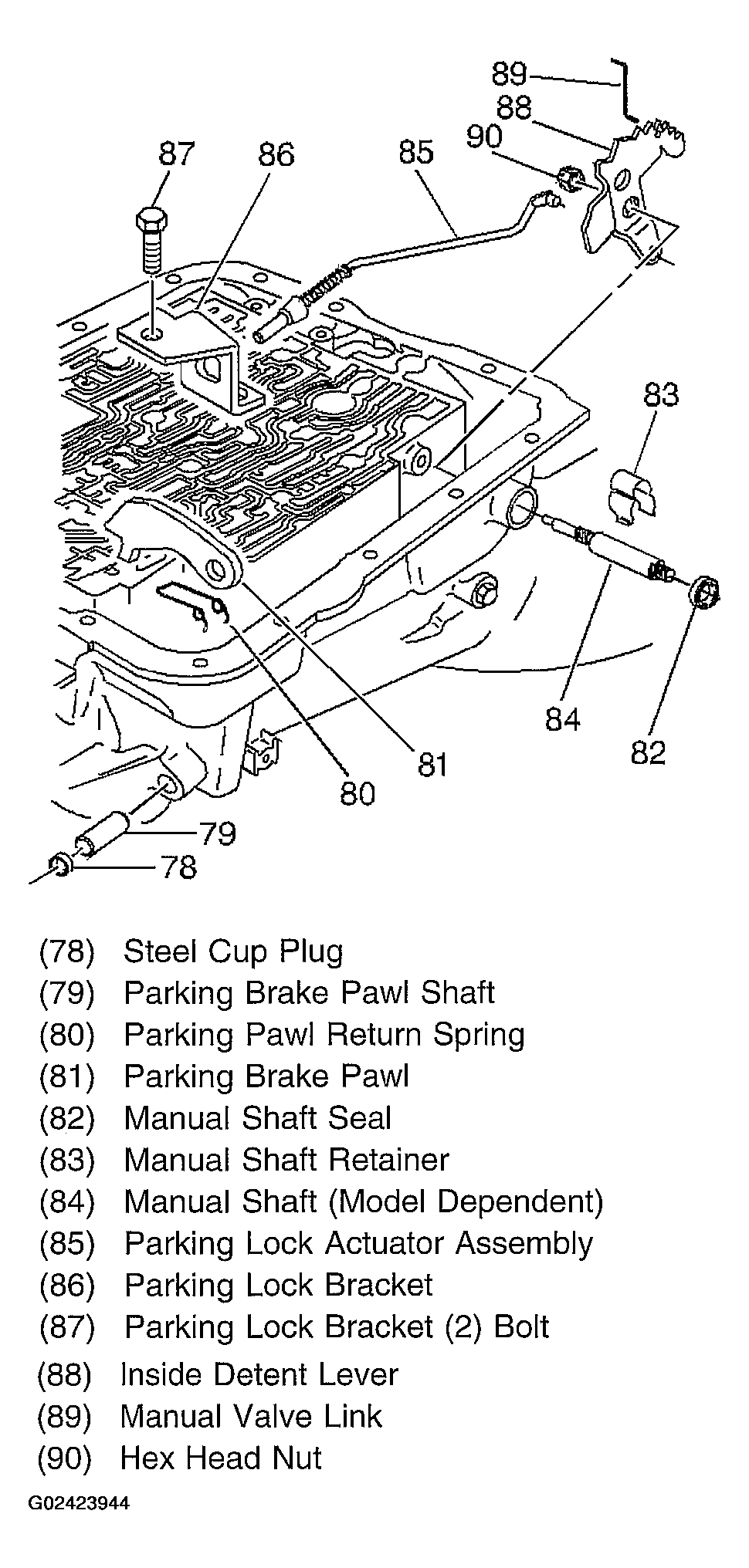

Fig 8: Parking Lock & Manual Shift Shaft Assembly

Courtesy of GENERAL MOTORS CORP.
