Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 6. The module which was not communicating on the class 2 serial data circuit may have set Loss of Communication DTCs for those modules that it was monitoring.

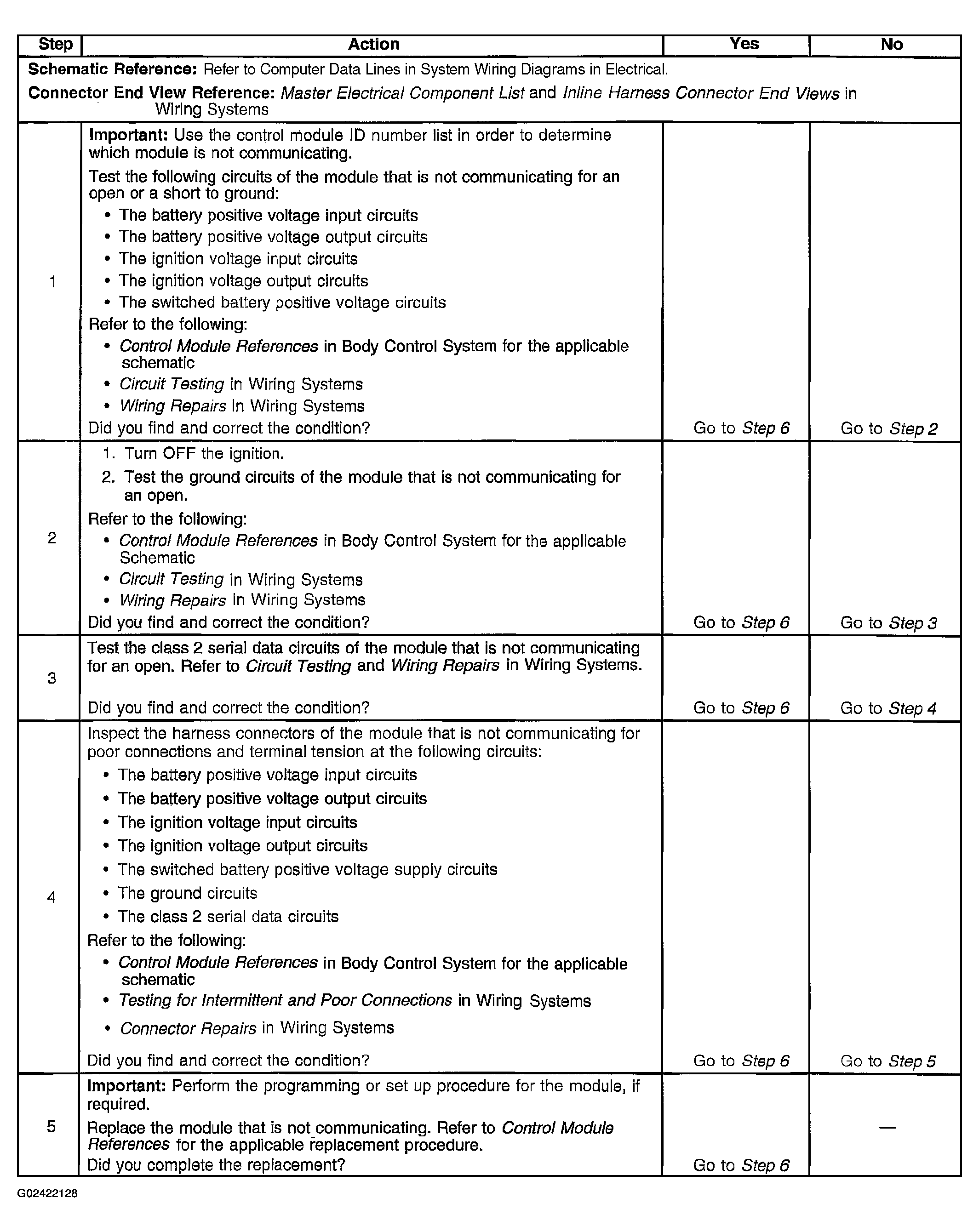

Fig 1: DTC U1001-U1254 (1 Of 2)
G02422128Courtesy of GENERAL MOTORS CORP.

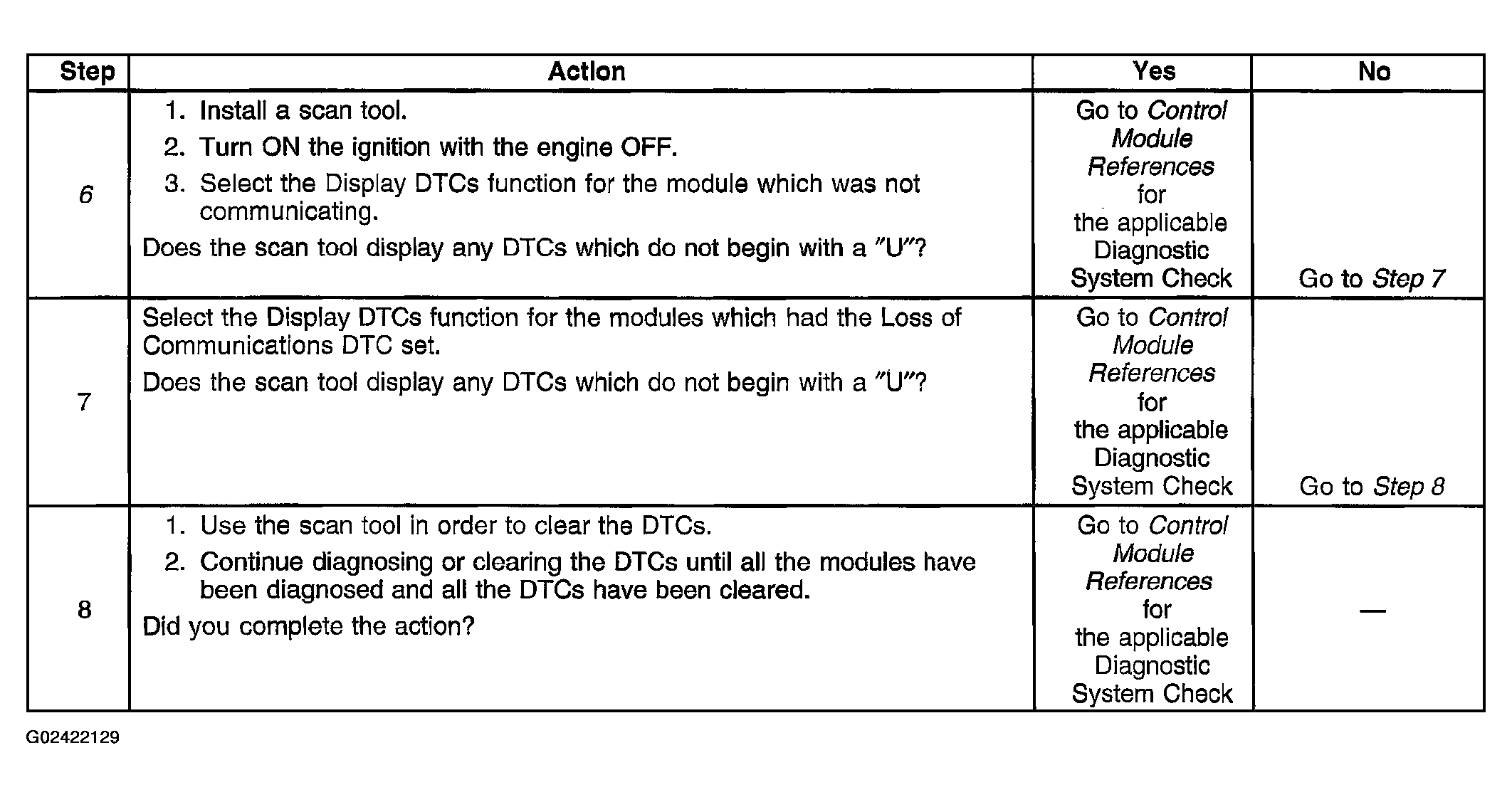

Fig 2: DTC U1001-U1254 (2 Of 2)
G02422129Courtesy of GENERAL MOTORS CORP.
